Name: Optical Device 10CH CCWDM DEMUX MUX Compact CWDM Data Multiplexer
Brand: Guangdong Huajiayu Technology Co., Ltd
SKU: HJY-CCWDM-18CH
Price: Negotiable USD
Availability: InStock

Home > products > CCWDM MUX >

Optical Device 10CH CCWDM DEMUX MUX Compact CWDM Data Multiplexer

Optical Device DEMUX MUX

10CH DEMUX MUX

Compact CWDM data multiplexers

Place of Origin:

China

Brand Name:

HJY

Certification:

CE, ROHS, FCC ISO9001

Model Number:

HJY-CCWDM-18CH

Request A Quote

Optical Device 10CH CCWDM DEMUX MUX Compact CWDM Data Multiplexer

Product Details

Number Of Channels:

4/8/16/18/20

Polarization Dependent Loss:

<0.3dB

Return Loss:

>45dB

Insertion Loss:

<2.0dB

Directivity:

>50dB

Size:

55x45x6

Passband Ripple:

<0.3dB

Wavelength Range:

1270-1610nm

Highlight:

Optical Device DEMUX MUX

10CH DEMUX MUX

Compact CWDM data multiplexers

Payment & Shipping Terms

Minimum Order Quantity

10 pcs

Price

1~999

Packaging Details

Roll, Neutrial Packing or with OEM LOGO

Delivery Time

5~8 working days

Payment Terms

T/T, Western Union, L/C

Supply Ability

100,000 pcs

UPC Optical Network Fiber Optic Mux 18CH Compact CCWDM CWDM Mux Demux Multiplexer

Get Best Price

55mm Optical CCWDM MUX Module 4 ~ 8CH Compact Box Type CWDM Multiplexer

Get Best Price

High Lsolation DEMUX Module 4CH Compact CWDM MUX CCWDM Multiplexer For Network Performance

Get Best Price

High Density CCWDM MUX CWDM Multiplexer 10 Channel To 18CH CCWDM

Get Best Price

8613556217949

francesgdut@gmail.com

Contact Now

Product Description

Superior Optical Device 10~18CH CCWDM MUX DEMUX Compact Box Type CWDM Multiplexer for High Bandwidth Network Requirements

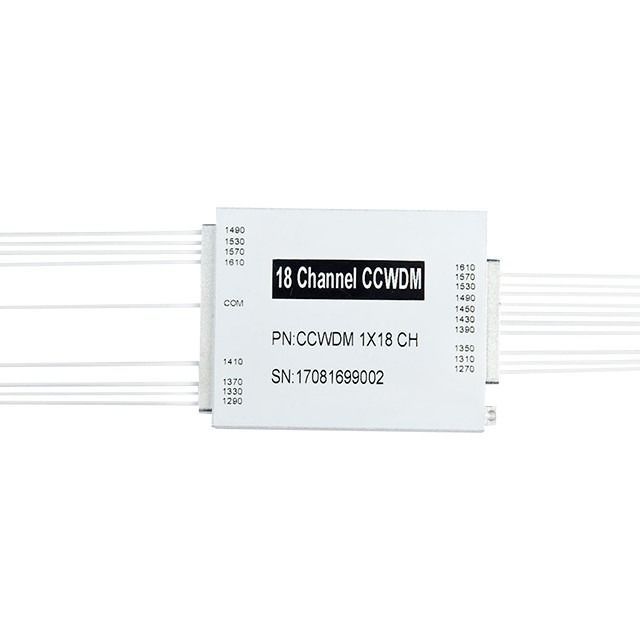

Compact coarse wavelength division multiplexers (CCWDM Mux) is the mini version of CWDM Mux. Compared with traditional CWDM technology, CCWDM technology uses free-space optics platform which can significantly improve optical performance, in a package less than 1/4 the size of conventional CWDM modules. Main advantages of CCWDM Mux are high wavelength accuracy and stability, low insertion loss, high isolation and low PDL(polarization dependent loss). It's protocol and rates transparent supporting such applications as the CWDM system, PON networks, and CATV Links.

HJY offers a compact CWDM module that provides bandwidth capacity expansion for future network growth in one of the small packages. Its compact size and unique carrier tray set it apart, and can be installed in a variety of field situations.

The compact CWDM is ultra low loss, super thermal stability, and excellent reliability, with smaller size compact design to save much space in the application. Applicable to CWDM system and optional special service

Unique Free-Space Technology

The CCWDM Mux adopts Free-Space technology, which uses light propagating in free space to wirelessly transmit data. Inside the device, adjacent signal channels are cascaded by parallel beam instead of the fiber. This saves a lot of space for package box, and the unique workmanship also helps CCWDM Mux Demux with low insertion loss.

Comparison between CCWDM and CWDM

Insertion Loss <2.6 dB

The insertion loss of CCWDM Mux is about half of the conventional CWDM Mux. This reduces the overall loss of the whole link, and leaves more choices for the design of the solution.

Compact Package Design

CCWDM Mux uses the parallel beam for cascading instead of the fiber, which saves significant space. The minimum dimension of CCWDM aluminum box module is less than the 1/4 size of minimum CWDM ABS pigtailed module.

Features	Applications
· Low Insertion Loss · Compact size · Ultra Stable and Highly Reliable · Extended Operating Temperature Available	· Optical Add/Drop Multiplexing · Telecom networks · Metro networks · Broadband Networks

Performance Specifications

Parameter		10Ch	12Ch	14Ch	16Ch	18Ch
Operating Wavelength (nm)		1260~1620
Channel Wavelength (nm)		1270,1290,...,1590,1610, or 1271,1291,...,1591,1611
Channel Spacing(nm)		20
Channel Passband (nm)		CWL+/-6.5nm
Insertion Loss(dB)*		≤2.2	≤2.2	≤2.2	≤2.2	≤2.2
Channel Ripple(dB)		≤0.4
Isolation(dB)	Adjacent	>30
	Non-adjacent	>40
Polarization Mode Dispersion(PS)		≤0.2
Polarization Dependent Loss(dB)		≤0.2
Directivity(dB)		>45
Return Loss(dB)		>45
Maximum Power Handling(mW)		500
Operating Temperature(℃)		-5~+70
Storage Temperature(℃)		-40~85
Fiber Type		G657A1
Connector		TBD
Package dimension(mm)		L55 x W35 x H8 or L55 x W45 x H8

*Above specification are for device without connector.

Order Information

Configuration	Channel No.	Pigtail Type	Fiber length	Declension(mm)	Connector
CC=CCWDM	10=10 Channel 12=12 Channel ……	0=250um 1=900um	0=0.5m 1=1m 2=1.5m 3=others	1= L55 x W35 xH8 2=L55 x W45 x H8	0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=others
