Place of Origin:
China
Brand Name:
HJY
Certification:
CE, ROHS, FCC
Model Number:
HJY-CWDM-ABS-2CH
|
Parameter
|

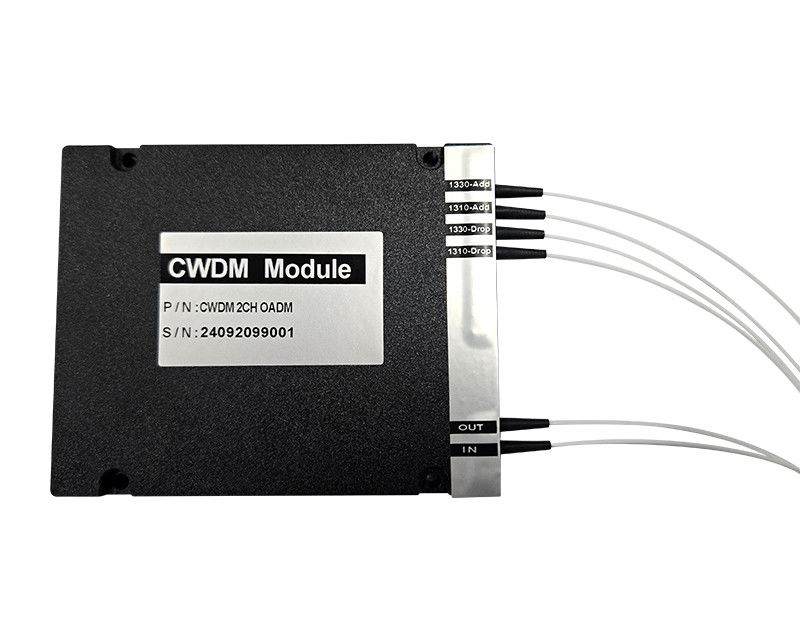

2 Channel Add/Drop
|
|
|
Channel Wavelength (nm)
|
ITU CWDM Grid(1270/1290)
|
|
|
Center wavelength Accuracy (nm)
|
±6.5
|
|
|
Channel Spacing (nm)
|
20
|
|
|
Insertion Loss
|
≤.1.2(with Connector)
|
|
|
Channel Ripple (dB)
|
≤0.3
|
|
|
Isolation (dB)
|
Adjacent
|
>30
|
|
Non-adjacent
|
>40
|
|
|
Polarization Dependent Loss (dB)
|
<0.15
|
|
|
Polarization Mode Dispersion
|
<0.1
|
|
|
Directivity (dB)
|
>50
|
|
|
Return Loss (dB)
|
>45
|
|
|
Maximum Power Handling (mW)
|
500
|
|
|
Opterating Temperature (℃)
|
-20~+70
|
|
|
Storage Temperature (℃)
|
-40~85
|
|
|
Parameters
|
Values
|
|
|
Packaging Dimension
|
ABS 100*80*10MM Add/drop
|
|
|
Fiber Type
|
SM28e-G652D
|
|
|
Connector
|
LC/UPC
|
|
|
No
|
Wavelength(nm)
|
IL(dB) Max (Drop)
|
IL(dB) Max. (Add)
|
|
1
|
1270
|
0.8
|
1.0
|
|
2
|
1290
|
1.0
|
0.8
|
|
3
|
IN-OUT
|
1.2
|
|
Notes:
1) HJY Support Customized Design, please contact us by email sales@huajiayu.com
2) If you want to order, please email us and tell us how many waves and which waves do you
Order information
|
CWDM
|
CH
|
Configuration
|
Module type
|
Cable type
|
Fiber length
|
connector
|
|
OADM
|
01~18CH
|
SS
SD DS DD |
ABS
LGX 1U |
09=900um
loose tube 20=2.0mm 30=3.0mm |
0.1,1,2
|
LC/UPC
etc. |
