Name: 4 To 8 Channel CCWDM CWDM Mux Demux Fiber Optic Multiplexers For Telecom
Brand: Guangdong Huajiayu Technology Co., Ltd
SKU: HJY-CCWDM-4~8CH-Module
Price: Negotiable USD
Availability: InStock

Home > products > CCWDM MUX >

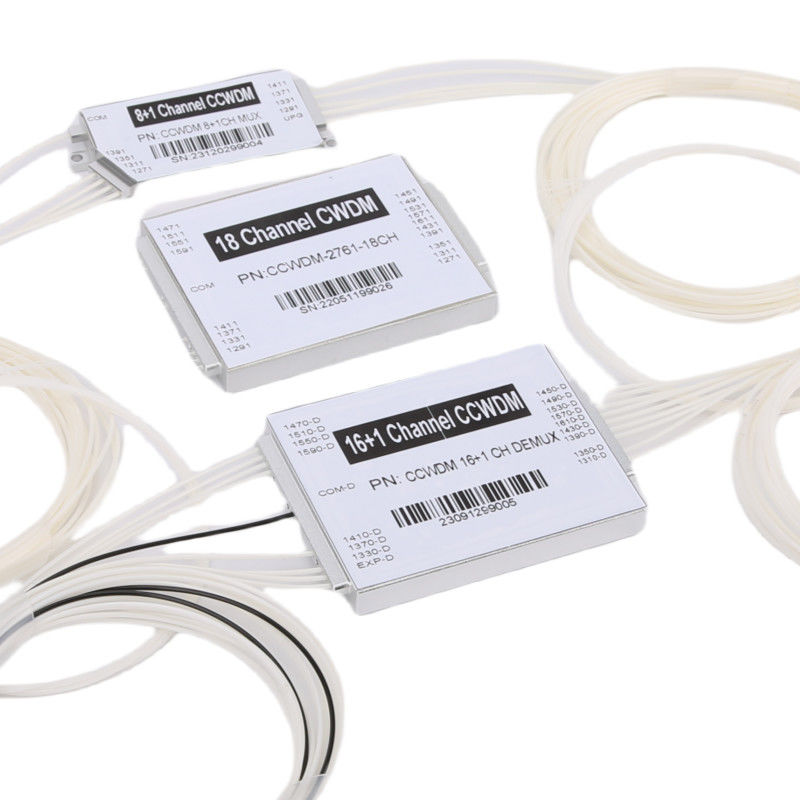

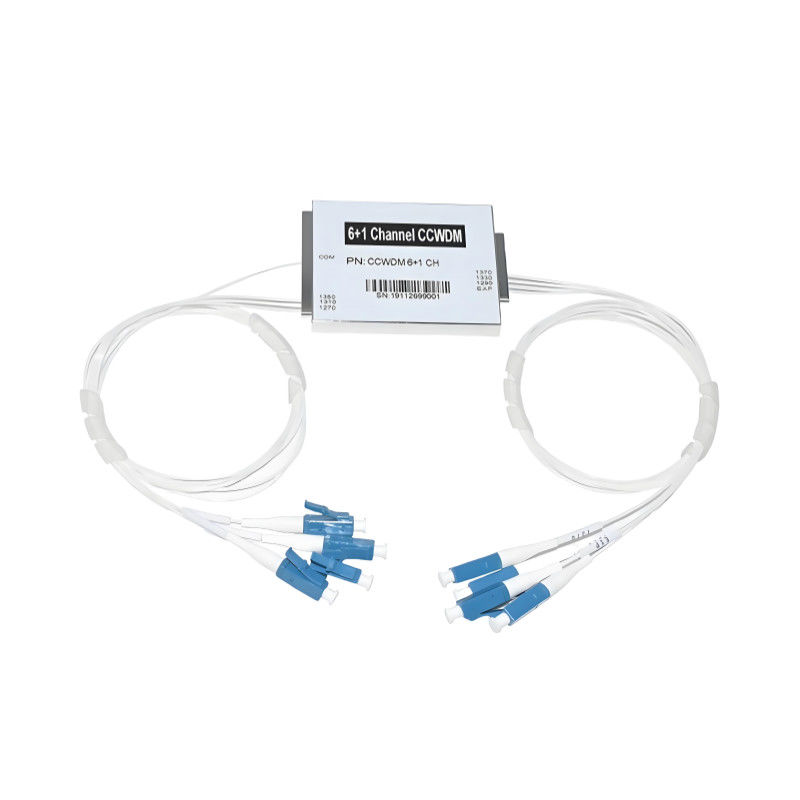

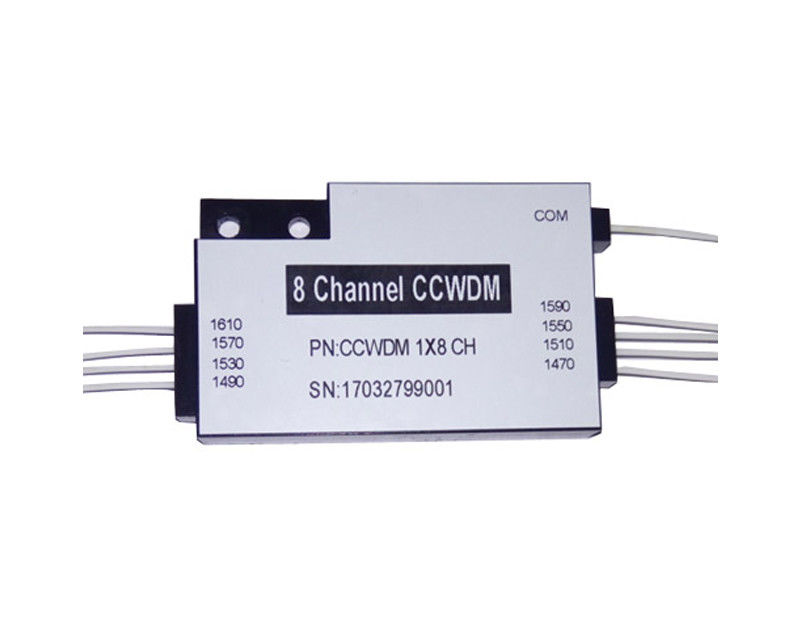

4 To 8 Channel CCWDM CWDM Mux Demux Fiber Optic Multiplexers For Telecom

4 Channel fiber optic multiplexers

8 Channel Demux Module

cwdm mux demux For Telecom

Place of Origin:

China

Brand Name:

HJY

Certification:

CE, ROHS, FCC

Model Number:

HJY-CCWDM-4~8CH-Module

Request A Quote

4 To 8 Channel CCWDM CWDM Mux Demux Fiber Optic Multiplexers For Telecom

Product Details

Item:

Compact Coarse Wavelength Division Multiplexers

Abbreviation:

CCWDM Mux

Size:

Less Than 1/4 The Size Of Conventional CWDM Modules

Advantages:

High Wavelength Accuracy And Stability,low Insertion Loss,high Isolation,low PDL(polarization Dependent Loss)

Applications:

CWDM System,PON Networks,CATV Links

Wavelength Range:

1270-1610nm

Highlight:

4 Channel fiber optic multiplexers

8 Channel Demux Module

cwdm mux demux For Telecom

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

Please find sales@huajiayu.com

Packaging Details

Neutrial Standard Packing

Delivery Time

3~7 working days

Payment Terms

L/C, T/T, Western Union

Supply Ability

10000000pcs/month

UPC Optical Network Fiber Optic Mux 18CH Compact CCWDM CWDM Mux Demux Multiplexer

Get Best Price

55mm Optical CCWDM MUX Module 4 ~ 8CH Compact Box Type CWDM Multiplexer

Get Best Price

High Lsolation DEMUX Module 4CH Compact CWDM MUX CCWDM Multiplexer For Network Performance

Get Best Price

High Density CCWDM MUX CWDM Multiplexer 10 Channel To 18CH CCWDM

Get Best Price

8613556217949

francesgdut@gmail.com

Contact Now

Product Description

Reliable and Durable 4 to 8CH CCWDM Compact Box type CWDM Multiplexer for Telecom Applications

CCWDM Compact CWDM Mux/Demux Module

Compact coarse wavelength division multiplexers (CCWDM Mux) is the mini version of CWDM Mux. Compared with traditional CWDM technology, CCWDM technology uses free-space optics platform which can significantly improve optical performance, in a package less than 1/4 the size of conventional CWDM modules. Main advantages of CCWDM Mux are high wavelength accuracy and stability, low insertion loss, high isolation and low PDL(polarization dependent loss). It's protocol and rates transparent supporting such applications as the CWDM system, PON networks, and CATV Links.

HJY offers a compact CWDM module that provides bandwidth capacity expansion for future network growth in one of the small packages. Its compact size and unique carrier tray set it apart, and can be installed in a variety of field situations.

The compact CWDM is ultra low loss, super thermal stability, and excellent reliability, with smaller size compact design to save much space in the application. Applicable to CWDM system and optional special service

Unique Free-Space Technology

The CCWDM Mux adopts Free-Space technology, which uses light propagating in free space to wirelessly transmit data. Inside the device, adjacent signal channels are cascaded by parallel beam instead of the fiber. This saves a lot of space for package box, and the unique workmanship also helps CCWDM Mux Demux with low insertion loss.

Comparison between CCWDM and CWDM

Insertion Loss <2.6 dB

The insertion loss of CCWDM Mux is about half of the conventional CWDM Mux. This reduces the overall loss of the whole link, and leaves more choices for the design of the solution.

Compact Package Design

CCWDM Mux uses the parallel beam for cascading instead of the fiber, which saves significant space. The minimum dimension of CCWDM aluminum box module is less than the 1/4 size of minimum CWDM ABS pigtailed module.

Features

· Low Insertion Loss
· Compact size
· Ultra Stable and Highly Reliable
· Extended Operating Temperature Available

Applications

· Optical Add/Drop Multiplexing
· Telecom networks
· Metro networks
· Broadband Networks

Performance Specifications

Parameter		4 Ch	4+UPG	8 Ch	8+UPG1	8+UPG2
Operating Wavelength (nm)		1260~1620
Channel Wavelength (nm)		1270,1290,...,1590,1610, or 1271,1291,...,1591,1611
UPG Port Wavelength Range(nm)		NA	TBD	NA	1260~1360	1260~1457
Channel Spacing(nm)		20
Channel Passband (nm)		CWL+/-6.5nm
Insertion Loss(dB)*		≤0.8	≤0.8	≤1.5	≤1.5	≤1.5
Channel Ripple(dB)		≤0.3
Isolation(dB)	Adjacent	>30
	Non-adjacent	>40
UPG Isolation(dB)		NA	>15	NA	>15	>15
Polarization Mode Dispersion(PS)		≤0.2
Polarization Dependent Loss(dB)		≤0.2
Directivity(dB)		>45
Return Loss(dB)		>45
Maximum Power Handling(mW)		500
Operating Temperature(℃)		-5~+70
Storage Temperature(℃)		-40~85
Fiber Type		G657A1
Connector		TBD
Package dimension(mm)		L55 x W35 x H8 or L44 x W25 x H6

*Above specification are for device without connector.

Order Information

Configuration	Channel No.	Pigtail Type	Fiber length	Declension(mm)	Connector
CC=CCWDM	40=4 Channel 41=4+UPG 80=8 Channel 81=8+UPG1 82=8+UPG2 ……	0=250um 1=900um	0=0.5m 1=1m 2=1.5m 3=others	1= L55 x W35 xH8 2=L44 x W25 x H6	0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=others

Type1:

Type 2:
