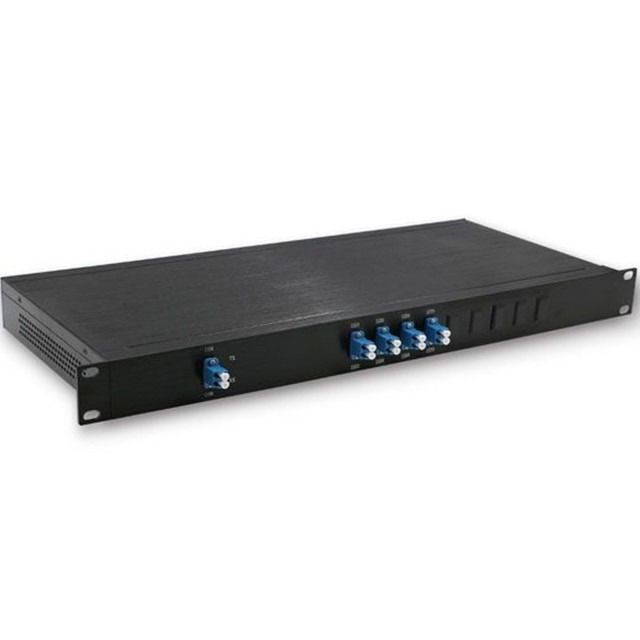

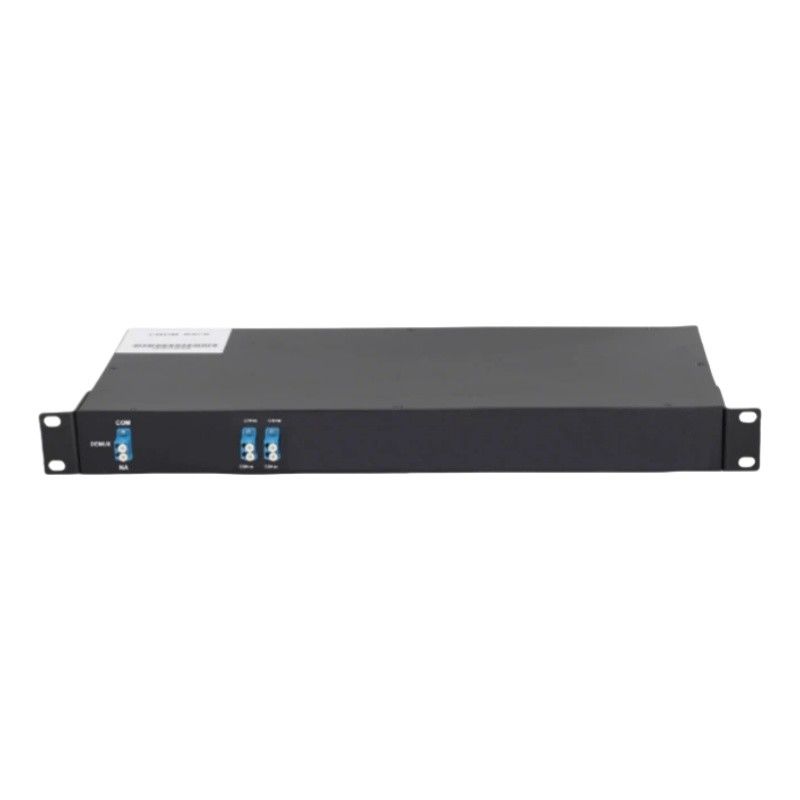

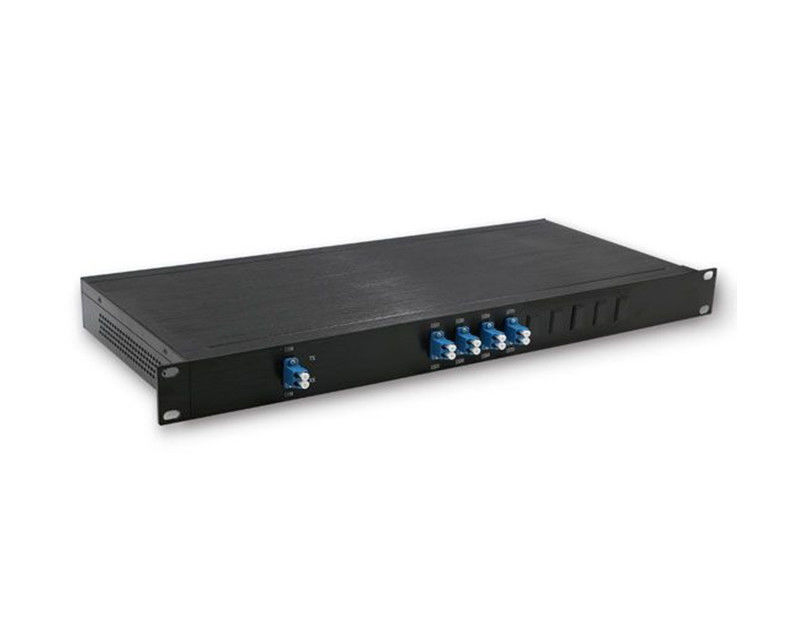

Versatile and Adaptable 4 channels 1RU Rack Mount Simplex BIDI Transmission CWDM Mux Demux for Optical Communication
Our 4-channel CWDM MUX DEMUX supports 4 different business channels.
It handles applications like 1G/10G Ethernet, SDH/SONET, and 8/4/2/1G over two optical fibers for efficient point-to-point transmission.
With this device, you’re always ready to tackle the demands of your industry.
Simplex CWDM MUX and DEMUX
Multiplexer (MUX) and demultiplexer (DEMUX) are combined together into a single piece of equipment for bi-directional data transmission over one fiber.
Simplex Bi-Directional Transmission should be used in pairs, MUX/DEMUX Portfor specific wavelength must be opposite CWDM
HJY CWDM Mux/Demux is a passive technology, it allows for any protocol to be transported over the link, as long as it is at a specific wavelength (i.e. T1 over fiber at 1570nm transported alongside 10Gbps Ethernet at 1590nm). This allows for long-term future proofing of the networking infrastructure because the multiplexers simply refract light at any network speed, regardless of the protocol being deployed.
HJY provides a complete portfolio of CWDM Mux Demux and Optical Add Drop Multiplexer (OADM) units to suit all applications such as: Gigabit & 10G Ethernet, SDH/SONET, ATM, ESCON, Fibre Channel, FTTx and CATV. And we provide optional port configurations such as: Express Port, Monitor Port, 1310nm passband port and 1550nm port for these multiplexers according to customer choice.
Maximize Your Fiber with WDM Network
A single fiber can be shared for multiple different data or services in WDM network. It maximizes the usefulness of fiber and generates substantial savings.
Mix of Services Multiplexing at Any Rate
Flexible mix of 1G/10G/25G/40G/100G/200G Ethernet, 8G/16G FC, SAN, OTN, SDH/SONET and native video services, it's transparent to any rate, any service multiplexing and upgrade
Product Specification
|
Wavelength
|
1270-1610nm
|
Channel Spacing
|
20nm
|
|
Channel Passband
|
±6.5nm
|
Technology
|
TFF (Thin Film Filter)
|
|
Insertion Loss
|
Regular :≤ 5.4dB (With 8 Skip 0:≤3.0dB)
|
Link Loss(A+B)
|
Regular :≤ 6.2dB (With 8 Skip 0:≤4.0dB)
|
|
Center Wavelength Accuracy
|
±0.05nm
|
Return Loss
|
≥ 45dB
|
|
Directivity
|
≥ 45dB
|
Polarization Mode Dispersion
|
≤ 0.1ps
|
|
Polarization Dependent Loss
|
≤ 0.3dB
|
Channel Isolation
|
Adjacent ≥30dB Non-adjacent ≥45dB
|
|
Connector
|
LC/UPC
|
Temperature
|
Operating -40 to 85°C Storage -40 to 85°C
|
|
Net Weight
|
1U 19ich Chassis 1.2KG
|
Dimensions (HxWxD)
|
1u Rack 44*440*230mm
|
Note: Specified with connectors.
Mechanical Details for Housing
Note: Please, note that the drawings shown here only show the dimensions and do not the specific configuration of the module.
