Place of Origin:
China
Brand Name:
HJY
Certification:
CE, ROHS, FCC
Model Number:

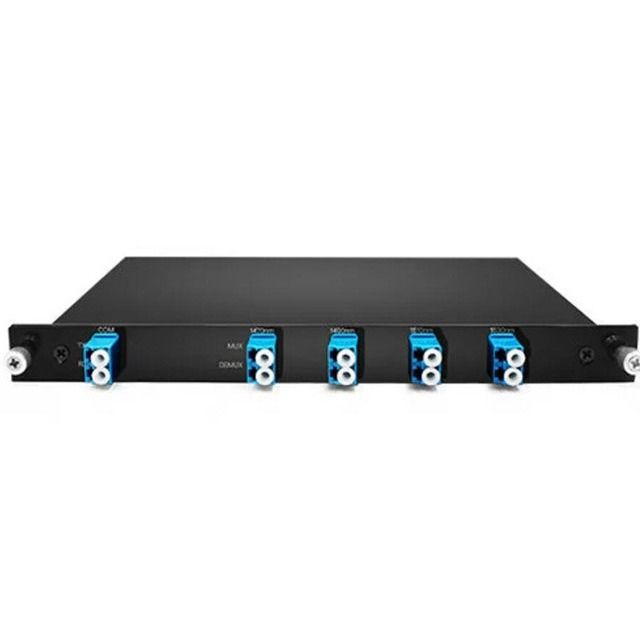

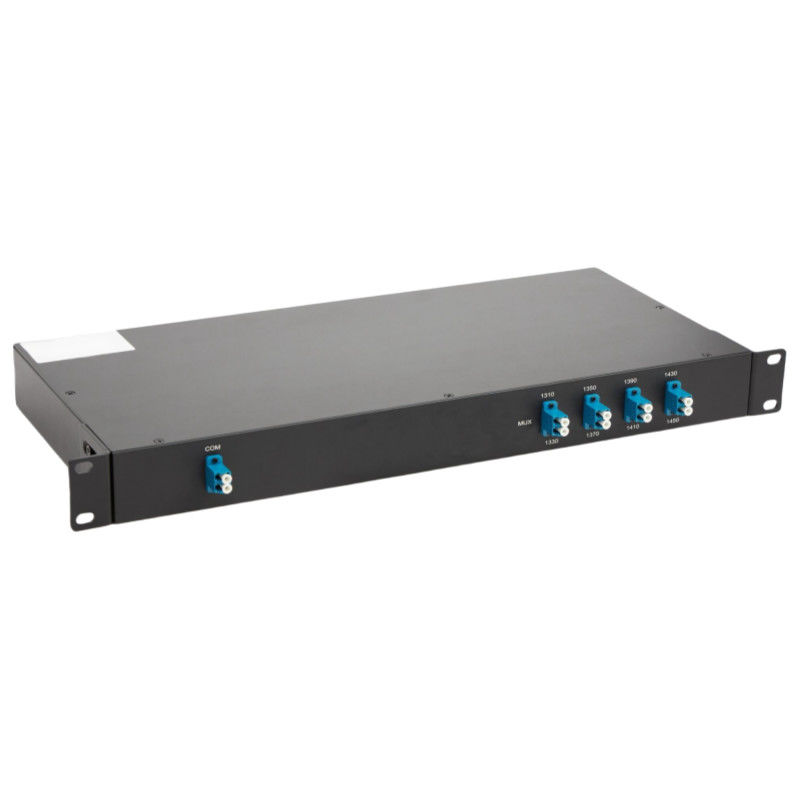

HJY-CWDM-8CH-19RU-BIDI
Key Features:
* 8-Channel CWDM Support: Delivers up to 8 non-overlapping wavelengths (1270–1610nm) for scalable network expansion.
* Simplex BIDI Design: Transmits and receives data on a single fiber using dual wavelengths per channel, minimizing fiber cabling requirements by 50%.
* 1RU Rack-Mount Form Factor: Space-efficient design fits standard 19-inch racks, ideal for high-density deployments.
* Plug-and-Play Compatibility: Works seamlessly with SFP/SFP+ transceivers and standard CWDM equipment.
* Low Insertion Loss: Precision-filtered optics ensure <1.5dB insertion loss for reliable signal integrity.
* Passive Operation: No external power required, ensuring energy efficiency and reduced maintenance.
Applications:
* Fiber backbone upgrades for enterprise networks
* Data center interconnects (DCI) and metro networks
* Telecom carrier networks requiring scalable bandwidth
* CATV and ISP infrastructure
Why Choose This Module?
Engineered for performance and durability, this CWDM Mux Demux module simplifies network scalability while maintaining backward compatibility with legacy systems. Its ruggedized design ensures stable operation in temperatures from -40°C to +85°C, making it suitable for harsh environments. Backed by industry-leading quality standards, it provides a cost-effective solution to maximize ROI for bandwidth-intensive applications.
Ideal for: Network engineers seeking to optimize fiber resources, reduce latency, and future-proof infrastructure with minimal footprint.
|
Wavelength
|
1270-1610nm
|
Channel Spacing
|
20nm
|
|
Channel Passband
|
±6.5nm
|
Technology
|
TFF (Thin Film Filter)
|
|
Insertion Loss
|
Regular :≤ 5.4dB (With 8 Skip 0:≤3.0dB)
|
Link Loss(A+B)
|
Regular :≤ 6.2dB (With 8 Skip 0:≤4.0dB)
|
|
Center Wavelength Accuracy
|
±0.05nm
|
Return Loss
|
≥ 45dB
|
|
Directivity
|
≥ 45dB
|
Polarization Mode Dispersion
|
≤ 0.1ps
|
|
Polarization Dependent Loss
|
≤ 0.3dB
|
Channel Isolation
|
Adjacent ≥30dB Non-adjacent ≥45dB
|
|
Connector
|
LC/UPC
|
Temperature
|
Operating -40 to 85°C Storage -40 to 85°C
|
|
Net Weight
|
1U 19ich Chassis 1.2KG
|
Dimensions (HxWxD)
|
1u Rack 44*440*230mm
|
