Name: 8 Channels CWDM Mux Demux Dual Fiber Oadm Fiber For Telecom Backbone Networks
Brand: Guangdong Huajiayu Technology Co., Ltd
SKU: HJY-CWDM-8CH-19RU-D
Price: Negotiable USD
Availability: InStock

Home > products > CWDM OADM >

8 Channels CWDM Mux Demux Dual Fiber Oadm Fiber For Telecom Backbone Networks

dual fiber oadm fiber

oadm fiber for telecom

8 channels cwdm oadm

Place of Origin:

China

Brand Name:

HJY

Certification:

CE, ROHS, FCC

Model Number:

HJY-CWDM-8CH-19RU-D

Request A Quote

8 Channels CWDM Mux Demux Dual Fiber Oadm Fiber For Telecom Backbone Networks

Product Details

Channels:

8 Channels

Type:

CWDM Mux And Demux

Housing:

1U 19 Inch Rack Mount Housing

Configuration Ports:

Monitor, Express Port (customer Choice)

MTBF:

Ca. 500 Years

Usage:

Use With Another 8 Channels 1RU Rack Mount Box, Duplex Dual Fiber Transmission, CWDM Mux And Demux In Pair

Highlight:

dual fiber oadm fiber

oadm fiber for telecom

8 channels cwdm oadm

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

Please find sales@huajiayu.com

Packaging Details

Neutrial Standard Packing

Delivery Time

3~7 working days

Payment Terms

L/C, T/T, Western Union

Supply Ability

10000000pcs/month

8 Channels 1470 to 1610nm With 1310nm Port LC/UPC Dual Fiber CWDM MUX DEMUX ABS BOX

Get Best Price

1RU Rack Mount 8CH Duplex Dual Fiber 1470nm to 1610nm CWDM Mux Demux Optical Networking Solution for Flexible Data Transmission

Get Best Price

High Channel Isolation 1470nm to 1610nm 1U 19inch 8CH Duplex CWDM Mux and Demux for 5G Network Solution

Get Best Price

Dual Fiber 18 Channels CWDM OADM Duplex CWDM Multiplexer Demultiplexer 1RU Rack Mount

Get Best Price

8613556217949

francesgdut@gmail.com

Contact Now

Product Description

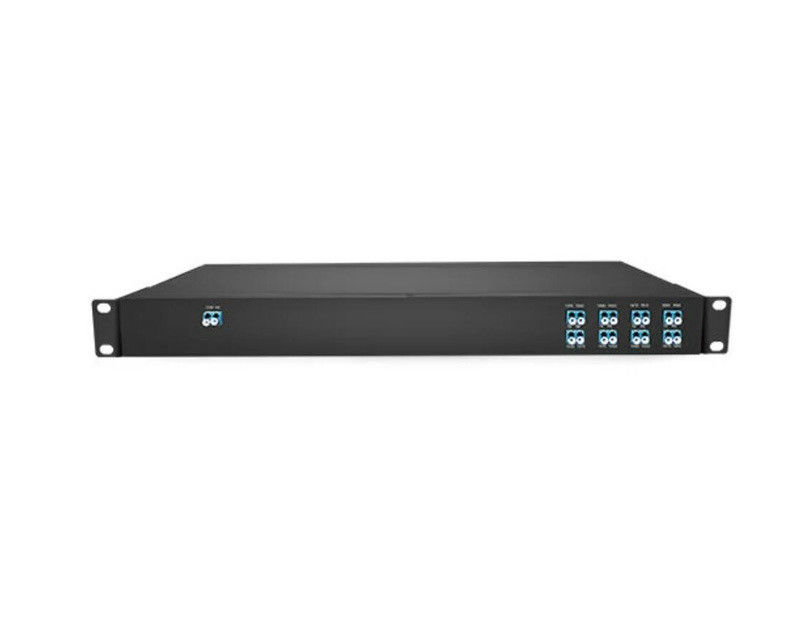

8 Channels CWDM Mux Demux 1RU Rack Mount for Dual Fiber Networks for Telecom Backbone Networks

Duplex CWDM MUX and DEMUX

Multiplexer (MUX) and demultiplexer (DEMUX) are combined together into a single piece of equipment for Dual Fiber data transmission over two fibers.

Dual Fiber Transmission should be used in pairs, MUX/DEMUX Portfor specific wavelength must be opposite CWDM

HJY CWDM Mux/Demux is a passive technology, it allows for any protocol to be transported over the link, as long as it is at a specific wavelength (i.e. T1 over fiber at 1570nm transported alongside 10Gbps Ethernet at 1590nm). This allows for long-term future proofing of the networking infrastructure because the multiplexers simply refract light at any network speed, regardless of the protocol being deployed.

HJY provides a complete portfolio of CWDM Mux Demux and Optical Add Drop Multiplexer (OADM) units to suit all applications such as: Gigabit & 10G Ethernet, SDH/SONET, ATM, ESCON, Fibre Channel, FTTx and CATV. And we provide optional port configurations such as: Express Port, Monitor Port, 1310nm passband port and 1550nm port for these multiplexers according to customer choice.

Maximize Your Fiber with WDM Network

Dual fiber can be shared for multiple different data or services in WDM network. It maximizes the usefulness of fiber and generates substantial savings.

Mix of Services Multiplexing at Any Rate

Flexible mix of 1G/10G/25G/40G/100G/200G Ethernet, 8G/16G FC, SAN, OTN, SDH/SONET and native video services, it's transparent to any rate, any service multiplexing and upgrade

Product Specification

Wavelength	1270-1610nm	Channel Spacing	20nm
Channel Passband	±6.5nm	Technology	TFF (Thin Film Filter)
Insertion Loss	Regular :≤ 5.4dB (With 8 Skip 0:≤3.0dB)	Link Loss(A+B)	Regular :≤ 6.2dB (With 8 Skip 0:≤4.0dB)
Center Wavelength Accuracy	±0.05nm	Return Loss	≥ 45dB
Directivity	≥ 45dB	Polarization Mode Dispersion	≤ 0.1ps
Polarization Dependent Loss	≤ 0.3dB	Channel Isolation	Adjacent ≥30dB Non-adjacent ≥45dB
Connector	LC/UPC	Temperature	Operating -40 to 85°C Storage -40 to 85°C
Net Weight	1U 19ich Chassis 1.2KG	Dimensions (HxWxD)	1u Rack 44440230mm

Note: Specified with connectors.

Mechanical Details for Housing

Note: Please, note that the drawings shown here only show the dimensions and do not the specific configuration of the module.
