Name: ABS Box 1.5dB CWDM OADM CWDM Multiplexer 8 Channel Module For Wavelength Division
Brand: Guangdong Huajiayu Technology Co., Ltd
SKU: HJY-CWDM-ABS-8CH-1
Price: Negotiable USD
Availability: InStock

Home > products > CWDM OADM >

ABS Box 1.5dB CWDM OADM CWDM Multiplexer 8 Channel Module For Wavelength Division

ABS Box CWDM OADM

1.5dB CWDM OADM

CWDM Multiplexer 8 Channel

Place of Origin:

China

Brand Name:

HJY

Certification:

CE, ROHS, FCC ISO9001

Model Number:

HJY-CWDM-ABS-8CH-1

Request A Quote

ABS Box 1.5dB CWDM OADM CWDM Multiplexer 8 Channel Module For Wavelength Division

Product Details

Insertion Loss:

< 1.5dB

Wavelength Range:

1270nm-1610nm

Number Of Channels:

Storage Temperature:

-40℃~+85℃

Connector Type:

LC/UPC, LC/APC, SC/UPC, SC/APC

Type:

Cwdm Oadm

Highlight:

ABS Box CWDM OADM

1.5dB CWDM OADM

CWDM Multiplexer 8 Channel

Payment & Shipping Terms

Minimum Order Quantity

10 pcs

Price

1~999

Packaging Details

Roll, Neutrial Packing or with OEM LOGO

Delivery Time

5~8 working days

Payment Terms

T/T, Western Union, L/C

Supply Ability

100,000 pcs

8 Channels 1470 to 1610nm With 1310nm Port LC/UPC Dual Fiber CWDM MUX DEMUX ABS BOX

Get Best Price

1RU Rack Mount 8CH Duplex Dual Fiber 1470nm to 1610nm CWDM Mux Demux Optical Networking Solution for Flexible Data Transmission

Get Best Price

High Channel Isolation 1470nm to 1610nm 1U 19inch 8CH Duplex CWDM Mux and Demux for 5G Network Solution

Get Best Price

Dual Fiber 18 Channels CWDM OADM Duplex CWDM Multiplexer Demultiplexer 1RU Rack Mount

Get Best Price

8613556217949

francesgdut@gmail.com

Contact Now

Product Description

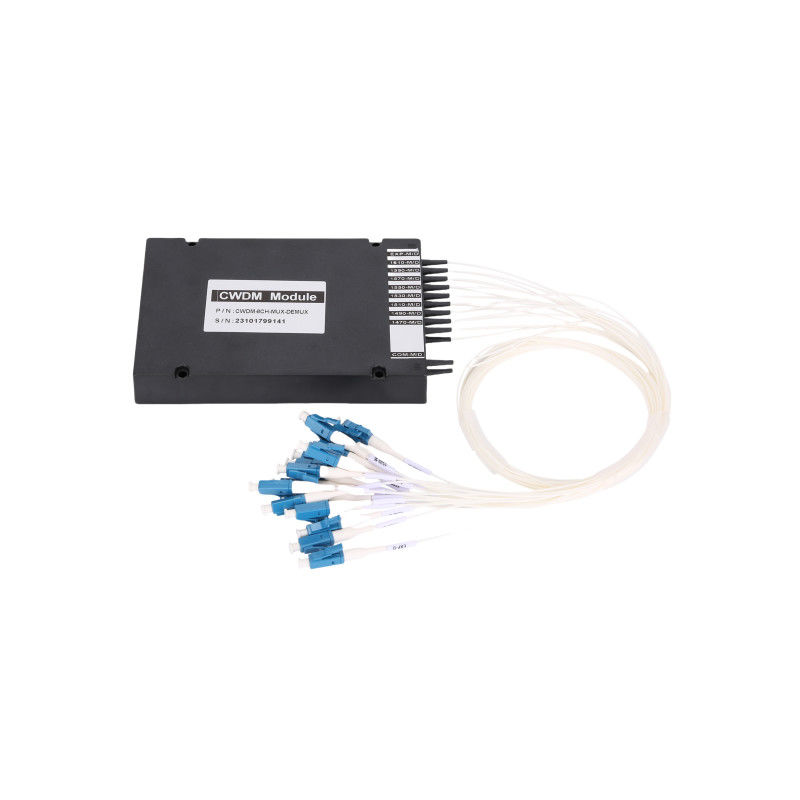

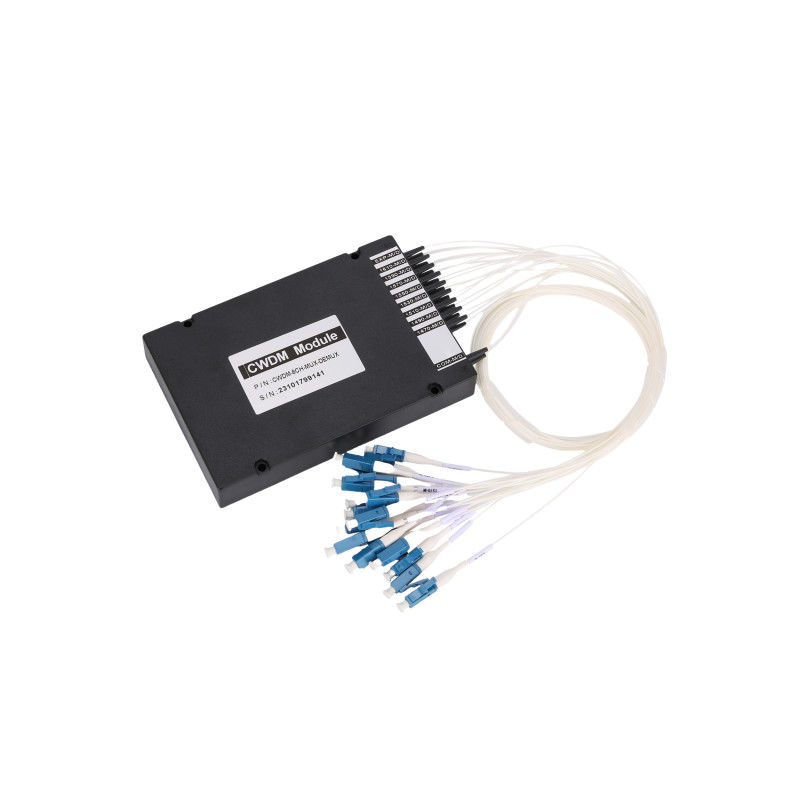

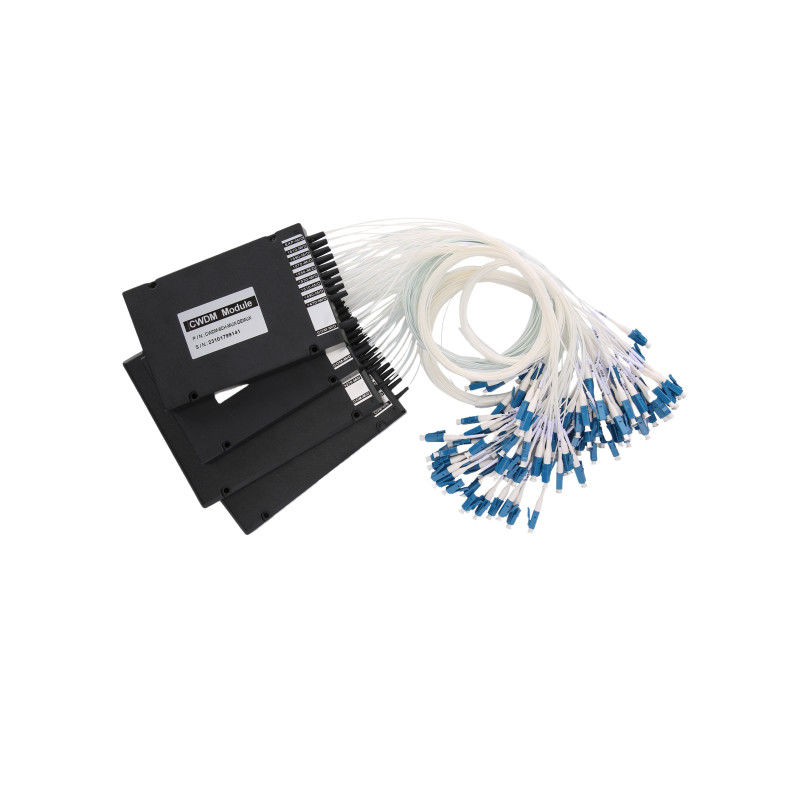

Professional Grade 8CH CWDM Multiplexer 8 Channel MUX DEMUX ABS Box Module for Reliable Wavelength Division Multiplexing

HJY’s premium CWDM Mux/Demux units are passive devices which are able to combine multiple wavelengths of varying widths for propagation through a single duplex LC fiber cable. Course Wavelength-Division Multiplexers (CWDMs) reduce overall network complexity, maintain long distance fiber cables to a minimum, and allow for a more cost-efficient high-performance fiber network. Each CWDM device accepts up to 8 unique wavelengths of varying standards and data transmission rates, for delivery across a single fiber patch cable. Pair these premium CWDM units with HJY specialty fiber patch cables and high-performance transceivers for a complete low-cost fiber optic networking solution.

CWDM technology uses ITU standard 20nm spacing between the wavelengths, from 1270nm to 1610nm. Our CWDM module has 2 to 18 channels. The central wavelength of each channel is specified to one of the ITU-T grid wavelengths. The CWDM module features wide channel bandwidth (13nm). Its isolation is greater than 30dB for adjacent channels, and greater than 40dB for non-adjacent channels. The module also has high thermal stability to ensure reliable performance under different environment.

Features	Applications
· Low Insertion Loss · High Channel Isolation · Optical path epoxy free · Excellent thermal stability and reliability · Good channel-to-channel uniformity · Wide Operating Wavelength: 1270nm-1610nm /(1261nm~1611nm) · Wide Operating Temperature: -20 to +70℃ · Telcordia GR-1221 Compliance and RoHS Environmental Protection Standard	· CWDM Network · Add/Drop System · CATV Fiberoptic System · Metro/Access Network · Fiber Optical Amplifier

Product specification

Channels	1x4	1x8	1x16	1x18
Insertion Loss	<1.5dB	<2.4dB	<4.8dB	<5.4dB

Wavelength Range	1270-1610nm	Technology	TFF (Thin Film Filter)
Channel Spacing	20nm	Passband Ripple	≤0.5dB
Channel Passband	ITU±6.5nm	Channel Isolation	Adjacent ≥30dB Non-adjacent ≥45dB
Polarization Dependent Loss	≤0.2dB	Polarization Mode Dispersion	≤0.1ps
Directivity	≥50dB	Return Loss	≥45dB
Optical Power Handling	≤500mW	Temperature	Operating -40 to 85°C Storage -40 to 85°C
Fiber Type	SMF-28e+	Connector	LC/SC/FC or other
Net Weight	0.25kg	Package dimensions	1008010mm 1208018mm Or other

Package Dimension

Note:Fiber diameter can be 0.9mm/2.0mm/3.0mm. Fiber length is 1M or others. Connector can be LC/SC/FC, or others. If you want to order, please check with us first.

Order information

P/N: CWDM-ABS-XCH-①-②-③-④-⑤-⑥

When you inquire, please provide the correct P/N number according to our ordering information, and attach the appropriate description would be better. If need any connector, we do not recommend choosing a 250μm bare fiber pigtail.

①	②	③	④	⑤	⑥
Wavelength	R- Wavelength	Fiber Type	Pigtails Diameter	Fiber Length	Connector
1270 nm 1290 nm … 1590 nm 1610 nm Or 1271 nm 1291 nm … 1591 nm 1611 nm	A: 1270~1610 B: 1270~1450 C: 1470~1610 D: 1271~1611 E: 1271~1451 F: 1471~1611	1: SMF-28e X: Others	25:250μm 90:900μm XX: Others	05:0.5m 10:1.0m 15:1.5m XX: Others	00:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC ST: ST/PC XX: Others

Part Number Example: CWDM-ABS-18CH-A-1-90-10-LP

Description: 18CH CWDM Multiplexer ABS box type, Wavelength 1270~1610nm,SMF-28e fiber, 0.9mm OD loose tube,1.0m length fiber pigtails, LC/PC connectors at all ports.

Ordering Information for Custom Parts:

If you need to customize other specifications, please provide detailed description for your requirement.
