Place of Origin:
China
Brand Name:
HJY
Certification:
CE, ROHS, FCC ISO9001
Model Number:
HJY-CWDM-8CH-D16RU
|
Item Details
|
|

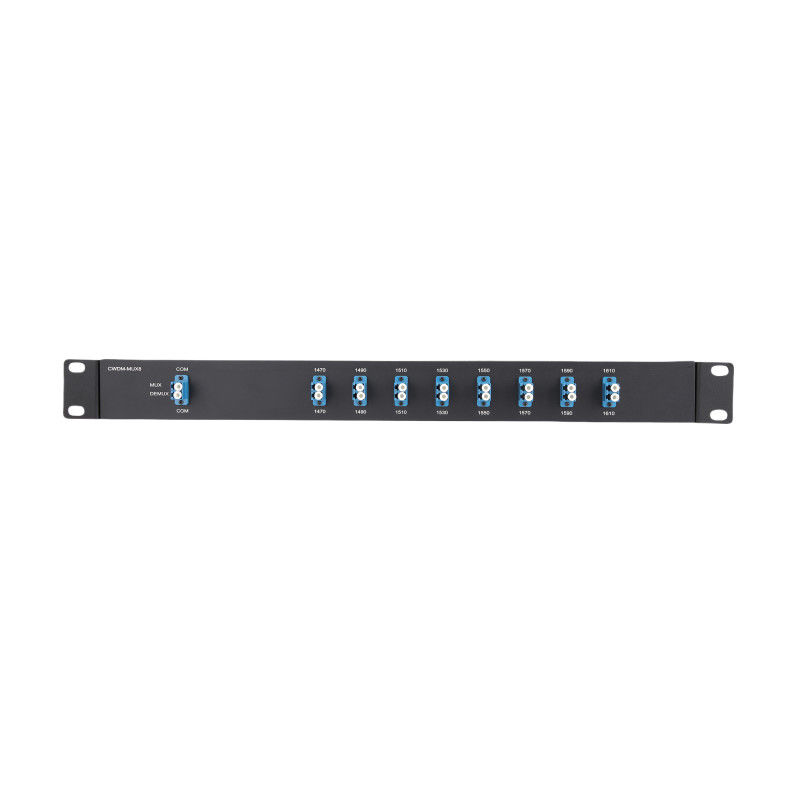

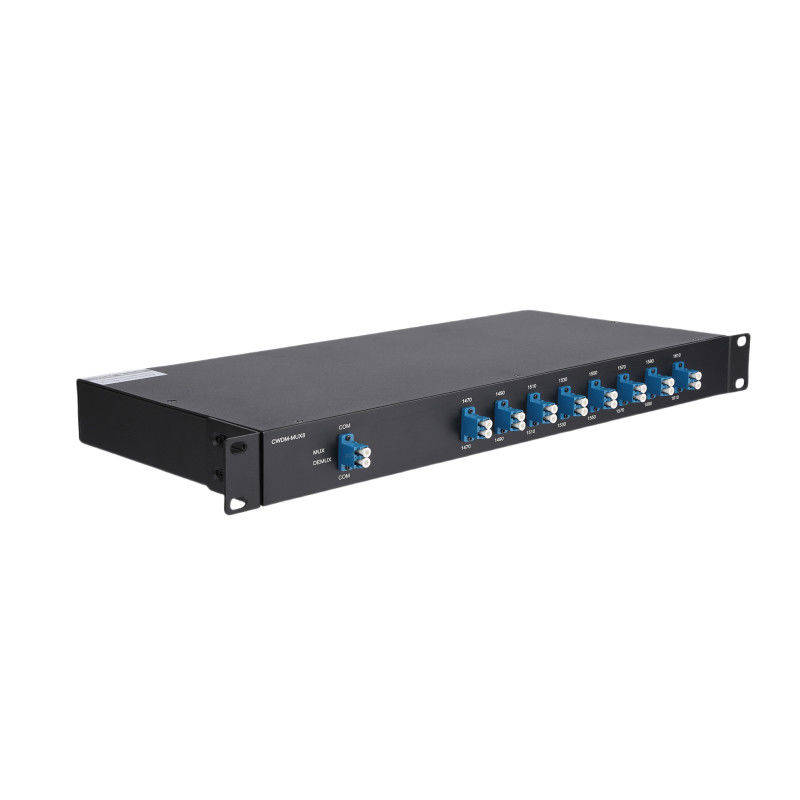

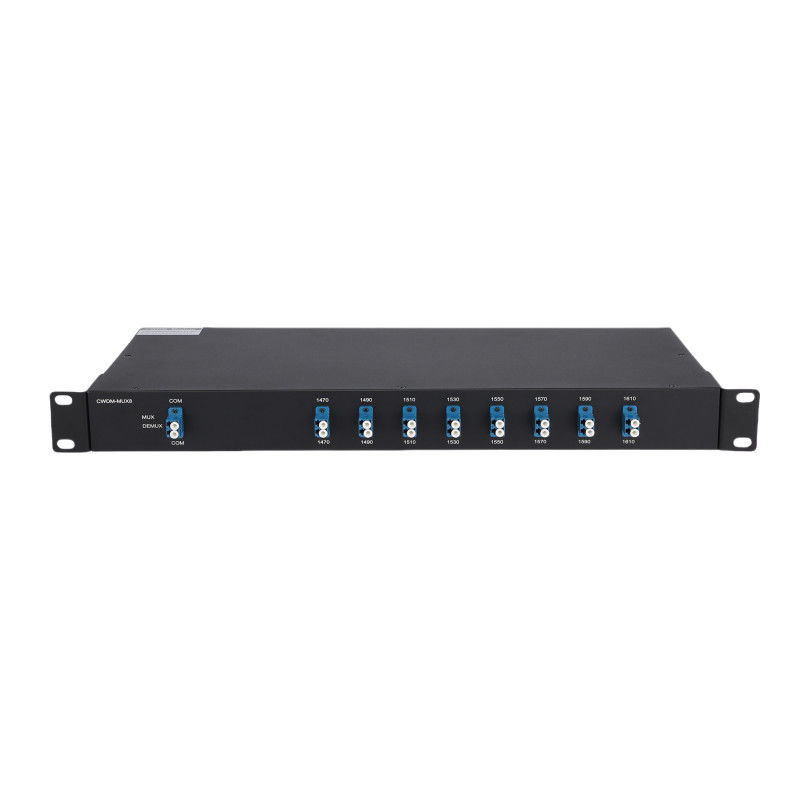

* 8 channels CWDM mux and demux in one 1U Rack
* Com port is simplex
* 1U 19 inch Rack Mount Housing
* It is equipped with configuration ports like Monitor, Express port according to customer choice (see options)
* Front panel is equipped with adapters according to customer choice (see options)
* Passive, no electric power required. (MTBF ca. 500 years)
* Low insertion loss
* Simple to install, requires no configuration or maintenance
* ISO 9001 manufacturing facility
* It should be used with another 8 channels 1RU Rack Mount box, Duplex Dual Fiber Transmission, CWDM Mux and Demux in pair.
|
|
Wavelength
|
1270-1610nm
|
Channel Spacing
|
20nm
|
|
Channel Passband
|
±6.5nm
|
Technology
|
TFF (Thin Film Filter)
|
|
Insertion Loss
|
Regular :≤ 5.4dB (With 8 Skip 0:≤3.0dB)
|
Link Loss(A+B)
|
Regular :≤ 6.2dB (With 8 Skip 0:≤4.0dB)
|
|
Center Wavelength Accuracy
|
±0.05nm
|
Return Loss
|
≥ 45dB
|
|
Directivity
|
≥ 45dB
|
Polarization Mode Dispersion
|
≤ 0.1ps
|
|
Polarization Dependent Loss
|
≤ 0.3dB
|
Channel Isolation
|
Adjacent ≥30dB Non-adjacent ≥45dB
|
|
Connector
|
LC/UPC
|
Temperature
|
Operating -40 to 85°C Storage -40 to 85°C
|
|
Net Weight
|
1U 19ich Chassis 1.2KG
|
Dimensions (HxWxD)
|
1u Rack 44*440*230mm
|
