Place of Origin:
China
Brand Name:
HJY
Certification:
CE, ROHS, FCC ISO9001
Model Number:

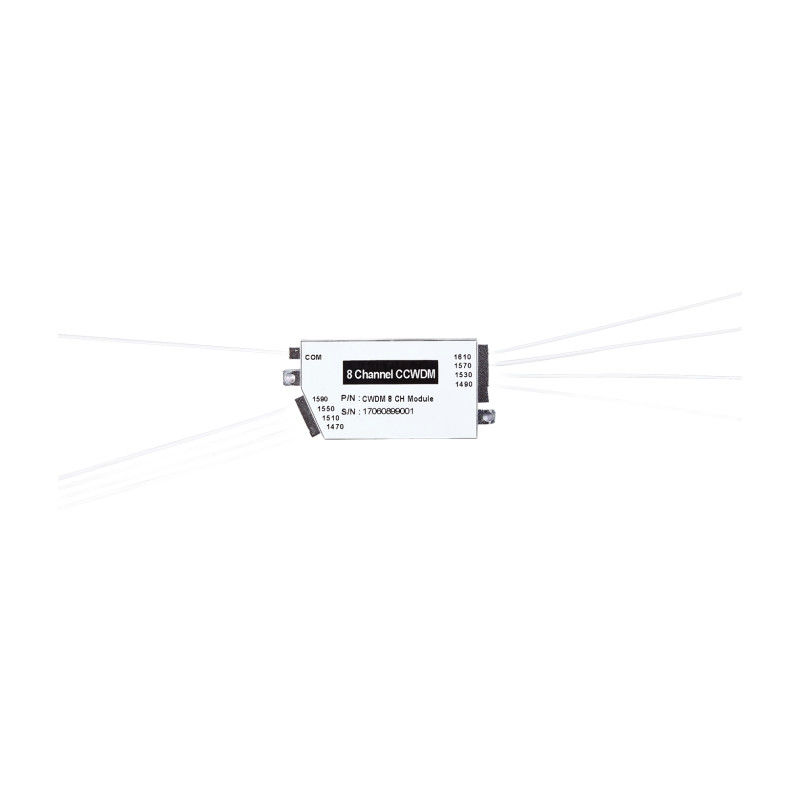

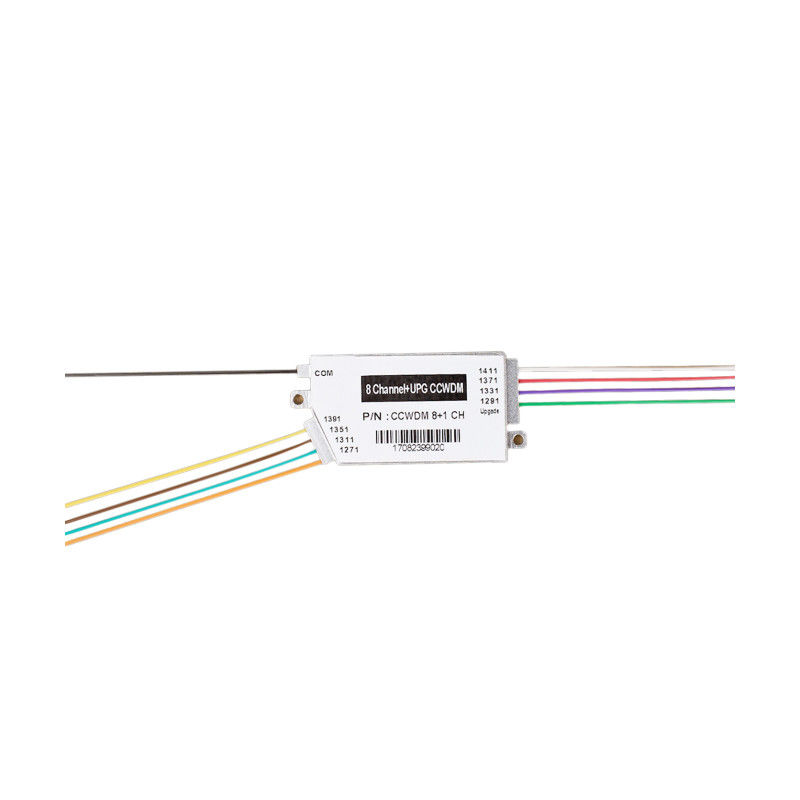

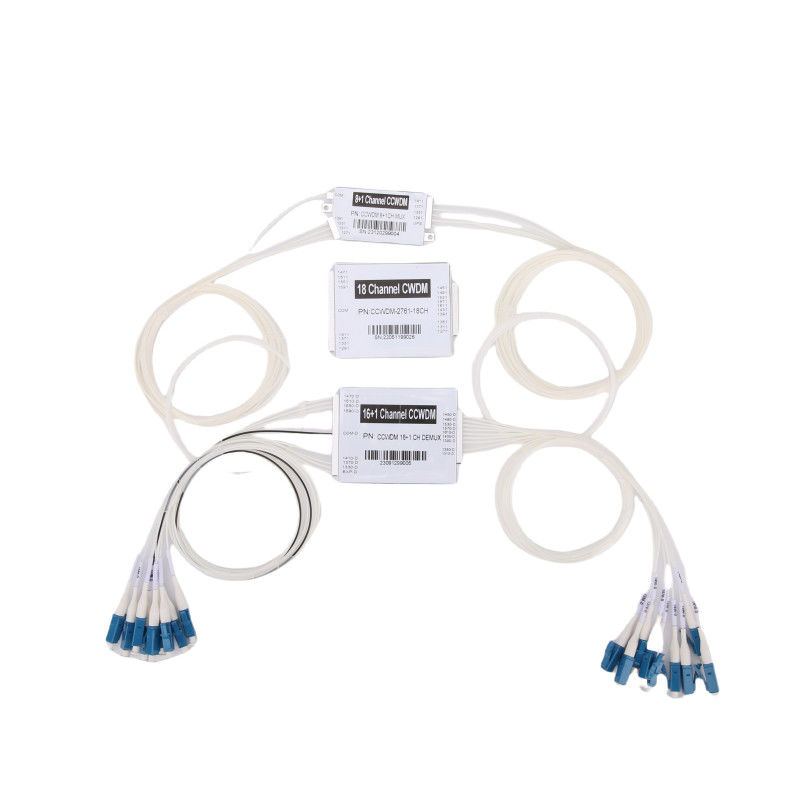

HJY-CCWDM-8CH-Module
| Parameter | 4 Ch | 4+UPG | 8 Ch | 8+UPG1 | 8+UPG2 | |
| Operating Wavelength (nm) | 1260~1620 | |||||
| Channel Wavelength (nm) | 1270,1290, -,1590,1610, or 1271,1291,-,1591,1611 | |||||
| UPG Port Wavelength Range(nm) | NA | TBD | NA | 1260~1360 | 1260~1457 | |
| Channel Spacing(nm) | 20 | |||||
| Channel Passband (nm) | CWL+/-6.5nm | |||||
| Insertion Loss(dB)* | ≤0.8 | ≤0.8 | ≤1.5 | ≤1.5 | ≤1.5 | |
| Channel Ripple(dB) | ≤0.3 | |||||
| Isolation(dB) | Adjacent | >30 | ||||
| Non-adjacent | >40 | |||||
| UPG Isolation(dB) | NA | >15 | NA | >15 | >15 | |
| Polarization Mode Dispersion(PS) | ≤0.2 | |||||
| Polarization Dependent Loss(dB) | ≤0.2 | |||||
| Directivity(dB) | >45 | |||||
| Return Loss(dB) | >45 | |||||
| Maximum Power Handling(mW) | 500 | |||||
| Operating Temperature(℃) | -5~+70 | |||||
| Storage Temperature(℃) | -40~85 | |||||
| Fiber Type | G657A1 | |||||
| Connector | TBD | |||||
| Package dimension(mm) | L55 x W35 x H8 or L44 x W25 x H6 | |||||
|
Configuration
|
Channel No.
|
Pigtail Type
|
Fiber length
|
Declension(mm)
|
Connector
|
|
CC=CCWDM
|
40=4 Channel
41=4+UPG 80=8 Channel 81=8+UPG1 82=8+UPG2 --- |
0=250um
1=900um |
0=0.5m
1=1m 2=1.5m 3=others |
1= L55 x W35 xH8
2=L44 x W25 x H6 |
0=None
1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=others |
