18 Channel CCWDM MUX Multiplexer DEMUX Compact Free Space Technology

18 Channel CCWDM MUX

CCWDM MUX Free Space

18 Channel mux multiplexor

Place of Origin:

China

Brand Name:

HJY

Certification:

CE, ROHS, FCC ISO9001

Model Number:

HJY-CCWDM-18CH-Module-2

Request A Quote

18 Channel CCWDM MUX Multiplexer DEMUX Compact Free Space Technology

Product Details

Number Of Channels:

Package Type:

CCWDM Box

Channel Spacing:

20nm

Wavelength Range:

1270-1610nm

Storage Temperature:

-40℃ To +85℃

Insertion Loss:

≤ 1.5dB

Connector Type:

LC/SC/FC/ST

Channels:

18CH

Highlight:

18 Channel CCWDM MUX

CCWDM MUX Free Space

18 Channel mux multiplexor

Payment & Shipping Terms

Minimum Order Quantity

10 pcs

Price

1~999

Packaging Details

Neutrial Packing or with OEM LOGO

Delivery Time

5~8 working days

Payment Terms

T/T, Western Union, L/C

Supply Ability

100,000 pcs

UPC Optical Network Fiber Optic Mux 18CH Compact CCWDM CWDM Mux Demux Multiplexer

Get Best Price

55mm Optical CCWDM MUX Module 4 ~ 8CH Compact Box Type CWDM Multiplexer

Get Best Price

High Lsolation DEMUX Module 4CH Compact CWDM MUX CCWDM Multiplexer For Network Performance

Get Best Price

High Density CCWDM MUX CWDM Multiplexer 10 Channel To 18CH CCWDM

Get Best Price

8613556217949

francesgdut@gmail.com

Contact Now

Product Description

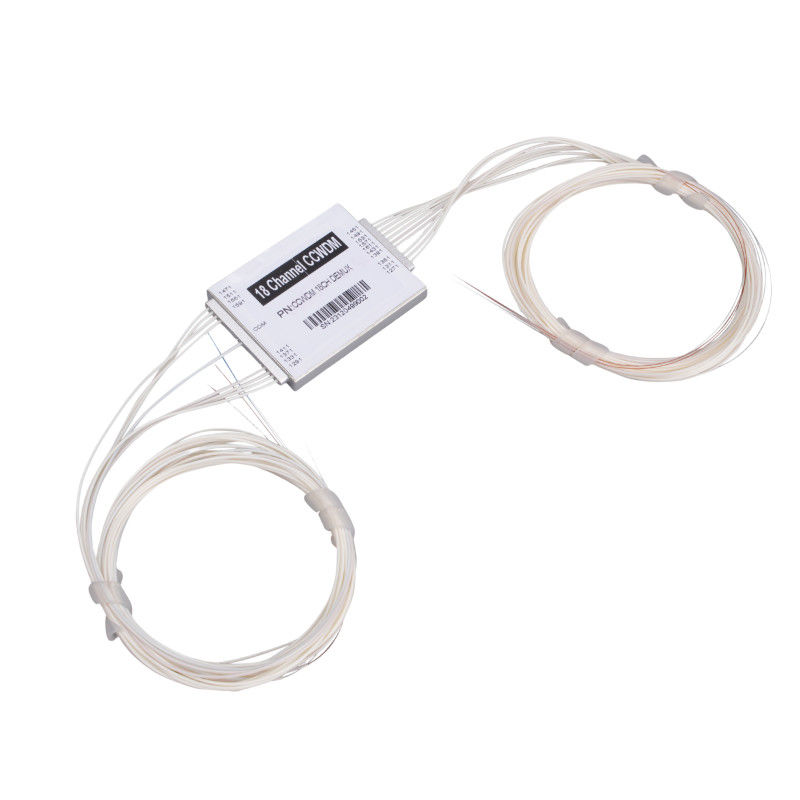

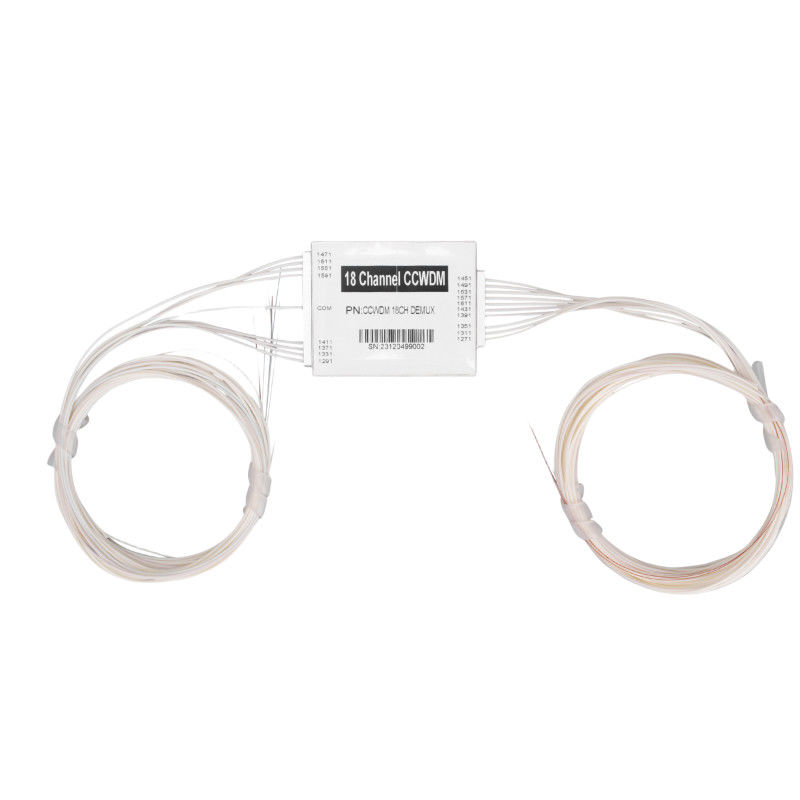

Compact Package Design and Low Loss 18CH CCWDM MUX DEMUX Compact Multiplexer with Unique Free Space Technology

CCWDM Module Application

1. Telecommunications Applications

*Fiber Optic System Capacity Boost: CCWDM modules in fiber optic networks multiplex diverse wavelength optical signals into one fiber. In metro network access, operators use them to combine users' signals like Ethernet and voice onto different wavelength carriers in one fiber, enhancing fiber utilization and cutting new fiber installation costs.
*Long-Distance Transmission Aid: In long-haul links, while DWDM leads in high-capacity, CCWDM serves auxiliary roles. It transmits monitoring, backup data with lower bandwidth needs cost-effectively.

2. CATV Network Use

*Program Transmission Expansion: In CATV headends, CCWDM modules modulate multiple TV channel signals to different wavelengths for fiber transmission to sub-headends or users. Operators adding HD channels can use it to expand capacity by multiplexing new and old signals.

3. Data Center Interconnection Role

*Connecting Different Data Centers: As data center scale and number grow, CCWDM modules interconnect them. They multiplex internal network signals like server data and storage backups via fiber, improving connection efficiency, bandwidth use, and reducing costs. In cloud service providers' data center interconnections, it enables high-speed data transfer.

Compact coarse wavelength division multiplexers (CCWDM Mux) is the mini version of CWDM Mux. Compared with traditional CWDM technology, CCWDM technology uses free-space optics platform which can significantly improve optical performance, in a package less than 1/4 the size of conventional CWDM modules. Main advantages of CCWDM Mux are high wavelength accuracy and stability, low insertion loss, high isolation and low PDL(polarization dependent loss). It's protocol and rates transparent supporting such applications as the CWDM system, PON networks, and CATV Links.

HJY offers a compact CWDM module that provides bandwidth capacity expansion for future network growth in one of the small packages. Its compact size and unique carrier tray set it apart, and can be installed in a variety of field situations.

The compact CWDM is ultra low loss, super thermal stability, and excellent reliability, with smaller size compact design to save much space in the application. Applicable to CWDM system and optional special service

Performance Specifications:

Parameter		10 Ch	12Ch	14 Ch	16Ch	18Ch
Operating Wavelength (nm)		1260~1620
Channel Wavelength (nm)		1270,1290,...,1590,1610, or 1271,1291,...,1591,1611
Channel Spacing(nm		20
Channel Passband (nm)		CWL+/-6.5nm
Insertion Loss (dB)		≤1.5	≤1.5	≤1.8	≤1.8	≤2.0
Channel Ripple (dB)		≤0.4
Isolation (dB)	Adjacent	>30
	Non-adjacent	>40
Polarization Mode Dispersion (PS)		≤0.2
Polarization Dependent Loss (dB)		≤0.2
Directivity (dB)		>45
Return Loss(dB)		>45
Maximum Power Handling (mW)		500
Operating Temperature (ºC)		-5~+70
Storage Temperature (ºC)		-40~85
Fiber Type		G657A1
Connector		TBD
Package dimension (mm)		L55 x W45 x H6

Remark:Above specification are for device without connector

Unique Free-Space Technology

The CCWDM Mux adopts Free-Space technology, which uses light propagating in free space to wirelessly transmit data. Inside the device, adjacent signal channels are cascaded by parallel beam instead of the fiber. This saves a lot of space for package box, and the unique workmanship also helps CCWDM Mux Demux with low insertion loss.

Comparison between CCWDM and CWDM

Insertion Loss <2.6 dB

The insertion loss of CCWDM Mux is about half of the conventional CWDM Mux. This reduces the overall loss of the whole link, and leaves more choices for the design of the solution.

Compact Package Design

CCWDM Mux uses the parallel beam for cascading instead of the fiber, which saves significant space. The minimum dimension of CCWDM aluminum box module is less than the 1/4 size of minimum CWDM ABS pigtailed module.

Order Information

Configuration	Channel No.	Pigtail Type	Fiber length	Declension(mm)	Connector
CC=CCWDM	40=4 Channel 41=4+UPG 80=8 Channel 81=8+UPG1 82=8+UPG2 ---	0=250um 1=900um	0=0.5m 1=1m 2=1.5m 3=others	1= L55 x W35 xH8 2=L44 x W25 x H6	0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=others

Type1:

Type 2:
