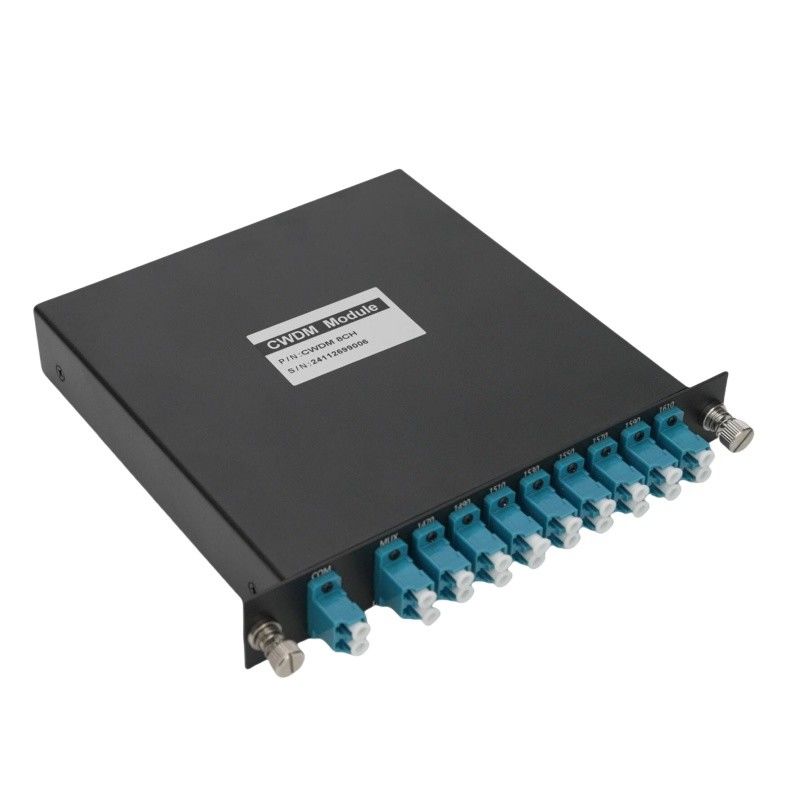

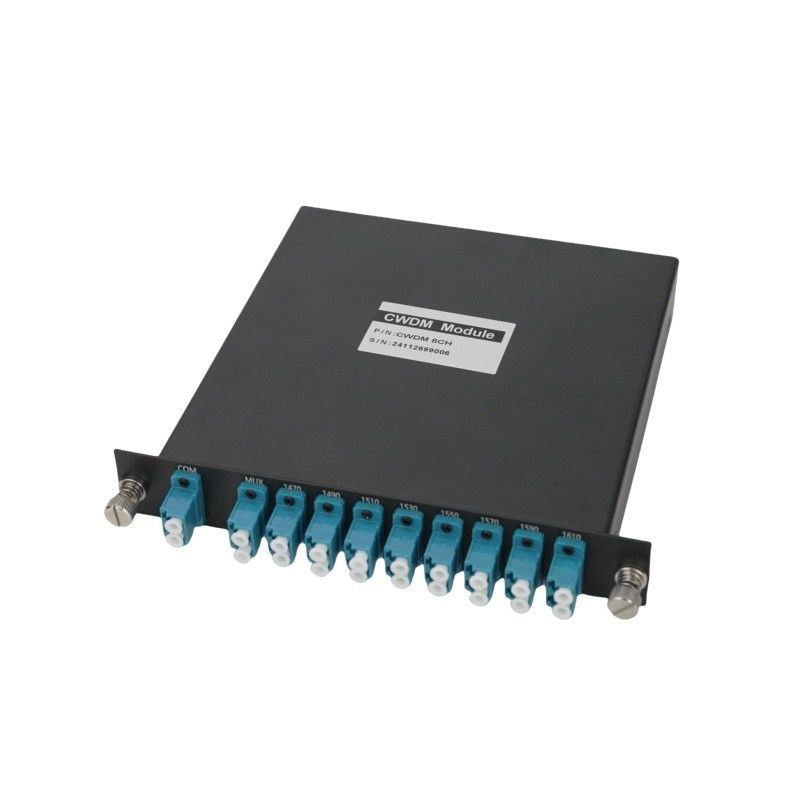

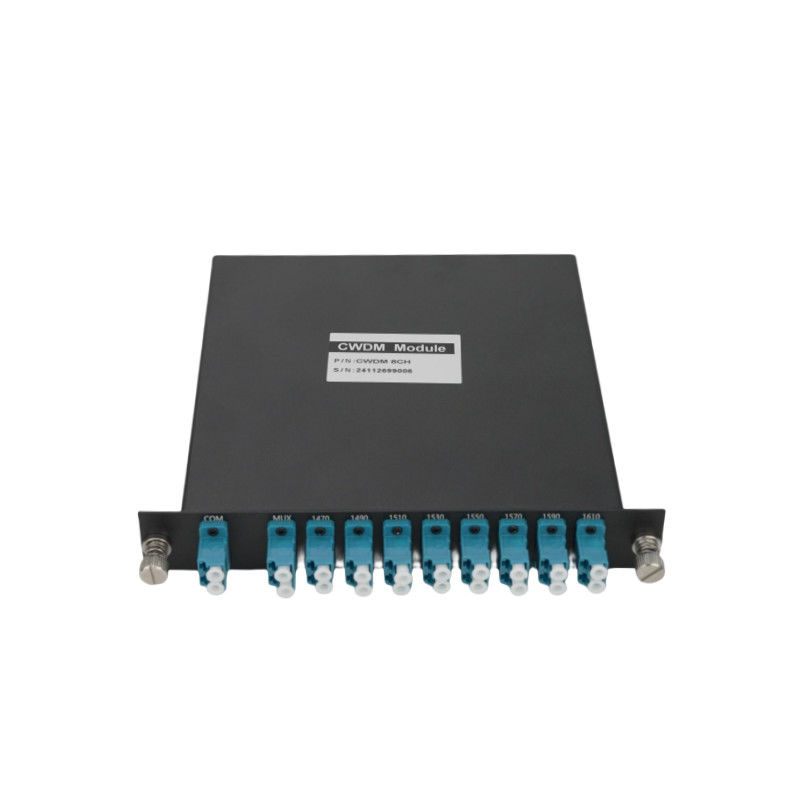

Plug and Play Design 8 Channel CWDM Mux Demux LGX Box with Superior Signal Integrity and Low Insertion Loss
Experience seamless optical networking with our Plug and Play Design 8 Channel CWDM Mux Demux LGX Box. This innovative device is engineered for easy installation, eliminating complex setup procedures. Its superior signal integrity ensures stable and high - quality data transmission, minimizing signal degradation.
Featuring a remarkably low insertion loss, it maximizes the efficiency of your optical network, reducing power consumption and enhancing overall performance. Ideal for both small - scale and large - scale network deployments, whether in enterprise settings or data centers, this LGX box is a reliable choice for optimizing your CWDM multiplexing and demultiplexing operations.
Duplex CWDM MUX and DEMUX
Multiplexer (MUX) and demultiplexer (DEMUX) are combined together into a single piece of equipment for Dual Fiber data transmission over two fibers.
Dual Fiber Transmission should be used in pairs, MUX/DEMUX Portfor specific wavelength must be opposite CWDM
HJY CWDM Mux/Demux is a passive technology, it allows for any protocol to be transported over the link, as long as it is at a specific wavelength (i.e. T1 over fiber at 1570nm transported alongside 10Gbps Ethernet at 1590nm). This allows for long-term future proofing of the networking infrastructure because the multiplexers simply refract light at any network speed, regardless of the protocol being deployed.
HJY provides a complete portfolio of CWDM Mux Demux and Optical Add Drop Multiplexer (OADM) units to suit all applications such as: Gigabit & 10G Ethernet, SDH/SONET, ATM, ESCON, Fibre Channel, FTTx and CATV. And we provide optional port configurations such as: Express Port, Monitor Port, 1310nm passband port and 1550nm port for these multiplexers according to customer choice.
Maximize Your Fiber with WDM Network
Dual fiber can be shared for multiple different data or services in WDM network. It maximizes the usefulness of fiber and generates substantial savings.
Mix of Services Multiplexing at Any Rate
Flexible mix of 1G/10G/25G/40G/100G/200G Ethernet, 8G/16G FC, SAN, OTN, SDH/SONET and native video services, it's transparent to any rate, any service multiplexing and upgrade
Product Specification
|
Wavelength
|
1270-1610nm
|
Channel Spacing
|
20nm
|
|
Channel Passband
|
±6.5nm
|
Technology
|
TFF (Thin Film Filter)
|
|
Insertion Loss
|
Regular :≤ 5.4dB (With 8 Skip 0:≤3.0dB)
|
Link Loss(A+B)
|
Regular :≤ 6.2dB (With 8 Skip 0:≤4.0dB)
|
|
Center Wavelength Accuracy
|
±0.05nm
|
Return Loss
|
≥ 45dB
|
|
Directivity
|
≥ 45dB
|
Polarization Mode Dispersion
|
≤ 0.1ps
|
|
Polarization Dependent Loss
|
≤ 0.3dB
|
Channel Isolation
|
Adjacent ≥30dB Non-adjacent ≥45dB
|
|
Connector
|
LC/UPC
|
Temperature
|
Operating -40 to 85°C Storage -40 to 85°C
|
|
Net Weight
|
1U 19ich Chassis 1.2KG
|
Dimensions (HxWxD)
|
1u Rack 44*440*230mm
|
Note: Specified with connectors.
Mechanical Details for Housing
Note: Please, note that the drawings shown here only show the dimensions and do not the specific configuration of the module.
