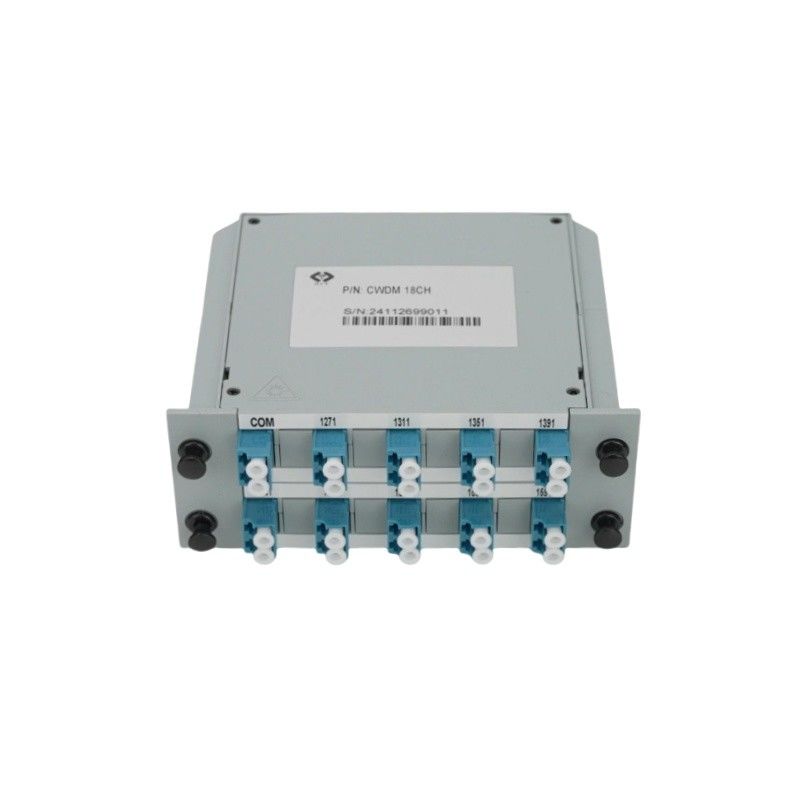

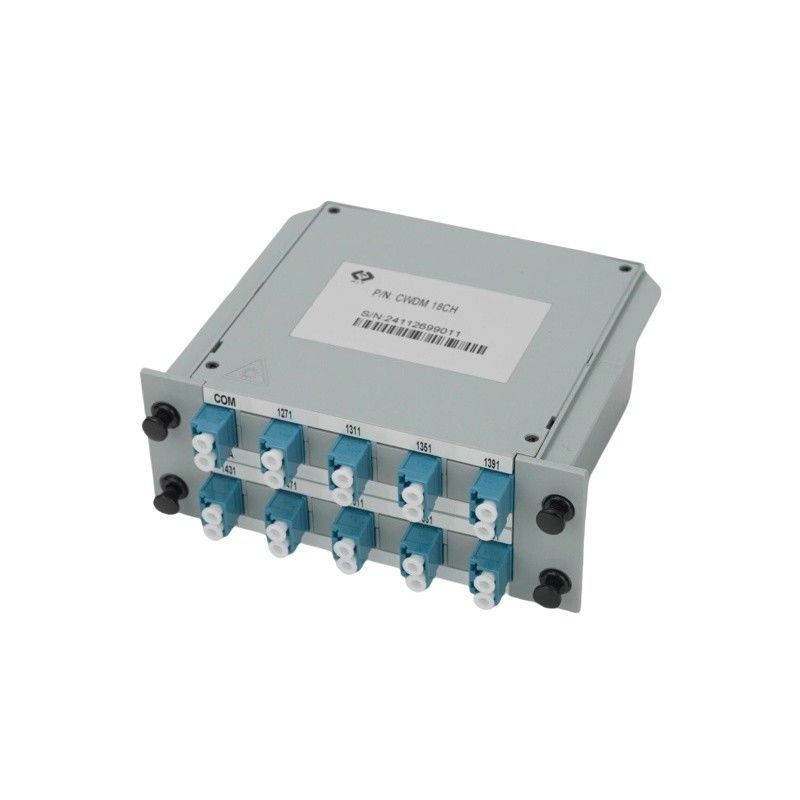

Rock Solid 18 Channel CWDM MUX DEMUX LGX For Simplex BIDI Network Operations

Rock Solid 18 Channel CWDM MUX DEMUX LGX For Simplex BIDI Network Operations

Rock Solid CWDM MUX

18 Channel CWDM MUX

optical multiplexer For Network

Place of Origin:

China

Brand Name:

HJY

Certification:

CE ROHS FCC

Model Number:

HJY-CWDM-18CH-BIDI-LGX-P3

Contact Us
Request A Quote
Rock Solid 18 Channel CWDM MUX DEMUX LGX For Simplex BIDI Network Operations
Rock Solid 18 Channel CWDM MUX DEMUX LGX For Simplex BIDI Network Operations Rock Solid 18 Channel CWDM MUX DEMUX LGX For Simplex BIDI Network Operations Rock Solid 18 Channel CWDM MUX DEMUX LGX For Simplex BIDI Network Operations
Product Details
Channels:
18 Channels
Type:
CWDM Mux Or Demux
Form Factor:
LGX Box Plastic
Configuration Ports:
Monitor, Express Port (customer Choice)
Channel Spacing:
20nm
Wavelength Range:
1270-1610nm
Highlight:

Rock Solid CWDM MUX

,

18 Channel CWDM MUX

,

optical multiplexer For Network

Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
Please send inquiry to sales@huajiayu.com
Packaging Details
HJY LOGO , Neutrial Packing or with OEM LOGO
Delivery Time
3~7 working days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000000/month
Related Products
Good price 8 Channels 1470 to 1610nm With 1310nm Port LC/UPC Dual Fiber CWDM MUX DEMUX ABS BOX online

8 Channels 1470 to 1610nm With 1310nm Port LC/UPC Dual Fiber CWDM MUX DEMUX ABS BOX

Get Best Price
Good price 1RU Rack Mount 8CH Duplex Dual Fiber 1470nm to 1610nm CWDM Mux Demux Optical Networking Solution for Flexible Data Transmission online

1RU Rack Mount 8CH Duplex Dual Fiber 1470nm to 1610nm CWDM Mux Demux Optical Networking Solution for Flexible Data Transmission

Get Best Price
Good price High Channel Isolation 1470nm to 1610nm 1U 19inch 8CH Duplex CWDM Mux and Demux for 5G Network Solution online

High Channel Isolation 1470nm to 1610nm 1U 19inch 8CH Duplex CWDM Mux and Demux for 5G Network Solution

Get Best Price
Good price Dual Fiber 18 Channels CWDM OADM Duplex CWDM Multiplexer Demultiplexer 1RU Rack Mount online

Dual Fiber 18 Channels CWDM OADM Duplex CWDM Multiplexer Demultiplexer 1RU Rack Mount

Get Best Price
Contact Us
8613556217949
francesgdut@gmail.com
Contact Now
Product Description

Rock Solid 18 Channel CWDM MUX DEMUX LGX Plastic Box for Simplex BIDI Network Operations with ITU Compliant Low Loss Performance

If you're in search of a reliable solution for your simplex BIDI network operations, look no further than our Rock Solid 18 Channel CWDM MUX DEMUX LGX Plastic Box. This top - tier device is designed to meet the most demanding network requirements.

The 18 - channel configuration provides ample capacity to handle a large volume of data traffic, ensuring smooth and efficient network operations. It strictly adheres to ITU standards, guaranteeing seamless compatibility with existing ITU - compliant networks. With its low - loss performance, signal degradation is minimized, enabling high - speed and stable data transmission. Housed in a durable plastic box, it's not only lightweight but also resistant to various environmental factors, making it suitable for diverse installation scenarios.

Ideal for: Single-fiber network upgrades, cellular backhaul, and high-capacity video distribution systems requiring compact, plug-and-play wavelength management.



Simplex CWDM MUX and DEMUX
Multiplexer (MUX) and demultiplexer (DEMUX) are combined together into a single piece of equipment for bi-directional data transmission over one fiber.
Simplex Bi-Directional Transmission should be used in pairs, MUX/DEMUX Portfor specific wavelength must be opposite CWDM

HJY CWDM Mux/Demux is a passive technology, it allows for any protocol to be transported over the link, as long as it is at a specific wavelength (i.e. T1 over fiber at 1570nm transported alongside 10Gbps Ethernet at 1590nm). This allows for long-term future proofing of the networking infrastructure because the multiplexers simply refract light at any network speed, regardless of the protocol being deployed.

HJY provides a complete portfolio of CWDM Mux Demux and Optical Add Drop Multiplexer (OADM) units to suit all applications such as: Gigabit & 10G Ethernet, SDH/SONET, ATM, ESCON, Fibre Channel, FTTx and CATV. And we provide optional port configurations such as: Express Port, Monitor Port, 1310nm passband port and 1550nm port for these multiplexers according to customer choice.

Maximize Your Fiber with WDM Network
A single fiber can be shared for multiple different data or services in WDM network. It maximizes the usefulness of fiber and generates substantial savings.
Rock Solid 18 Channel CWDM MUX DEMUX LGX For Simplex BIDI Network Operations 1
Mix of Services Multiplexing at Any Rate
Flexible mix of 1G/10G/25G/40G/100G/200G Ethernet, 8G/16G FC, SAN, OTN, SDH/SONET and native video services, it's transparent to any rate, any service multiplexing and upgrade
Rock Solid 18 Channel CWDM MUX DEMUX LGX For Simplex BIDI Network Operations 2
Product Specification
Wavelength
1270-1610nm
Channel Spacing
20nm
Channel Passband
±6.5nm
Technology
TFF (Thin Film Filter)
Insertion Loss
Regular :≤ 5.4dB (With 8 Skip 0:≤3.0dB)
Link Loss(A+B)
Regular :≤ 6.2dB (With 8 Skip 0:≤4.0dB)
Center Wavelength Accuracy
±0.05nm
Return Loss
≥ 45dB
Directivity
≥ 45dB
Polarization Mode Dispersion
≤ 0.1ps
Polarization Dependent Loss
≤ 0.3dB
Channel Isolation
Adjacent ≥30dB Non-adjacent ≥45dB
Connector
LC/UPC
Temperature
Operating -40 to 85°C   Storage -40 to 85°C
Net Weight
LGX Box Plastic 0.1KG
Dimensions (HxWxD)
LGX Box Plastic 20*15*9cm

Note: Specified with connectors.
