Home > products > CWDM OADM >
6 Channel CWDM MUX DEMUX LGX Box Plastic Simplex For Telecom Communitcation

6 Channel CWDM MUX DEMUX LGX Box Plastic Simplex For Telecom Communitcation

6 Channel CWDM MUX

Telecom CommunitcationCWDM MUX

Passive power DEMUX LGX

Place of Origin:

China

Brand Name:

HJY

Certification:

CE ROHS FCC

Model Number:

HJY-CWDM-6CH-BIDI-LGX-P

Contact Us
Request A Quote

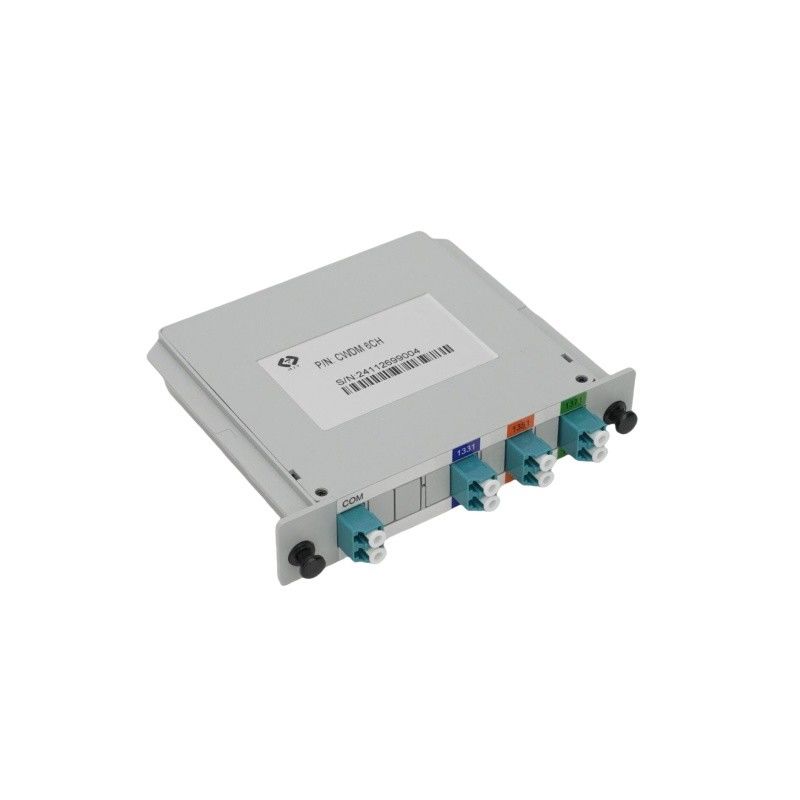

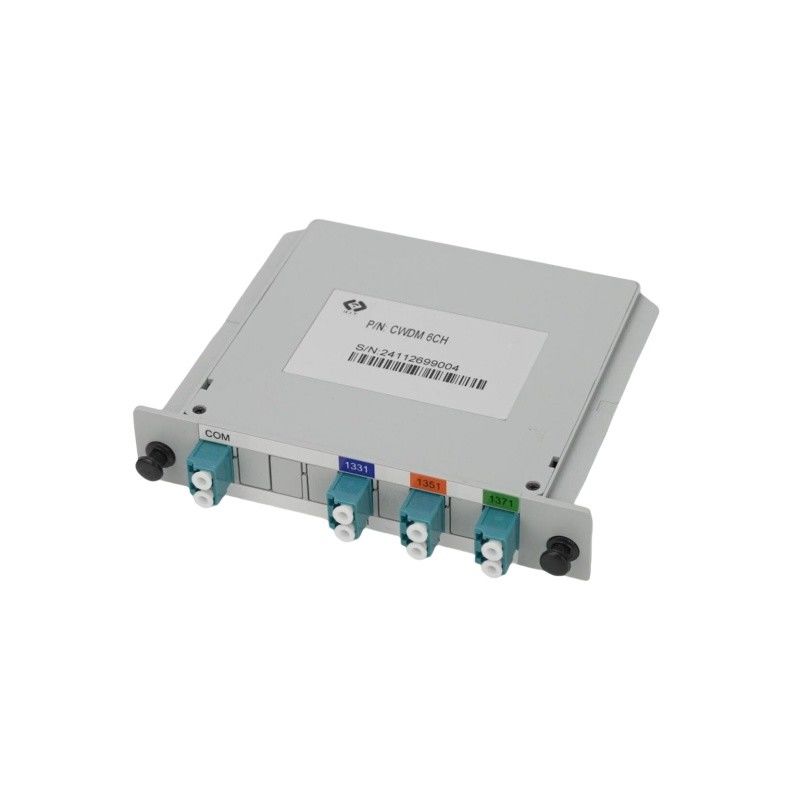

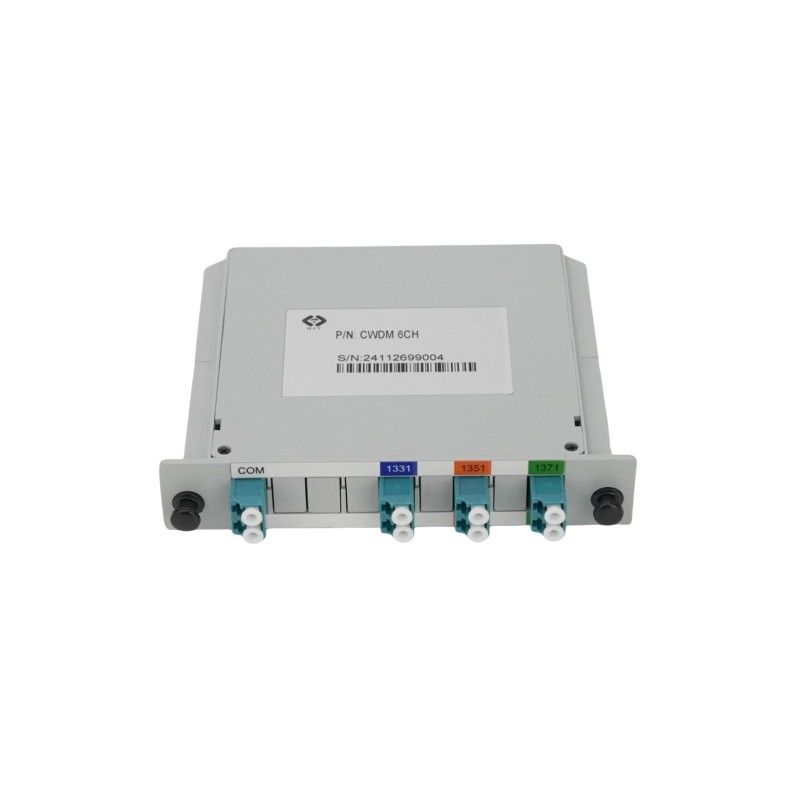

6 Channel CWDM MUX DEMUX LGX Box Plastic Simplex For Telecom Communitcation
6 Channel CWDM MUX DEMUX LGX Box Plastic Simplex For Telecom Communitcation 6 Channel CWDM MUX DEMUX LGX Box Plastic Simplex For Telecom Communitcation 6 Channel CWDM MUX DEMUX LGX Box Plastic Simplex For Telecom Communitcation
Product Details
Channels:
6 Channels
Type:
CWDM Mux Or Demux
Form Factor:
LGX Box Plastic
Configuration Ports:
Monitor, Express Port (customer Choice)
Power:
Passive, No Electric Power Required
Insertion Loss:
Low
Installation:
Simple To Install, Requires No Configuration Or Maintenance
Usage:
Used In Pair With Another 18 Channels 1RU Rack Mount Box For Duplex Dual Fiber Transmission
Highlight:

6 Channel CWDM MUX

,

Telecom CommunitcationCWDM MUX

,

Passive power DEMUX LGX

Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
Please send inquiry to sales@huajiayu.com
Packaging Details
HJY LOGO , Neutrial Packing or with OEM LOGO
Delivery Time
3~7 working days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000000/month
Related Products
Good price 8 Channels 1470 to 1610nm With 1310nm Port LC/UPC Dual Fiber CWDM MUX DEMUX ABS BOX online

8 Channels 1470 to 1610nm With 1310nm Port LC/UPC Dual Fiber CWDM MUX DEMUX ABS BOX

Get Best Price
Good price 1RU Rack Mount 8CH Duplex Dual Fiber 1470nm to 1610nm CWDM Mux Demux Optical Networking Solution for Flexible Data Transmission online

1RU Rack Mount 8CH Duplex Dual Fiber 1470nm to 1610nm CWDM Mux Demux Optical Networking Solution for Flexible Data Transmission

Get Best Price
Good price High Channel Isolation 1470nm to 1610nm 1U 19inch 8CH Duplex CWDM Mux and Demux for 5G Network Solution online

High Channel Isolation 1470nm to 1610nm 1U 19inch 8CH Duplex CWDM Mux and Demux for 5G Network Solution

Get Best Price
Good price Dual Fiber 18 Channels CWDM OADM Duplex CWDM Multiplexer Demultiplexer 1RU Rack Mount online

Dual Fiber 18 Channels CWDM OADM Duplex CWDM Multiplexer Demultiplexer 1RU Rack Mount

Get Best Price
Contact Us
8613556217949
francesgdut@gmail.com
Contact Now
Product Description

6 Channel CWDM MUX or DEMUX LGX Box Plastic Simplex BIDI Transmission for Telecom Communitcation

Introducing our 6 Channel CWDM MUX or DEMUX LGX Box, crafted from durable plastic, designed specifically for telecom communication. This compact yet powerful device features simplex BIDI (Bidirectional) transmission, simplifying fiber optic connections and reducing infrastructure costs.

With six channels, it offers a practical solution for multiplexing or demultiplexing optical signals in telecom networks. Whether you need to combine multiple wavelengths into a single fiber or separate them, this LGX box has got you covered. It ensures reliable data transfer, meeting the high - demand requirements of modern telecom applications. Its easy - to - install design makes it a go - to choice for network upgrades or new installations, providing seamless integration into existing telecom setups.



Simplex CWDM MUX and DEMUX
Multiplexer (MUX) and demultiplexer (DEMUX) are combined together into a single piece of equipment for bi-directional data transmission over one fiber.
Simplex Bi-Directional Transmission should be used in pairs, MUX/DEMUX Portfor specific wavelength must be opposite CWDM

HJY CWDM Mux/Demux is a passive technology, it allows for any protocol to be transported over the link, as long as it is at a specific wavelength (i.e. T1 over fiber at 1570nm transported alongside 10Gbps Ethernet at 1590nm). This allows for long-term future proofing of the networking infrastructure because the multiplexers simply refract light at any network speed, regardless of the protocol being deployed.

HJY provides a complete portfolio of CWDM Mux Demux and Optical Add Drop Multiplexer (OADM) units to suit all applications such as: Gigabit & 10G Ethernet, SDH/SONET, ATM, ESCON, Fibre Channel, FTTx and CATV. And we provide optional port configurations such as: Express Port, Monitor Port, 1310nm passband port and 1550nm port for these multiplexers according to customer choice.

Maximize Your Fiber with WDM Network
A single fiber can be shared for multiple different data or services in WDM network. It maximizes the usefulness of fiber and generates substantial savings.
6 Channel CWDM MUX DEMUX LGX Box Plastic Simplex For Telecom Communitcation 1
Mix of Services Multiplexing at Any Rate
Flexible mix of 1G/10G/25G/40G/100G/200G Ethernet, 8G/16G FC, SAN, OTN, SDH/SONET and native video services, it's transparent to any rate, any service multiplexing and upgrade
6 Channel CWDM MUX DEMUX LGX Box Plastic Simplex For Telecom Communitcation 2
Product Specification
Wavelength
1270-1610nm
Channel Spacing
20nm
Channel Passband
±6.5nm
Technology
TFF (Thin Film Filter)
Insertion Loss
Regular :≤ 5.4dB (With 8 Skip 0:≤3.0dB)
Link Loss(A+B)
Regular :≤ 6.2dB (With 8 Skip 0:≤4.0dB)
Center Wavelength Accuracy
±0.05nm
Return Loss
≥ 45dB
Directivity
≥ 45dB
Polarization Mode Dispersion
≤ 0.1ps
Polarization Dependent Loss
≤ 0.3dB
Channel Isolation
Adjacent ≥30dB Non-adjacent ≥45dB
Connector
LC/UPC
Temperature
Operating -40 to 85°C   Storage -40 to 85°C
Net Weight
LGX Box Plastic 0.1KG
Dimensions (HxWxD)
LGX Box Plastic 20*15*9cm

Note: Specified with connectors.
