Place of Origin:
China
Brand Name:
HJY
Certification:
CE, ROHS, FCC ISO9001
Model Number:

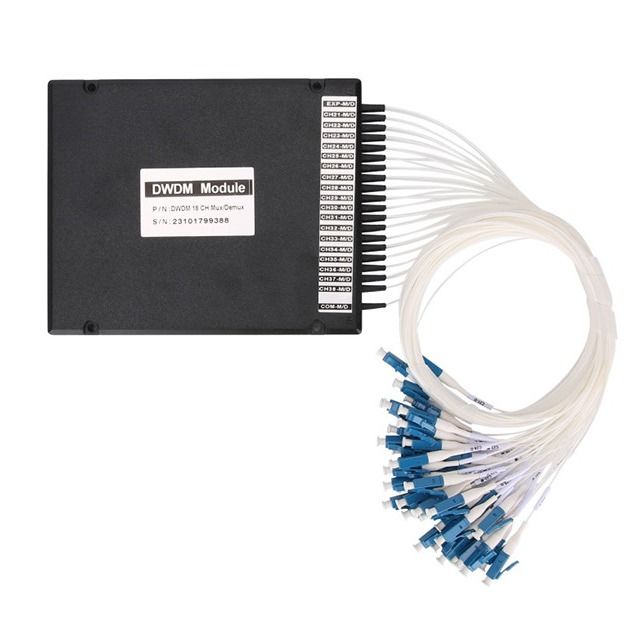

HJY-2~16CH DWDM MUX DEMUX ABS BOX MODULE
DWDM multi-channel multiplexer /demultiplexer (MUX /DEMUX)modules are available on ITU channel spacing of 100GHz. They demonstrate low loss, temperature insensitivity and reliable performance in any system application.
| Features | Applications |
| · Low Insertion Loss · High Isolation · Low PDL · Compact Design · Good channel-to-channel uniformity · Wide Operating Wavelength · Wide Operating Temperature: -20 to 70°C · Telcordia GR-1221 Compliance and RoHS Environmental Protection Standard |
· DWDM systems, fiber optical amplifier · CATV links, wavelgnth routing · PON networks |
|
Channels
|
4
|
8
|
16
|
|
Insertion Loss
|
<1.5dB
|
<2.4dB
|
<4.0dB
|
|
Wavelength Range
|
C- band ITU channels
|
Technology
|
TFF (Thin Film Filter)
|
|
Channel Spacing
|
100GHZ(0.8nm)
|
Passband Ripple
|
≤0.5dB
|
|
Channel Passband
|
±0.11nm
|
Channel Isolation
|
Adjacent ≥30dB
Non-adjacent ≥45dB |
|
Polarization Dependent Loss
|
≤0.2dB
|
Polarization Mode Dispersion
|
≤0.2ps
|
|
Directivity
|
≥50dB
|
Return Loss
|
≥45dB
|
|
Optical Power Handling
|
≤500mW
|
Temperature
|
Operating -40 to 85°C
Storage -40 to 85°C |
|
Fiber Type
|
SMF-28e+
|
Connector
|
LC/SC/FC or other
|
|
Net Weight
|
0.25kg
|
Package dimensions
|
100*80*10mm
120*80*18mm Or other |
|
Dense Wavelength Division Multiplexing (DWDM)
|
||||||
|
ITU Grid: C-Band, 100 GHz Spacing
|
||||||
|
Channel
|
Frequency
|
Wavelength
|
|
Channel
|
Frequency
|
Wavelength
|
|
(#)
|
(GHz)
|
(nm)
|
(#)
|
(GHz)
|
(nm)
|
|
|
1
|
190100
|
1577.03
|
37
|
193700
|
1547.72
|
|
|
2
|
190200
|
1576.20
|
38
|
193800
|
1546.92
|
|
|
3
|
190300
|
1575.37
|
39
|
193900
|
1546.12
|
|
|
4
|
190400
|
1574.54
|
40
|
194000
|
1545.32
|
|
|
5
|
190500
|
1573.71
|
41
|
194100
|
1544.53
|
|
|
6
|
190600
|
1572.89
|
42
|
194200
|
1543.73
|
|
|
7
|
190700
|
1572.06
|
43
|
194300
|
1542.94
|
|
|
8
|
190800
|
1571.24
|
44
|
194400
|
1542.14
|
|
|
9
|
190900
|
1570.42
|
45
|
194500
|
1541.35
|
|
|
10
|
191000
|
1569.59
|
46
|
194600
|
1540.56
|
|
|
11
|
191100
|
1568.77
|
47
|
194700
|
1539.77
|
|
|
12
|
191200
|
1567.95
|
48
|
194800
|
1538.98
|
|
|
13
|
191300
|
1567.13
|
49
|
194900
|
1538.19
|
|
|
14
|
191400
|
1566.31
|
50
|
195000
|
1537.40
|
|
|
15
|
191500
|
1565.50
|
51
|
195100
|
1536.61
|
|
|
16
|
191600
|
1564.68
|
52
|
195200
|
1535.82
|
|
|
17
|
191700
|
1563.86
|
53
|
195300
|
1535.04
|
|
|
18
|
191800
|
1563.05
|
54
|
195400
|
1534.25
|
|
|
19
|
191900
|
1562.23
|
55
|
195500
|
1533.47
|
|
|
20
|
192000
|
1561.41
|
56
|
195600
|
1532.68
|
|
|
21
|
192100
|
1560.61
|
57
|
195700
|
1531.90
|
|
|
22
|
192200
|
1559.79
|
58
|
195800
|
1531.12
|
|
|
23
|
192300
|
1558.98
|
59
|
195900
|
1530.33
|
|
|
24
|
192400
|
1558.17
|
60
|
196000
|
1529.55
|
|
|
25
|
192500
|
1557.36
|
61
|
196100
|
1528.77
|
|
|
26
|
192600
|
1556.55
|
62
|
196200
|
1527.99
|
|
|
27
|
192700
|
1555.75
|
63
|
196300
|
1527.22
|
|
|
28
|
192800
|
1554.94
|
64
|
196400
|
1526.44
|
|
|
29
|
192900
|
1554.13
|
65
|
196500
|
1525.66
|
|
|
30
|
193000
|
1553.33
|
66
|
196600
|
1524.89
|
|
|
31
|
193100
|
1552.52
|
67
|
196700
|
1524.11
|
|
|
32
|
193200
|
1551.72
|
68
|
196800
|
1523.34
|
|
|
33
|
193300
|
1550.92
|
69
|
196900
|
1522.56
|
|
|
34
|
193400
|
1550.12
|
70
|
197000
|
1521.79
|
|
|
35
|
193500
|
1549.32
|
71
|
197100
|
1521.02
|
|
|
36
|
193600
|
1549.51
|
72
|
197200
|
1520.25
|
|
|
Note:
|
For 200GHz spacing use either odd or even numbered channels.
|
|||||
|
DWDM
|
No. of CHs
|
1st CH
|
Fiber Type
|
Fiber Length
|
In/Out Connector
|
|
100=100G
200=200G |
04=4 Channel
08=8 Channel 16=16 Channel 18=18 Channel N=N Channel …… |
11=1568.77nm
20=1561.41nm 49=1538.19nm …… 60=1529.55nm SS=special |
1-G652D
2-G657A 3-Other |
1=1m
2=1.5m S=Specify |
0=None
1=FC/APC 2=FC/UPC 3=SC/APC 4=SC/UPC 5=LC/UPC …… |
