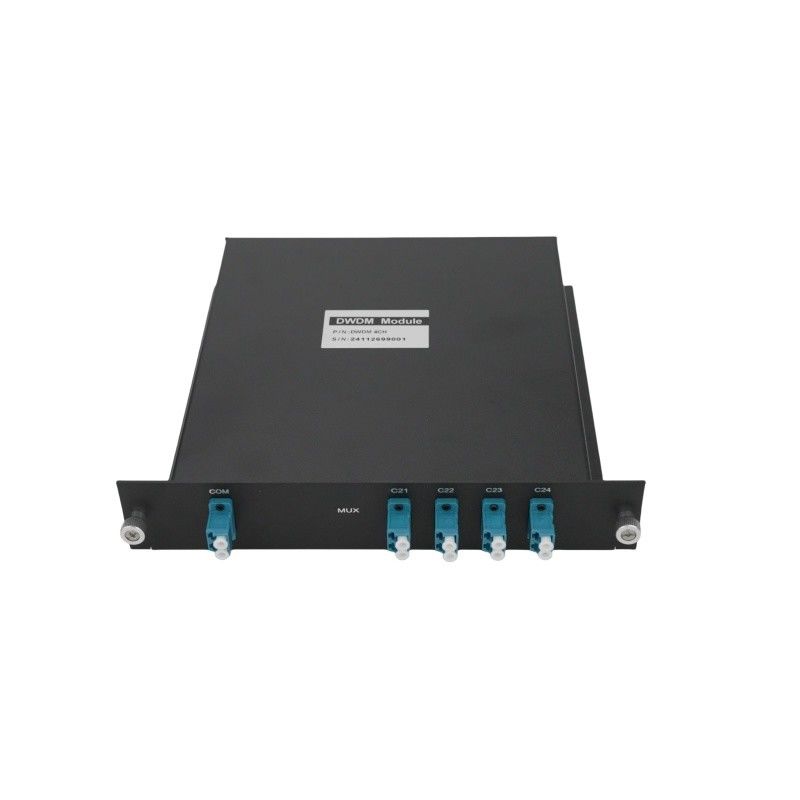

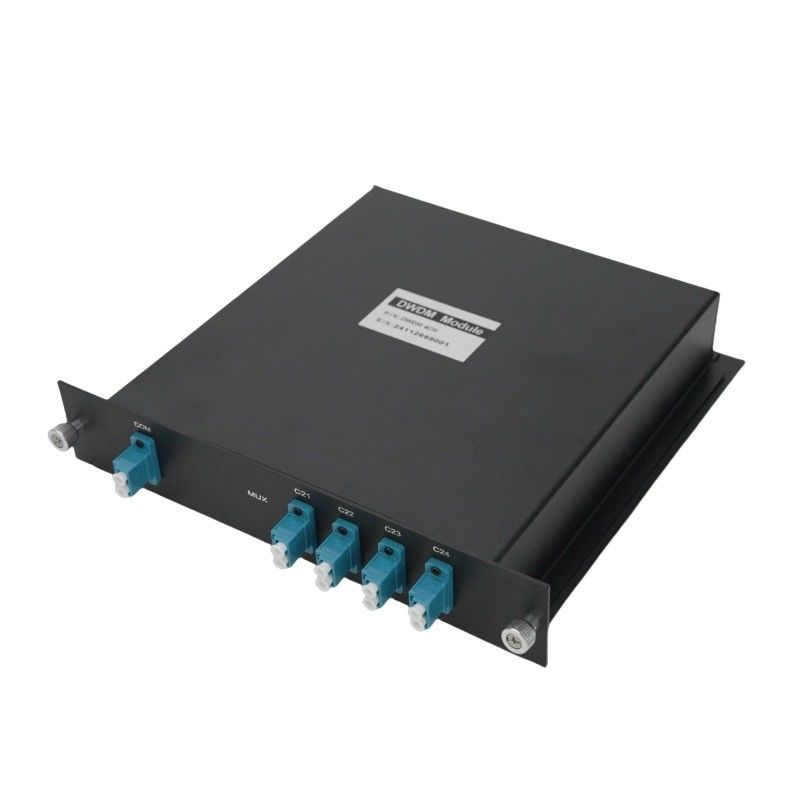

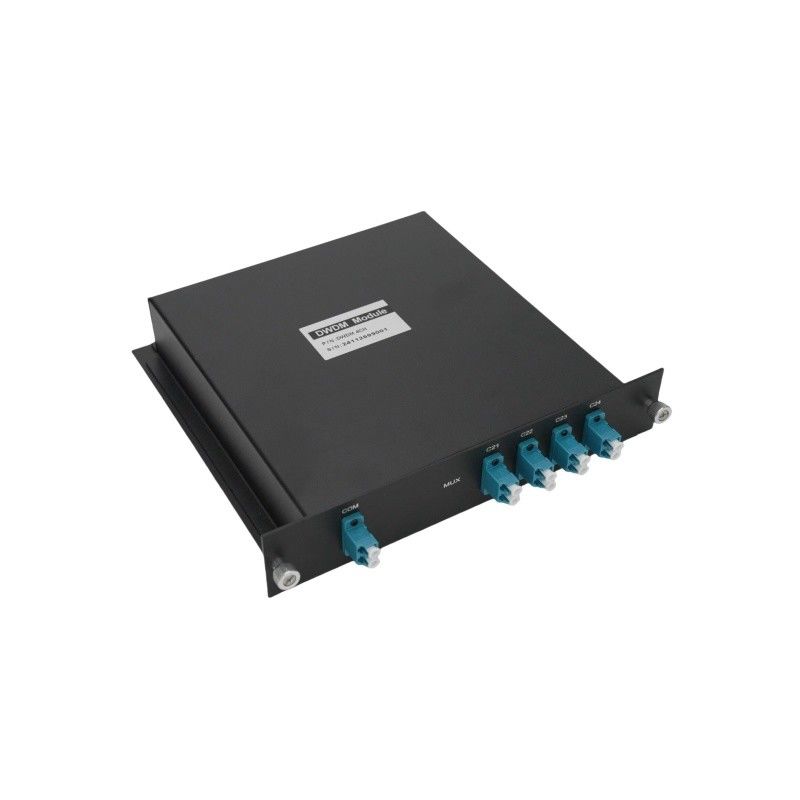

Upgrade Your Network Efficiency with Innovative Dual Fiber Design 1U 4CH DWDM Mux Demux LGX Box for Network Expansion

Upgrade Your Network Efficiency with Innovative Dual Fiber Design 1U 4CH DWDM Mux Demux LGX Box for Network Expansion

4ch dwdm mux demux

1u dwdm oadm

1u dwdm mux demux

Place of Origin:

China

Brand Name:

HJY

Certification:

CE, ROHS, FCC

Model Number:

HJY-DWDM-D4CH-19INCH-LGX-2

Chat Now
Chat Now
Upgrade Your Network Efficiency with Innovative Dual Fiber Design 1U 4CH DWDM Mux Demux LGX Box for Network Expansion
Upgrade Your Network Efficiency with Innovative Dual Fiber Design 1U 4CH DWDM Mux Demux LGX Box for Network Expansion Upgrade Your Network Efficiency with Innovative Dual Fiber Design 1U 4CH DWDM Mux Demux LGX Box for Network Expansion Upgrade Your Network Efficiency with Innovative Dual Fiber Design 1U 4CH DWDM Mux Demux LGX Box for Network Expansion Upgrade Your Network Efficiency with Innovative Dual Fiber Design 1U 4CH DWDM Mux Demux LGX Box for Network Expansion
Product Details
Channels:
4CH Dual Fiber
Wavelength:
C20 To C24
Grid:
ITU-T G.694.1 100GHZ
Type:
Passive
Module:
LGX Box
Insertion Loss:
<2.4dB
Highlight:

4ch dwdm mux demux

,

1u dwdm oadm

,

1u dwdm mux demux

Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
Please find sales@huajiayu.com
Packaging Details
Neutrial Standard Packing
Delivery Time
3~7 working days
Payment Terms
L/C, T/T, Western Union
Supply Ability
10000000pcs/month
Related Products
Good price 500mW Passive DWDM 18CH DEMUX Passive MUX Handling SMF 28e Fiber C22 To C39 online

500mW Passive DWDM 18CH DEMUX Passive MUX Handling SMF 28e Fiber C22 To C39

Get Best Price
Good price Customizable 8CH DWDM OADM C Band Fiber Optic Mux For Telecom Data Centers online

Customizable 8CH DWDM OADM C Band Fiber Optic Mux For Telecom Data Centers

Get Best Price
Good price 8CH ABS Box OADM DWDM Customizable Wavelengths DWDM MUX DEMUX Data Transmission online

8CH ABS Box OADM DWDM Customizable Wavelengths DWDM MUX DEMUX Data Transmission

Get Best Price
Good price Upgrade Your Network Efficiency with Innovative Dual Fiber Design 1U 4CH DWDM Mux Demux LGX Box for Network Expansion online Video

Upgrade Your Network Efficiency with Innovative Dual Fiber Design 1U 4CH DWDM Mux Demux LGX Box for Network Expansion

Get Best Price
Contact Us
8613556217949
francesgdut@gmail.com
Chat Now
Product Description

Upgrade Your Network Efficiency with Innovative Dual Fiber Design 1U 4CH DWDM Mux Demux LGX Box for Network Expansion


Upgrade your network infrastructure with our state - of - the - art 1U 4CH DWDM Mux Demux LGX Box featuring an innovative dual - fiber design. This compact yet powerful device is engineered to drive network expansion like never before.

The dual - fiber design offers enhanced data transmission capabilities, ensuring high - speed and reliable connectivity. With four channels, it provides the flexibility to handle multiple data streams simultaneously, significantly improving network efficiency. The 1U form factor makes it easy to install in standard network racks, saving valuable space. Whether you're building a new network or upgrading an existing one, this LGX box is your go - to solution for seamless network expansion and optimized performance.

The 4ch DWDM MUX DEMUX is designed by HJY, wavelength from C20 to C24(1561.42nm~1555.75nm), (By the way, we can support customize other waves); in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range.

The 4ch DWDM is totally passive and LGX box module device, it can plug in the 2-slot 1 U rack; the product insertion loss is＜2.4dB.And it conjunct with The DWDM amplifiers and DCM device, the 8ch DWDM transfer system can support a long distance transmission.

Features
· Low Insertion Loss
· High Isolation
· Low PDL
· Compact Design
· Good channel-to-channel uniformity
· Wide Operating Wavelength
· Wide Operating Temperature: -20 to 70°C
· Telcordia GR-1221 Compliance and RoHS Environmental Protection Standard

Applications
· DWDM systems, fiber optical amplifier
· CATV links, wavelgnth routing
· PON networks

Product specification
Channels
4
8
16
Insertion Loss
<1.5dB
<2.4dB
<4.0dB

Wavelength Range
C- band ITU channels
Technology
TFF (Thin Film Filter)
Channel Spacing
100GHZ(0.8nm)
Passband Ripple
≤0.5dB
Channel Passband
±0.11nm
Channel Isolation
Adjacent ≥30dB
Non-adjacent ≥45dB
Polarization Dependent Loss
≤0.2dB
Polarization Mode Dispersion
≤0.2ps
Directivity
≥50dB
Return Loss
≥45dB
Optical Power Handling
≤500mW
Temperature
Operating -40 to 85°C
Storage -40 to 85°C
Fiber Type
SMF-28e+
Connector
LC/SC/FC or other
Net Weight
LGX: 0.5kg
Package dimensions
208*200*39mm(LGX)
203*197*20.2mm(LGX)
482*440*230mm(1U)

Notes:
1) HJY Support Customized Design, please contact us by email sales@huajiayu.com
2) If you want to order, please email us and tell us how many waves and which waves do you want, we will send you more detail datasheet which you want.

Package Information



Dense Wavelength Division Multiplexing (DWDM)
ITU Grid: C-Band, 100 GHz Spacing
Channel
Frequency
Wavelength

Channel
Frequency
Wavelength
(#)
(GHz)
(nm)
(#)
(GHz)
(nm)
1
190100
1577.03
37
193700
1547.72
2
190200
1576.20
38
193800
1546.92
3
190300
1575.37
39
193900
1546.12
4
190400
1574.54
40
194000
1545.32
5
190500
1573.71
41
194100
1544.53
6
190600
1572.89
42
194200
1543.73
7
190700
1572.06
43
194300
1542.94
8
190800
1571.24
44
194400
1542.14
9
190900
1570.42
45
194500
1541.35
10
191000
1569.59
46
194600
1540.56
11
191100
1568.77
47
194700
1539.77
12
191200
1567.95
48
194800
1538.98
13
191300
1567.13
49
194900
1538.19
14
191400
1566.31
50
195000
1537.40
15
191500
1565.50
51
195100
1536.61
16
191600
1564.68
52
195200
1535.82
17
191700
1563.86
53
195300
1535.04
18
191800
1563.05
54
195400
1534.25
19
191900
1562.23
55
195500
1533.47
20
192000
1561.41
56
195600
1532.68
21
192100
1560.61
57
195700
1531.90
22
192200
1559.79
58
195800
1531.12
23
192300
1558.98
59
195900
1530.33
24
192400
1558.17
60
196000
1529.55
25
192500
1557.36
61
196100
1528.77
26
192600
1556.55
62
196200
1527.99
27
192700
1555.75
63
196300
1527.22
28
192800
1554.94
64
196400
1526.44
29
192900
1554.13
65
196500
1525.66
30
193000
1553.33
66
196600
1524.89
31
193100
1552.52
67
196700
1524.11
32
193200
1551.72
68
196800
1523.34
33
193300
1550.92
69
196900
1522.56
34
193400
1550.12
70
197000
1521.79
35
193500
1549.32
71
197100
1521.02
36
193600
1549.51
72
197200
1520.25
Note:
For 200GHz spacing use either odd or even numbered channels.

Ordering Information:
DWDM
No. of CHs
1st CH
Fiber Type
Fiber Length
In/Out Connector
100=100G
200=200G
04=4 Channel
08=8 Channel
16=16 Channel
18=18 Channel
N=N Channel
……
11=1568.77nm
20=1561.41nm
49=1538.19nm
……
60=1529.55nm
SS=special
1-G652D
2-G657A
3-Other
1=1m
2=1.5m
S=Specify
0=None
1=FC/APC
2=FC/UPC
3=SC/APC
4=SC/UPC
5=LC/UPC
……
