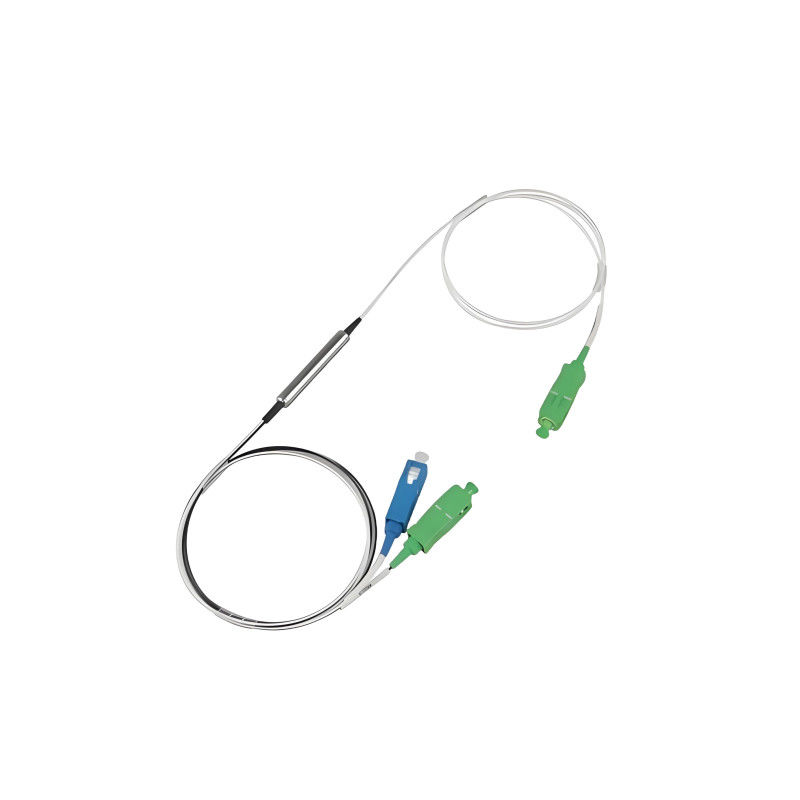

Precision DWDM ITU Component 3 Ports 100GHZ DWDM Filter for Complex Network Architectures
|
Features
Low insertion loss
High channel isolation Low polarization dependent loss Exceptional reliability and stabilit |
Applications
Access networks
Metro WDM systems Long haul WDM systems Enterprise networks |
Specifications
| Parameters | Unit | Specification | |
| Center Wavelength | nm | CH10~CH63 (ITU Grid) | |
| Channel Spacing | nm | 0.8 | |
| Bandwidth @-0.5dB (Typical) | nm | ≥0.22 (0.4) | |
|
Pass Channel |
Insertion Loss (Typical) |
dB |
≤1.0 (0.6) |
| Adjacent/Non-Adjacent Isolation | ≥25/35 | ||
| Ripple | ≤0.3 | ||
|
Reflect Channel |
Insertion Loss (Typical) |
dB |
≤0.6 (0.25) |
| Isolation (Typical) | ≥10 (18) | ||
| Return Loss/Directivity (Typical) | dB | ≥45/50 (50/55) | |
| Polarization Dependent Loss | dB | ≤0.1 | |
| Insertion Loss Temp. Sensitivity | dB/°C | ≤0.005 | |
| Power Handling | mW | 300 | |
| Operating Temperature | °C | -5~70 | |
Note:
|
Dense Wavelength Division Multiplexing (DWDM)
|
||||||
|
ITU Grid: C-Band, 100 GHz Spacing
|
||||||
|
Channel
|
Frequency
|
Wavelength
|
|
Channel
|
Frequency
|
Wavelength
|
|
(#)
|
(GHz)
|
(nm)
|
(#)
|
(GHz)
|
(nm)
|
|
|
1
|
190100
|
1577.03
|
37
|
193700
|
1547.72
|
|
|
2
|
190200
|
1576.20
|
38
|
193800
|
1546.92
|
|
|
3
|
190300
|
1575.37
|
39
|
193900
|
1546.12
|
|
|
4
|
190400
|
1574.54
|
40
|
194000
|
1545.32
|
|
|
5
|
190500
|
1573.71
|
41
|
194100
|
1544.53
|
|
|
6
|
190600
|
1572.89
|
42
|
194200
|
1543.73
|
|
|
7
|
190700
|
1572.06
|
43
|
194300
|
1542.94
|
|
|
8
|
190800
|
1571.24
|
44
|
194400
|
1542.14
|
|
|
9
|
190900
|
1570.42
|
45
|
194500
|
1541.35
|
|
|
10
|
191000
|
1569.59
|
46
|
194600
|
1540.56
|
|
|
11
|
191100
|
1568.77
|
47
|
194700
|
1539.77
|
|
|
12
|
191200
|
1567.95
|
48
|
194800
|
1538.98
|
|
|
13
|
191300
|
1567.13
|
49
|
194900
|
1538.19
|
|
|
14
|
191400
|
1566.31
|
50
|
195000
|
1537.40
|
|
|
15
|
191500
|
1565.50
|
51
|
195100
|
1536.61
|
|
|
16
|
191600
|
1564.68
|
52
|
195200
|
1535.82
|
|
|
17
|
191700
|
1563.86
|
53
|
195300
|
1535.04
|
|
|
18
|
191800
|
1563.05
|
54
|
195400
|
1534.25
|
|
|
19
|
191900
|
1562.23
|
55
|
195500
|
1533.47
|
|
|
20
|
192000
|
1561.41
|
56
|
195600
|
1532.68
|
|
|
21
|
192100
|
1560.61
|
57
|
195700
|
1531.90
|
|
|
22
|
192200
|
1559.79
|
58
|
195800
|
1531.12
|
|
|
23
|
192300
|
1558.98
|
59
|
195900
|
1530.33
|
|
|
24
|
192400
|
1558.17
|
60
|
196000
|
1529.55
|
|
|
25
|
192500
|
1557.36
|
61
|
196100
|
1528.77
|
|
|
26
|
192600
|
1556.55
|
62
|
196200
|
1527.99
|
|
|
27
|
192700
|
1555.75
|
63
|
196300
|
1527.22
|
|
|
28
|
192800
|
1554.94
|
64
|
196400
|
1526.44
|
|
|
29
|
192900
|
1554.13
|
65
|
196500
|
1525.66
|
|
|
30
|
193000
|
1553.33
|
66
|
196600
|
1524.89
|
|
|
31
|
193100
|
1552.52
|
67
|
196700
|
1524.11
|
|
|
32
|
193200
|
1551.72
|
68
|
196800
|
1523.34
|
|
|
33
|
193300
|
1550.92
|
69
|
196900
|
1522.56
|
|
|
34
|
193400
|
1550.12
|
70
|
197000
|
1521.79
|
|
|
35
|
193500
|
1549.32
|
71
|
197100
|
1521.02
|
|
|
36
|
193600
|
1548.51
|
72
|
197200
|
1520.25
|
|
|
Note:
|
For 200GHz spacing use either odd or even numbered channels.
|
|||||
|
HJY-D
|
- Package
|
-Connector Type
|
U/A
|
-Channel Plan
|
-Fiber Type
|
-Fiber Length
|
|
|
S: Steel
|
0: No connector
|
U: UPC
|
C19:
|
25: 250um Fiber
|
005:0.5+/-0.1m
|
|
|
G:Glass
|
1: LC
|
A: APC
|
C20
|
90: 900um Fiber
|
01:1.0+/-0.1m
|
|
|
|
2: SC
|
|
C21
|
|
others
|
|
|
|
3: FC
|
|
others
|
|
|
|
|
|
4: Others
|
|
|
|
|
