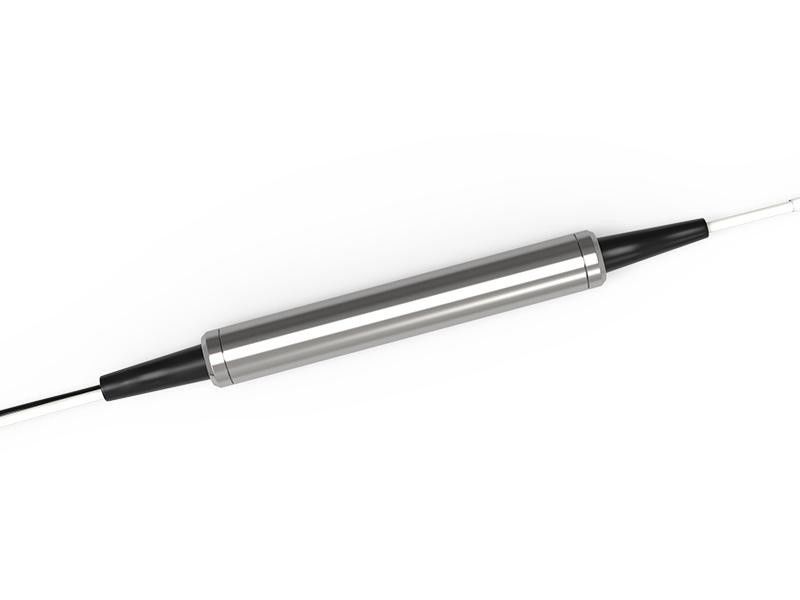

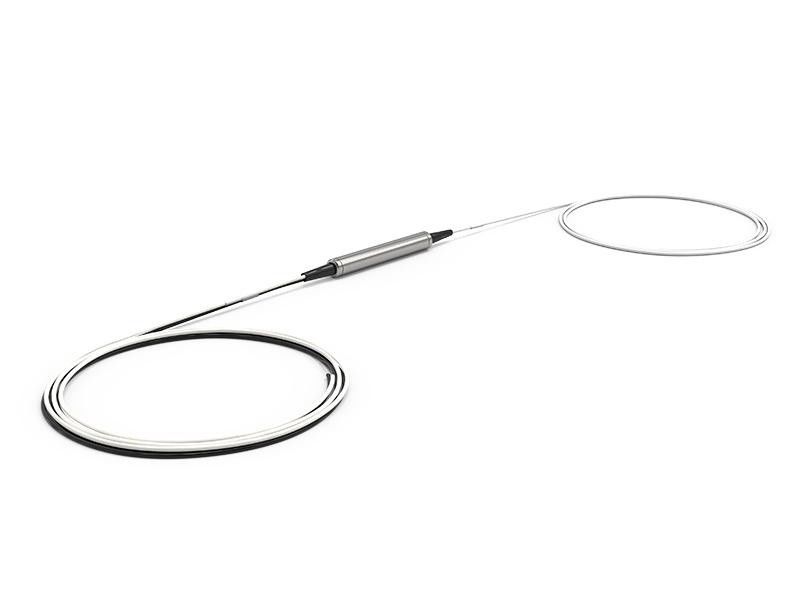

Place of Origin:
China
Brand Name:
HJY
Certification:
CE ROHS FCC
Model Number:
HJY-D-DS1U-C32-2505
|
Parameters
|
Unit
|
Specification
|
|
|
Center Wavelength
|
nm
|
CH10~CH63 (ITU Grid)
|
|
|
Channel Spacing
|
nm
|
0.8
|
|
|
Bandwidth @-0.5dB (Typical)
|
nm
|
≥0.22 (0.4)
|
|
|
Pass Channel
|
Insertion Loss (Typical)
|
dB
|
≤1.0 (0.6)
|
|
Adjacent/Non-Adjacent Isolation
|
≥25/35
|
||
|
Ripple
|
≤0.3
|
||
|
Reflect Channel
|
Insertion Loss (Typical)
|
dB
|
≤0.6 (0.25)
|
|
Isolation (Typical)
|
≥10 (18)
|
||
|
Return Loss/Directivity (Typical)
|
dB
|
≥45/50 (50/55)
|
|
|
Polarization Dependent Loss
|
dB
|
≤0.1
|
|
|
Insertion Loss Temp. Sensitivity
|
dB/°C
|
≤0.005
|
|
|
Power Handling
|
mW
|
300
|
|
|
Operating Temperature
|
°C
|
-5~70
|
|
|
Dense Wavelength Division Multiplexing (DWDM)
|
||||||
|
ITU Grid: C-Band, 100 GHz Spacing
|
||||||
|
Channel
|
Frequency
|
Wavelength
|
|
Channel
|
Frequency
|
Wavelength
|
|
(#)
|
(GHz)
|
(nm)
|
(#)
|
(GHz)
|
(nm)
|
|
|
1
|
190100
|
1577.03
|
37
|
193700
|
1547.72
|
|
|
2
|
190200
|
1576.20
|
38
|
193800
|
1546.92
|
|
|
3
|
190300
|
1575.37
|
39
|
193900
|
1546.12
|
|
|
4
|
190400
|
1574.54
|
40
|
194000
|
1545.32
|
|
|
5
|
190500
|
1573.71
|
41
|
194100
|
1544.53
|
|
|
6
|
190600
|
1572.89
|
42
|
194200
|
1543.73
|
|
|
7
|
190700
|
1572.06
|
43
|
194300
|
1542.94
|
|
|
8
|
190800
|
1571.24
|
44
|
194400
|
1542.14
|
|
|
9
|
190900
|
1570.42
|
45
|
194500
|
1541.35
|
|
|
10
|
191000
|
1569.59
|
46
|
194600
|
||
