Place of Origin:
China
Brand Name:
HJY
Certification:
CE, ROHS, FCC
Model Number:
HJY-FWDM-GT-3
Dimensions (mm)
Product Parameters
| Wavelength | TX1550 RX1310/1490nm |
Technology | TFF (Thin Film Filter) |
| Passband | 1540~1565nm | Reflection | 1260~1500&1590~1650 |
| Passband ripple | ≤0.30dB | IL @ Passband | ≤0.60dB |
| Reflection band ripple | ≤0.20dB | IL @Reflection | ≤0.40dB |
| Transmission isolation (adj channel) | ≥30dB | Transmission isolation (non-adj channel) | ≥50dB |
| Reflection isolation | ≥15dB | Polarization dependent loss | ≤0.1dB |
| Polarization mode dispersion | ≤0.2ps | Thermal Stability | ≤0.005N |
| Directivity | ≥50dB | Return loss | ≥45dB |
| Optical power handling | ≤500mW | Temperature | Operating -40 to 85°C Storage -40 to 85°C |

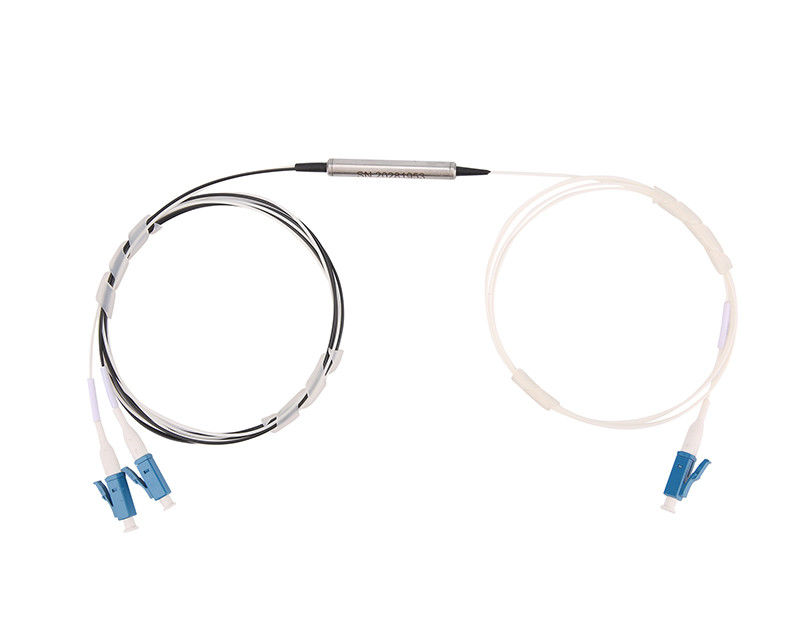

| Fiber type | SMF-28e | Package dimension | Steel ∮5.5 x L34mm ABS 90*20*10nm |
Ordering Information:
|
HJY-FW |
Package |
Connector Type |
U/A |
Wavelength |
Fiber Type |
Fiber Length |
Ports Type |
|
FW |
S: Steel B: ABS BOX Others |
0: No connector 1: LC 2: SC 3: FC 4: Others |
U: UPC A: APC |
T: Transmission wavelength range (nm) R: Transmission wavelength range (nm) |
9: 0.9mm Others |
005: 0.5+/-0.1m 01: 1.0+/-0.1m others |
Com Reflect |
Note.
1) All the specifications are based on the devices without connectors, and guaranteed over wavelength, polarization and temperature.
2)PMD and chromatic dispersion values are guaranteed by design.
3) Specifications are subject to change without notice
