Single Channel 3 Ports FTTH FWDM Filter Low Polarization Dependent Loss

Single Channel FTTH Filter

3 Ports fwdm filter

fwdm filter Low Polarization

Place of Origin:

China

Brand Name:

HJY

Certification:

CE, ROHS, FCC ISO9001

Model Number:

HJY-FWDM-4626-1

Request A Quote

Single Channel 3 Ports FTTH FWDM Filter Low Polarization Dependent Loss

Product Details

Directivity:

≥ 50dB

Operating Temperature:

-25℃ ~ +70℃

Wavelength Range:

1260-1650nm

Return Loss:

≥ 50dB

Insertion Loss:

≤ 0.6dB

Polarization Dependent Loss:

≤ 0.2dB

Power Handling:

≤ 500mW

Isolation:

≥ 30dB

Highlight:

Single Channel FTTH Filter

3 Ports fwdm filter

fwdm filter Low Polarization

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

1~999

Packaging Details

Neutrial Packing or with OEM LOGO

Delivery Time

3~7 working days

Payment Terms

T/T, Western Union, L/C

Supply Ability

100,000 pcs

Steel Tube Type FWDM WDM Filter 1490nm For Telecommunication Data Centers

Get Best Price

Single Channel 3 Ports FTTH FWDM Filter Low Polarization Dependent Loss

Get Best Price

1650nm WDM Filter FWDM Filter Fiber Optic Patch Cable For Signal Separation

Get Best Price

High Power 500mW FWDM Filter Fiber Patch For DWDM Optical Amplifiers And EDFA

Get Best Price

8613556217949

francesgdut@gmail.com

Contact Now

Product Description

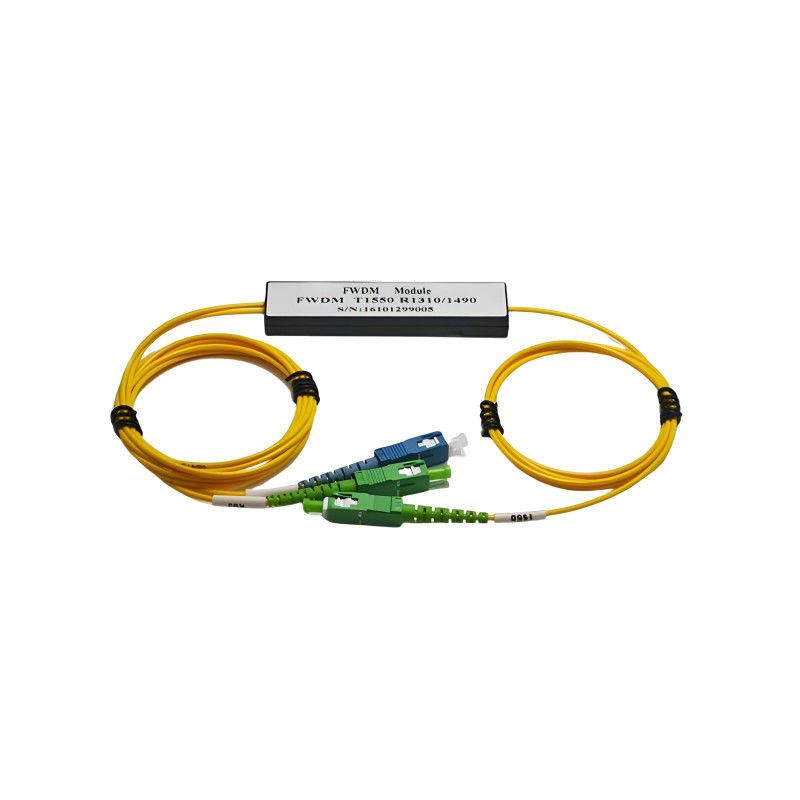

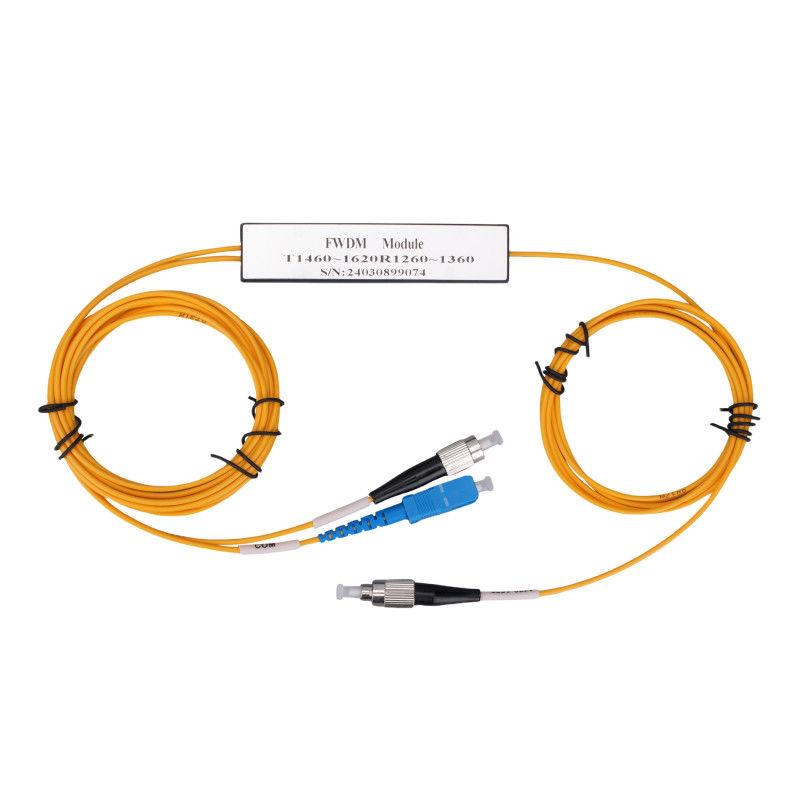

Single Channel 3 Ports FTTH FWDM Filter with Low Polarization Dependent Loss and Exceptional Reliability and Stability

HJY provides provide Passive FWDM Filter TX1540-1560 RX 1260-1500&1575-1650 is low loss and reliable performances. It works in FTTH/FTTX, in PON (Support GEPON,XGS-PON,NG-PON2) system works on 1260-1500&1575-1650nm,and CATV signal is delivered over same fiber using 1550±10nm.

FTTX Filter WDM module extensively used in EDFA, Raman amplifiers, WDM networks, and fiber optics instrumentation is based on Thin Film Filter (TFF) technology. The device combines or separates light at different wavelengths in a wide wavelength range. It can expand the capacity of a single fiber to achieve bi-directional communication so that widely used in optical network upgrades and expansion, or introduce new comprehensive business, etc.

FWDM covers the following wavelength windows commonly used in optical fiber systems:
850/1310nm FWDM - for multi-mode fiber communication, CATV and testing instrumentation.
1310/1550nm FWDM - for WDM or DWDM optical communications.
1480/1550nm FWDM - for high-power DWDM optical amplifier and EDFA.
1510/1550nm FWDM - for DWDM multi-channel optical networks.
980/1550nm FWDM - for high performance DWDM optical amplifier and EDFA amplifier.
1310/1490/1550nm FWDM - for PON, FTTX and test instrument.
1310/1550/1625nm FWDM - for testing active fibers in service.
1310/1490/1550/1625nm FWDM - for combining or separating 1625nm channel with three triplex wavelength 1310nm, 1490nm and 1550nm so that 1625nm channel can be added into the existing triplex FTTH system

Dimensions (mm)

Product Parameters

Wavelength	TX1550 RX1310/1490nm	Technology	TFF (Thin Film Filter)
Passband	1540~1565nm	Reflection	1260~1500&1590~1650
Passband ripple	≤0.30dB	IL @ Passband	≤0.60dB
Reflection band ripple	≤0.20dB	IL @Reflection	≤0.40dB
Transmission isolation (adj channel)	≥30dB	Transmission isolation (non-adj channel)	≥50dB
Reflection isolation	≥15dB	Polarization dependent loss	≤0.1dB
Polarization mode dispersion	≤0.2ps	Thermal Stability	≤0.005N
Directivity	≥50dB	Return loss	≥45dB
Optical power handling	≤500mW	Temperature	Operating -40 to 85°C Storage -40 to 85°C
Fiber type	SMF-28e	Package dimension	Steel ∮5.5 x L34mm ABS 902010nm

Application Diagram

The Filter WDM system uses a Multiplexer at the transmitter to combine several wavelengths together, each one carry different signal with bite-rate up to 10G and a demultiplexer at the receiver to split them apart. Due to its low insertion loss, low polarization dependence and high isolation, the filter is widely used in CATV system, FTTx and PON system, Fiber Communication, Test Instrument and etc.

Ordering Information

HJY-FW	Package	Connector Type	U/A	Wavelength	Fiber Type	Fiber Length	Ports Type
FW	S: Steel B: ABS BOX Others	0: No conn 1: LC 2: SC 3: FC 4: Others	U: UPC A: APC	T: Transmission wavelength range (nm) R: Transmission wavelength range (nm)	9: 0.9mm 20:2.0mm 30:2.0mm Others	005: 0.5+/-0.1m 01: 1.0+/-0.1m others	Com Reflect Pass

Note.
1) All the specifications are based on the devices without connectors, and guaranteed over wavelength, polarization and temperature.
2)PMD and chromatic dispersion values are guaranteed by design.
