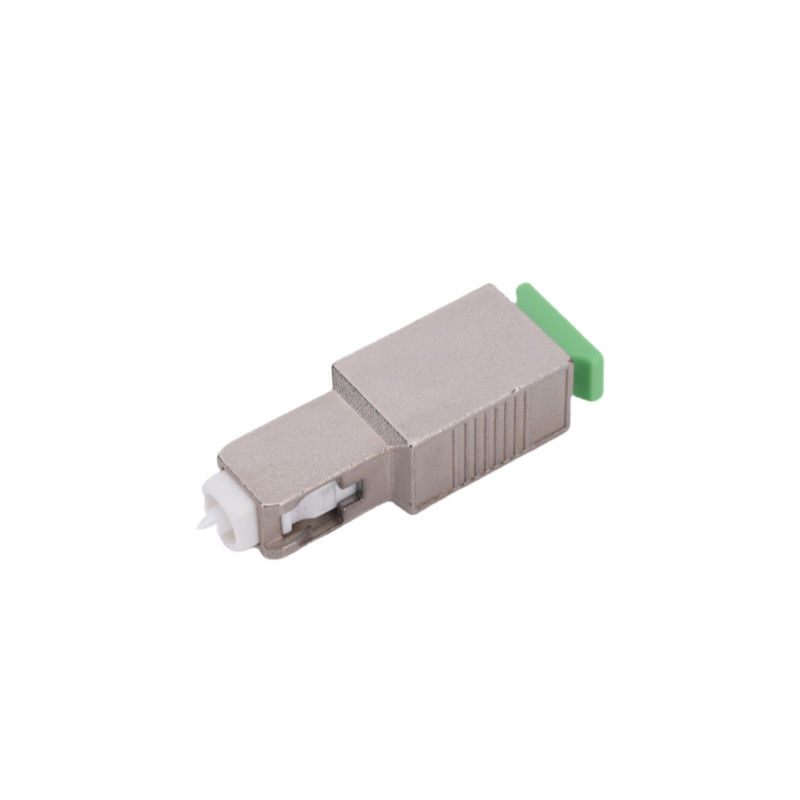

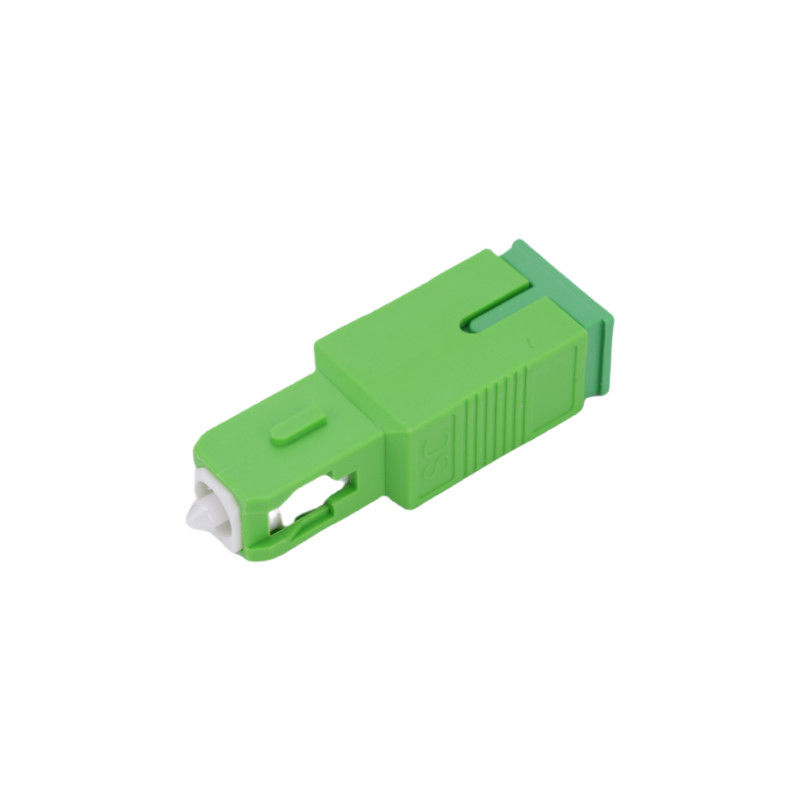

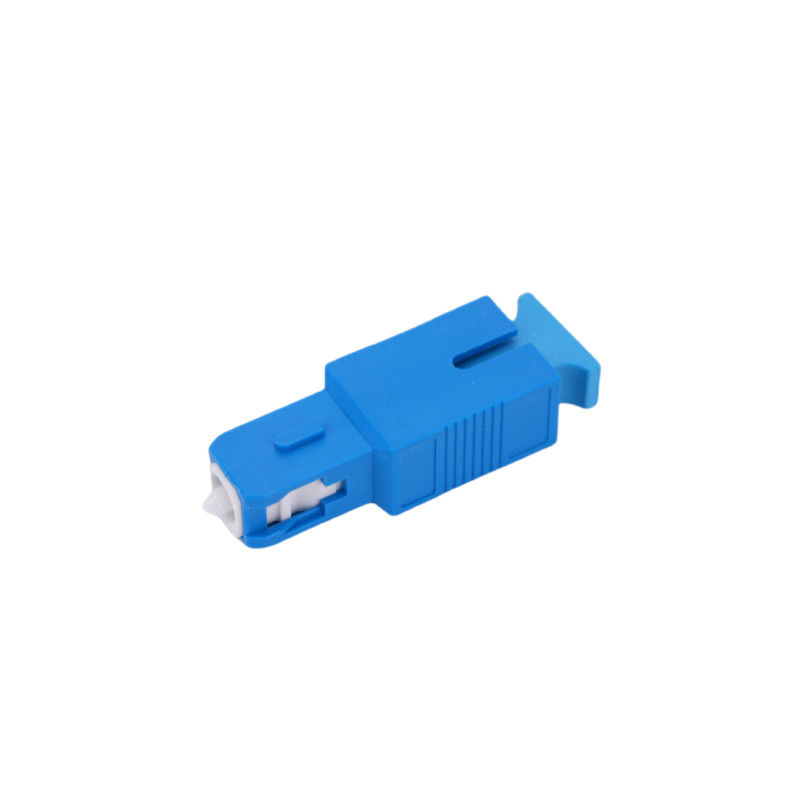

Passive Optical Network Fiber Bragg Grating Reflector SC APC OTDR FBG Reflector

Passive Fiber Bragg Grating Reflector

Optical Network Fiber Bragg Grating Reflector

SC APC fiber optic reflector

Place of Origin:

China

Brand Name:

HJY

Certification:

CE, ROHS, FCC

Model Number:

HJY-FBG-R-1650-XX-XX

Request A Quote

Passive Optical Network Fiber Bragg Grating Reflector SC APC OTDR FBG Reflector

Product Details

Connector Type:

SC/APC

Bandwidth:

≤0.1nm

Operating Temperature:

-40℃ To +85℃

Reflectivity:

≥99%

Package Type:

Bare Fiber Or Customized

Insertion Loss:

≤0.2dB

Highlight:

Passive Fiber Bragg Grating Reflector

Optical Network Fiber Bragg Grating Reflector

SC APC fiber optic reflector

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

Please find sales@huajiayu.com

Packaging Details

Neutrial Standard Packing

Delivery Time

5~7 working days

Payment Terms

L/C, D/A, T/T, Western Union

Supply Ability

10000000pcs/month

High Reflectivity FBG Filters Fused Silica OTDR Test Fiber Optic Reflector

Get Best Price

OTDR Fiber Bragg Grating Optical Network ONUs FBG Filter Customized

Get Best Price

Wide Bandwidth OTDR FBG Reflector 1550nm LC With Fiber Bragg Grating For Test Signal

Get Best Price

1650nm Fiber Bragg Grating Reflector OTDR Reflector De Bragg With SC APC Fornetwork

Get Best Price

8613556217949

francesgdut@gmail.com

Contact Now

Product Description

Passive Optical Network 1650nm SC APC Fiber Bragg Grating Reflector OTDR FBG Reflector for Optical FTTx Networks

FBG Reflector (1650nm) utilizes the wavelength-selective properties of the Fiber Bragg Grating, and the FBG is embedded in the adapter. It can be easily installed in the front end of the optical network (ONU), and cooperate with the Optical Time Domain Reflector (OTDR) to quickly and accurately realize the fault detection of the optical network.

OTDR FBG Reflector is based on Fiber Bragg Grating technology with wide bandwidth and low insertion loss to reflect OTDR test signal. When the optical measurement system generates a certain range of wavelength to a Passive Optical Network (PON) which can pass through the FBG, the FBG will reflect its own intrinsic reflection wavelength at 1644.5nm - 1655.5nm.

Characteristics	Applications
* High precision of reflectance at test wavelength * Low insertion loss at traffic wavelength * Easy to install * Exceptional reliability and environmental stability * Applicable for FTTH, FTTB, FTTC * Compatible with GPON, EPON, GEPON, 10GEPON, NGPON	* Create high reflectance and wide working bandwidth at the termination of a PON without disturbing traffic * Test the reflectance from the central office. * Check optical continuity of a subscriber when being added, or when troubleshooting

The FBG reflector is a wavelength selective filter, which is usually installed at the front end of the ONU of the optical network to achieve accurate and fast detection of the end-to-end attenuation of the optical link. Compared with dielectric thin film filters, FBG reflectors have the following characteristics:

Create high reflectivity on the PON side, which will not affect the communication
FBG reflectors use fiber Bragg grating technology to reflect nearly 100% of the test light pulse sent by the OTDR on the OLT side of the optical link terminal, and the wavelengths that do not meet the conditions will be with little attenuation normally passes through the filter. When the OTDR detects the existence of the reflected detection signal, the fiber connection at the user end is normal. If the reflection value is very low or there is no reflection, it indicates that the fiber at the user end is damaged or broken. Realize online rapid detection of optical fiber lines without affecting the normal communication of other communication signals.

High stability and reliability
The FBG reflectors use the light sensitivity of the fiber material to inscribe the FBG on the fiber core, the fiber is inserted into the ceramic ferrule, and the FBG area is completely encapsulated inside the ceramic ferrule. It will not affect the FBG and is not affected by dirt, so it has high reliability.

Adapter structure, easy to connect

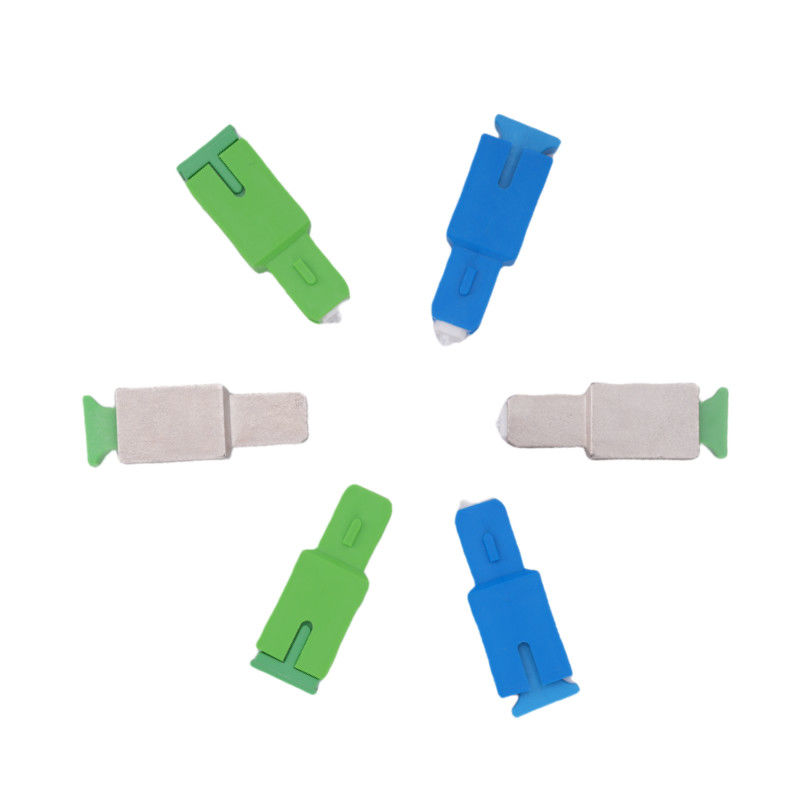

FBG reflectors are available in SC type and LC type, which will be easily interacted with conventional adapters and are very convenient to use.

With the widespread implementation of fiber-to-the-home FTTH projects, the number of users involved in optical networks continues to increase. How to quickly and accurately detect optical network faults is particularly important for optical network maintenance. By installing the fiber optic filters at the fiber optic connection end, the maintenance efficiency of the FTTH network is improved and the cost is lower. FBG reflectors is an ideal choice for optical fiber for optical fiber line monitoring, and can be widely used in FTTX network, PON network, central computer room reflectivity test, communication system link detection, etc.

Application Diagram:

Specification and Ordering Information:

Product Type	HJT-FBG-R-1550-XX-XX*^①
Parameters	Minimum	Maximum
Optical Parameters
Pass band wavelength range (nm)	1260	1625
Reﬂect band wavelength range (nm)	1644.5	1655.5
Insertion Loss (1260nm - 1360nm) (dB)*^②	-	1.0
Insertion Loss (1460nm - 1600nm) (dB)	-	1.0
Insertion Loss (1600nm - 1625nm) (dB)	-	2.0
Insertion Loss (Reﬂect Band) (dB)	21	-
Return Loss (1260nm - 1360nm) (dB) *^③	35	-
Return Loss (1460nm - 1580nm) (dB)	35	-
Return Loss (1580nm - 1620nm) (dB)	30	-
Return Loss (1620nm - 1625nm) (dB)	20	-
Return Loss (Reﬂect Band) (dB)	0	1.0
Polarization Dependent Loss (1260nm - 1600nm) (dB)	0	0.6
Ripple (Reﬂect Band) (dB)	0	0.4
Temperature Dependent Loss (1260nm - 1600nm) (dB)	0	0.5
Max Optical Power Handling (dBm)	27
Plug Times	500	-
Connector	SC/APC Male & SC/APC Female
Temperature Range
Storage Temperature (℃)	-40	85
Operating Temperature (℃)	-25	65
Relative Humidity (RH%)	5	95

*①HJY-FBG-R-1550-XX-XX,the first XX means fibre type,the second XX means structure type
*② Insertion Loss (dB) = -10 log
(Output Power/ Input Power) [dB]
*③Reture Loss (dB)=-10 log(Reflected Power/ Input Power) [dB]. To measure the return loss of reflect band, the light of 1650nm should be injected from the female side of reflector
