High Reflectivity FBG Filters Fused Silica OTDR Test Fiber Optic Reflector

Product Details

Fiber Length:

Customizable

Operating Mode:

Reflective

Fiber Bragg Grating Type:

Fused Silica

Fiber Connector:

LC/APC, LC/UPC

Reflectivity:

Up To 99%

Package Type:

Bare Fiber Or Connectorized

Highlight:

high reflectivity fbg filters

fbg filters fused silica

otdr test fiber optic reflector

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

Please find sales@huajiayu.com

Packaging Details

Neutrial Standard Packing

Delivery Time

5~7 working days

Payment Terms

L/C, D/A, T/T, Western Union

Supply Ability

10000000pcs/month

High Reflectivity FBG Filters Fused Silica OTDR Test Fiber Optic Reflector

Get Best Price

OTDR Fiber Bragg Grating Optical Network ONUs FBG Filter Customized

Get Best Price

Wide Bandwidth OTDR FBG Reflector 1550nm LC With Fiber Bragg Grating For Test Signal

Get Best Price

1650nm Fiber Bragg Grating Reflector OTDR Reflector De Bragg With SC APC Fornetwork

Get Best Price

8613556217949

francesgdut@gmail.com

Contact Now

Product Description

High Reflectivity FBG filters for OTDR testing and Central Office Terminal

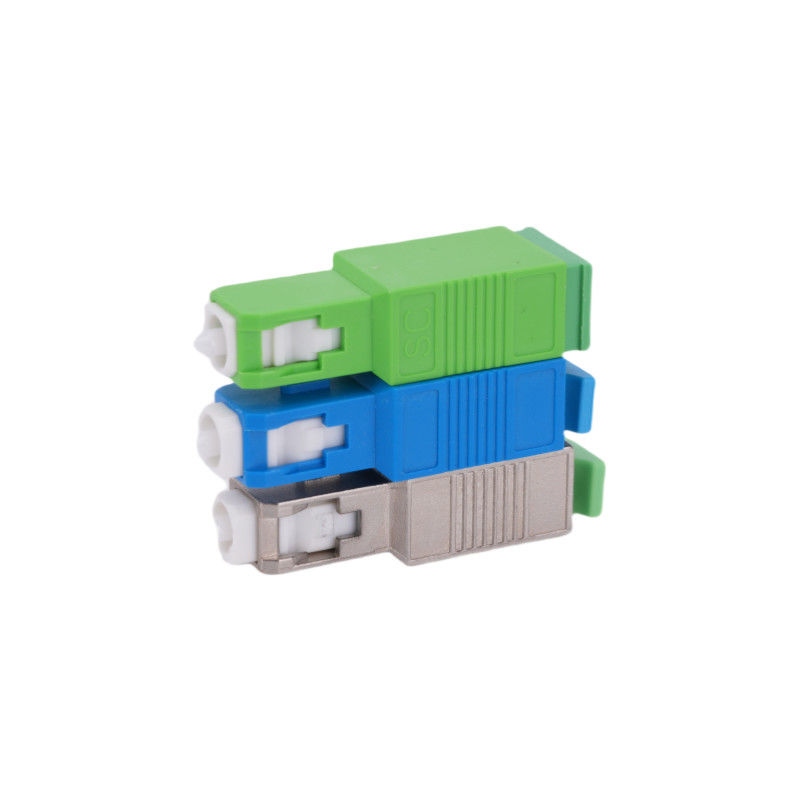

FBG Reflector (1550nm)
FBG Reflectors (1550nm), also known as FBG filters, are usually installed at the front end of optical network ONUs. Combined with OTDR equipment, they can realize point-to-point (PTP) or point-to-multipoint (PTMP) network monitoring of optical links. It can accurately and quickly reflect network anomalies.

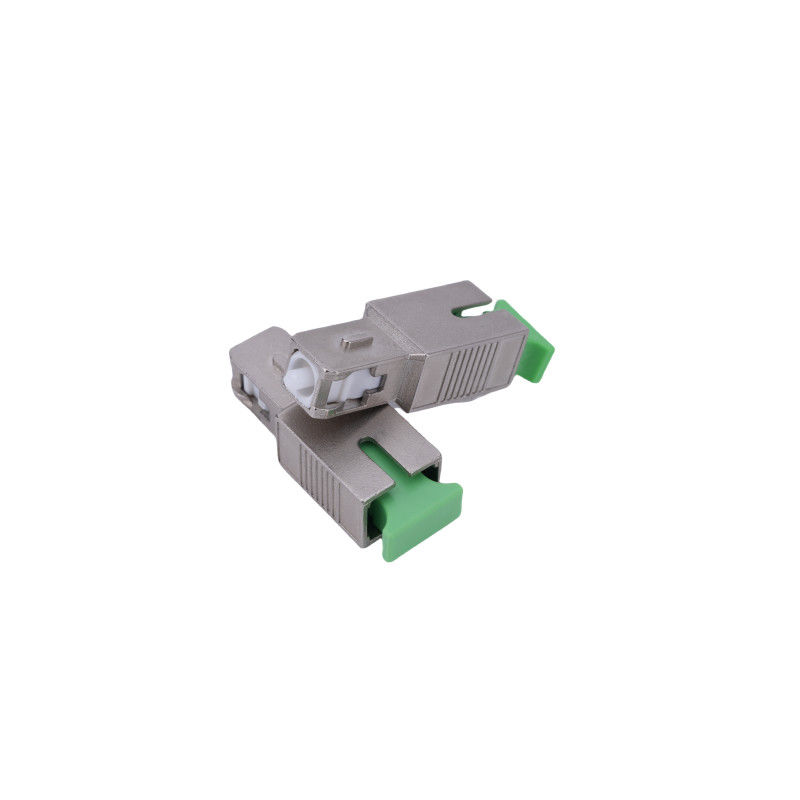

FBG Reflector (1650nm)
FBG Reflector (1650nm) utilizes the wavelength-selective properties of the Fiber Bragg Grating, and the FBG is embedded in the adapter. It can be easily installed in the front end of the optical network (ONU), and cooperate with the Optical Time Domain Reflector (OTDR) to quickly and accurately realize the fault detection of the optical network.

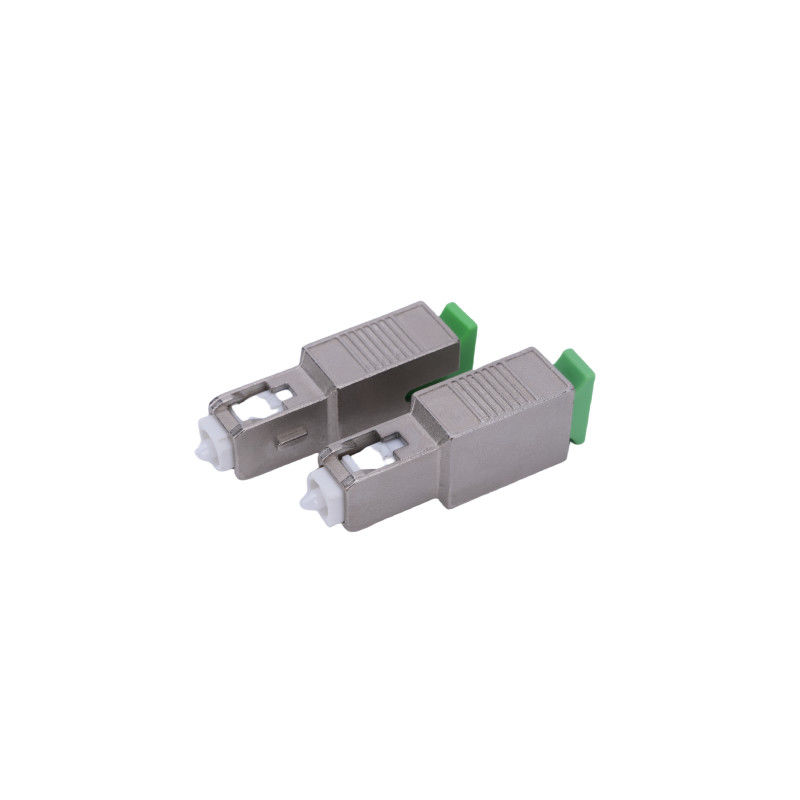

Pigtail Typed FBG Reflector

Characteristics	Applications
* High precision of reflectance at test wavelength * Low insertion loss at traffic wavelength * Easy to install * Exceptional reliability and environmental stability * Applicable for FTTH, FTTB, FTTC * Compatible with GPON, EPON, GEPON, 10GEPON, NGPON	* Create high reflectance and wide working bandwidth at the termination of a PON without disturbing traffic * Test the reflectance from the central office. * Check optical continuity of a subscriber when being added, or when troubleshooting

Features of FBG Reflector

The FBG fiber grating reflector is a wavelength selective reflector, which is usually installed at the front end of the ONU of the optical network to achieve accurate and fast detection of the end-to-end attenuation of the optical link. Compared with thin-film reflectors, fiber grating reflectors have the following characteristics:

1. The FBG reflector creates high reflectivity at the PON end, which will not affect the communication

The fiber grating reflector uses fiber grating to reflect nearly 100% of the test light pulse sent by the OTDR on the OLT side of the optical link terminal, and the wavelengths that do not meet the conditions pass through the fiber optic reflector normally with a small attenuation.

When the OTDR detects that the reflected detection signal exists, the optical fiber connection at the user end is normal. If the reflection value is very low or there is no reflection, it indicates that the fiber at the user end is damaged or broken. It can make online rapid detection of optical fiber lines without affecting the normal communication of other communication signals.

2. High stability and reliability of FBG reflector
The fiber grating reflector uses the light sensitivity of the fiber material to write the fiber grating on the fiber core. The optical fiber goes through the ceramic ferrule and the grating area is partially encapsulated inside the ceramic ferrule. The fiber grating will not be affected during the insertion and removal of the fiber optic reflector and it will not be affected by dirt, so it has high reliability.

3. The FBG reflector and the adapter structure are easy to connect.

Fiber optic reflectors are available in SC type and LC type. They interact with regular adapters. It is very convenient to use them.

With the widespread implementation of fiber-to-the-home FTTH projects, the number of users involved in optical networks continues to increase. How to quickly and accurately detect optical network faults is particularly important for the mainte

Application Diagram:

Specification and Ordering Information:

Product Type	HJT-FBG-R-1550-XX-XX*^①
Parameters	Minimum	Maximum
Optical Parameters
Pass band wavelength range (nm)	1260	1625
Reﬂect band wavelength range (nm)	1644.5	1655.5
Insertion Loss (1260nm - 1360nm) (dB)*^②	-	1.0
Insertion Loss (1460nm - 1600nm) (dB)	-	1.0
Insertion Loss (1600nm - 1625nm) (dB)	-	2.0
Insertion Loss (Reﬂect Band) (dB)	21	-
Return Loss (1260nm - 1360nm) (dB) *^③	35	-
Return Loss (1460nm - 1580nm) (dB)	35	-
Return Loss (1580nm - 1620nm) (dB)	30	-
Return Loss (1620nm - 1625nm) (dB)	20	-
Return Loss (Reﬂect Band) (dB)	0	1.0
Polarization Dependent Loss (1260nm - 1600nm) (dB)	0	0.6
Ripple (Reﬂect Band) (dB)	0	0.4
Temperature Dependent Loss (1260nm - 1600nm) (dB)	0	0.5
Max Optical Power Handling (dBm)	27
Plug Times	500	-
Connector	SC/APC Male & SC/APC Female
Temperature Range
Storage Temperature (℃)	-40	85
Operating Temperature (℃)	-25	65
Relative Humidity (RH%)	5	95

*①HJY-FBG-R-1550-XX-XX,the first XX means fibre type,the second XX means structure type
*② Insertion Loss (dB) = -10 log
(Output Power/ Input Power) [dB]
*③Reture Loss (dB)=-10 log(Reflected Power/ Input Power) [dB]. To measure the return loss of reflect band, the light of 1650nm should be injected from the female side of reflector
