Place of Origin:
China
Brand Name:
HJY
Certification:
CE, ROHS, FCC
Model Number:
HJY-FBG-R-1650-XX-XX-1
|
Characteristics
|
Applications
|
|
* High precision of reflectance at test wavelength
* Low insertion loss at traffic wavelength * Easy to install * Exceptional reliability and environmental stability * Applicable for FTTH, FTTB, FTTC * Compatible with GPON, EPON, GEPON, 10GEPON, NGPON |
* Create high reflectance and wide working bandwidth at the termination of a PON without disturbing traffic
* Test the reflectance from the central office. * Check optical continuity of a subscriber when being added, or when troubleshooting |
|
Product Type
|
HJT-FBG-R-1550-XX-XX*①
|
|
|---|---|---|
|
Parameters
|
Minimum
|
Maximum
|
|
Optical Parameters
|
||
|
Pass band wavelength range (nm)
|
1260
|
1625
|
|
Reflect band wavelength range (nm)
|
1644.5
|
1655.5
|
|
Insertion Loss (1260nm - 1360nm) (dB)*②
|
-
|
1.0
|
|
Insertion Loss (1460nm - 1600nm) (dB)
|
-
|
1.0
|
|
Insertion Loss (1600nm - 1625nm) (dB)
|
-
|
2.0
|
|
Insertion Loss (Reflect Band) (dB)
|
21
|
-
|
|
Return Loss (1260nm - 1360nm) (dB) *③
|
35
|
-
|
|
Return Loss (1460nm - 1580nm) (dB)
|
35
|
-
|
|
Return Loss (1580nm - 1620nm) (dB)
|
30
|
-
|
|
Return Loss (1620nm - 1625nm) (dB)
|
20
|
-
|
|
Return Loss (Reflect Band) (dB)
|
0
|
1.0
|
|
Polarization Dependent Loss (1260nm - 1600nm) (dB)
|
0
|
0.6
|
|
Ripple (Reflect Band) (dB)
|
0
|
0.4
|
|
Temperature Dependent Loss (1260nm - 1600nm) (dB)
|
0
|
0.5
|
|
Max Optical Power Handling (dBm)
|
27
|
|
|
Plug Times
|
500
|
-
|
|

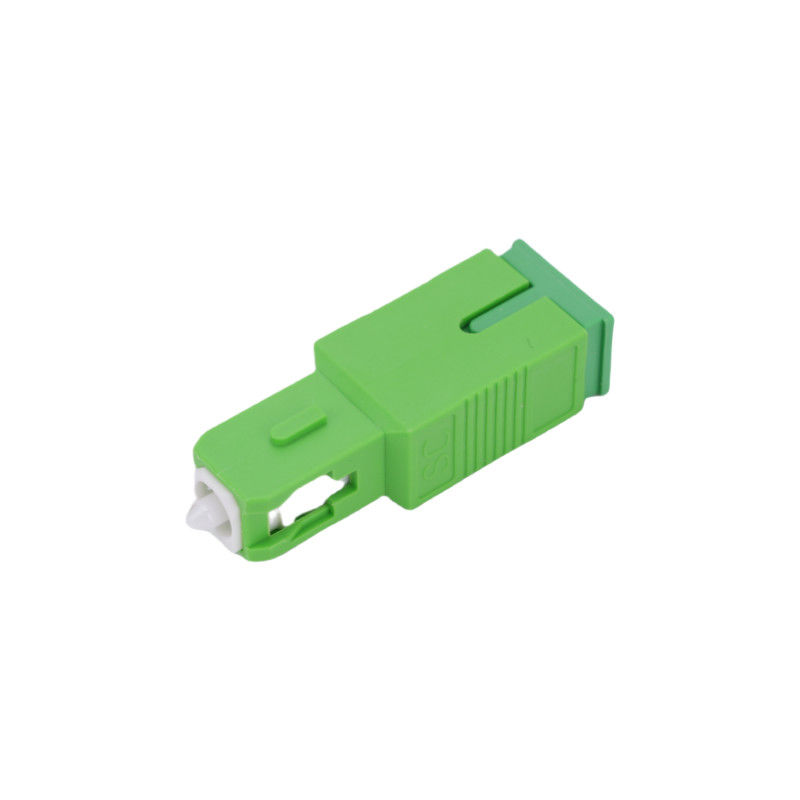

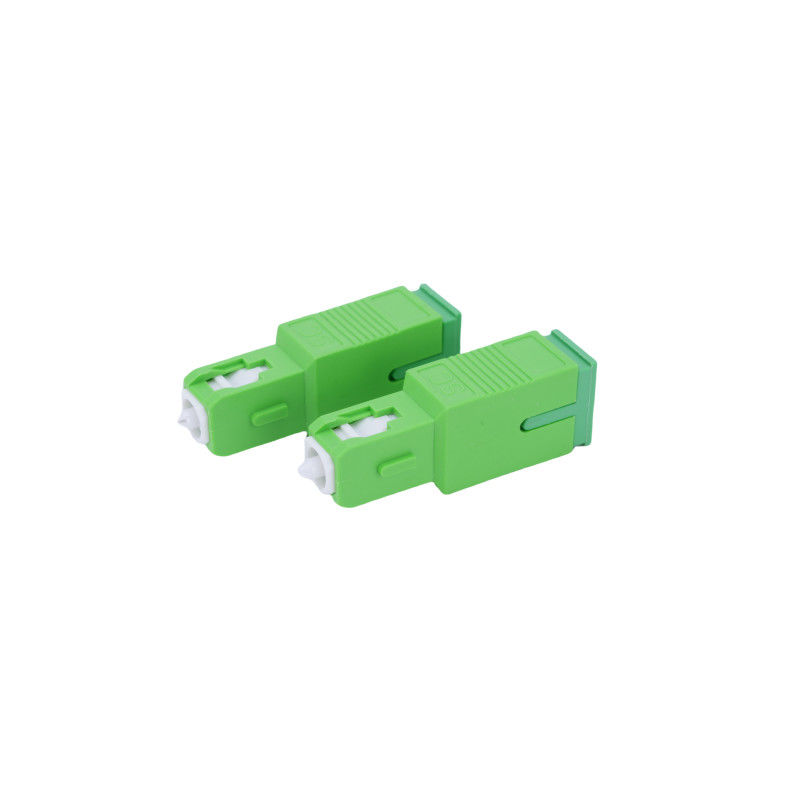

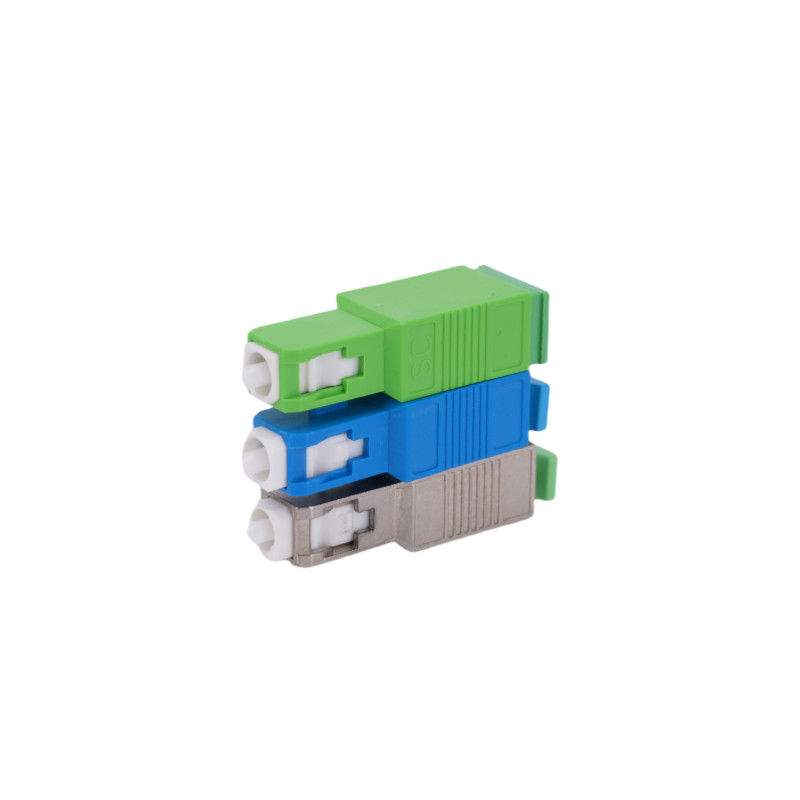

Connector
|
SC/APC Male & SC/APC Female
|
|
|
Temperature Range
|
||
|
Storage Temperature (℃)
|
-40
|
85
|
|
Operating Temperature (℃)
|
-25
|
65
|
|
Relative Humidity (RH%)
|
5
|
95
|
