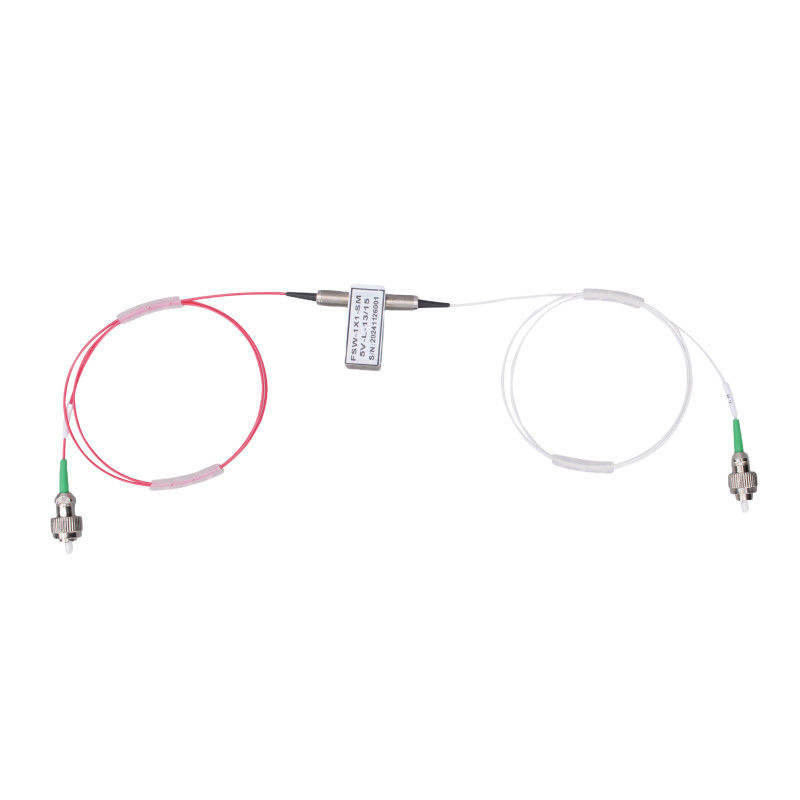

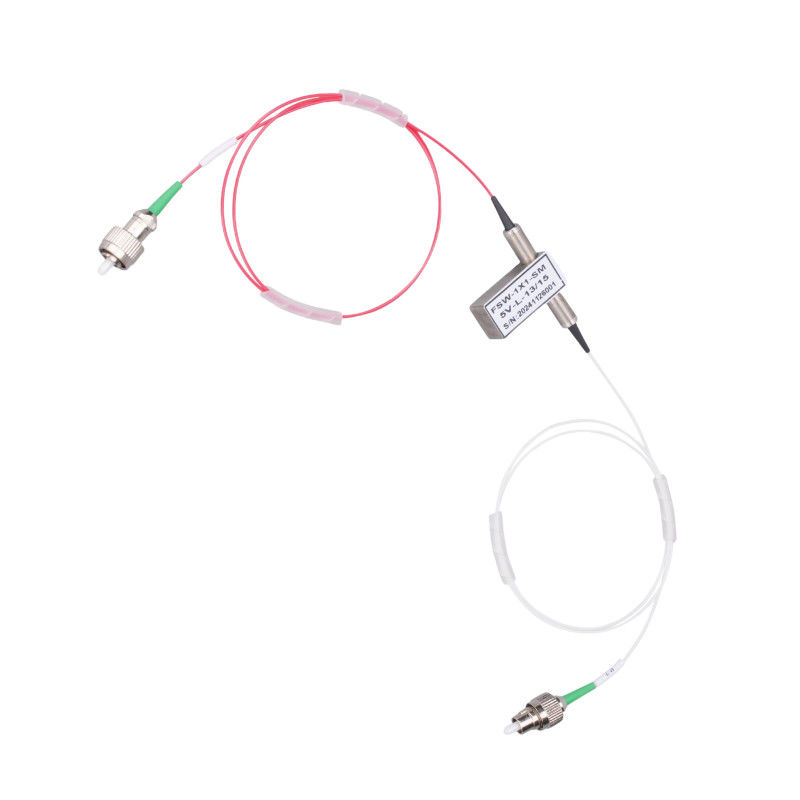

Name: 1x1 High Reliability Mechanical Optical Switch For Epoxy Free Optical Path
Brand: Guangdong Huajiayu Technology Co., Ltd
SKU: HJY-FSW-5L-1-5-20
Price: Negotiable USD
Availability: InStock

Home > products > Optical Switch >

1x1 High Reliability Mechanical Optical Switch For Epoxy Free Optical Path

mechanical optical switch

mechanical fiber switch

automatic fiber switch

Place of Origin:

China

Brand Name:

HJY

Certification:

CE, ROHS, FCC ISO9001

Model Number:

HJY-FSW-5L-1-5-20

Request A Quote

1x1 High Reliability Mechanical Optical Switch For Epoxy Free Optical Path

Product Details

Switching Method:

Optical

Repeatability:

≤ ±0.02dB

Oem:

Available

Fiber Type:

50/125 62.5/125 9/125

Control Type:

Non-latching Or Latching

Working Mode:

Automatic Gain Control

Highlight:

mechanical optical switch

mechanical fiber switch

automatic fiber switch

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

Please send inquiry to sales@huajiayu.com

Packaging Details

Neutrial Packing or with OEM LOGO

Delivery Time

3~7 working days

Payment Terms

T/T, Western Union, L/C

Supply Ability

100,000 pcs

500mW Optical Switch With Fast Switching Speed Sfp Fiber Switch

Get Best Price

320Gbps 1X1 Mechanical Optical Switch For Multiplex OADM Cross Connectors

Get Best Price

1x1 High Reliability Mechanical Optical Switch For Epoxy Free Optical Path

Get Best Price

High Isolation 1X1 Mechanical Optical Switch High Reliability For Optical Path

Get Best Price

8613556217949

francesgdut@gmail.com

Contact Now

Product Description

1x1 Mechanical Optical Switch for Epoxy-Free Optical Path with Opto-Mechanical Configuration and High Isolation and High Reliability

1x1 Mechanical Optical Switch connects optical channels by directing or blocking an incoming optical signal into the output fiber. This is achieved using a patent pending opto-mechanical configuration and activated via an electrical control signal. A latching version preserves the selected optical path after the drive signal has been removed, while the non-latching versions default to either the open or closed state when power is removed. The Fiber Optical Switch has integrated electrical position sensors. The new material based advanced design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as unmatched low cost.

HJY' 1x1 Mechanical Optical Switch is not affected by the polarization and wavelength. It supports all wavelength at 850nm and 1260nm~1650nm, and it provides high reliability, low insertion loss, fast switching speed and bi-directional performance. They are widely used for multiplex OADM, cross connectors OXC, system testing and protection.

HJY' 1x1 Mechanical Optical Switch is used to turn on and turn off optical signal. The 1x1 Mechanical Optical Switch is based on Advanced Optoelectronic Integrated Technology. With the development of optical communication, Optical Switch device is the key to a new generation of all-optical network in near future.

Dimensions (mm)

Product Parameters

Operating Wavelength	1260~1620nm(SM) / 850nm(MM)	Insertion Loss	≤1.0dB
Wavelength Dependent Loss	≤0.25dB	Polarization Dependent Loss	≤0.05dB
Temperature Dependent Loss	≤0.20dB	Return Loss	SM≥50dB / MM≥30dB
Cross Talk	SM≥55dB / MM≥35dB	Switch Time	≤8ms
Repeatability	≤±0.02dB	Durability	≥10 times
Operating Voltage	3 or 5V	Switch Type	Non-Latching/Latching
Operating Temperature	－20~＋70℃	Storage Temperature	－40~＋85℃
Optical Power	≤500mW	Dimension	27.0L×12.0W×8.2H mm

Pin Definition

Type	Pin definition	Power				Condition monitoring
FSW-1x1	Pin definition	1	5	6	10	2-3	3-4	7-8	8-9
Non-latching	-----	--	--	--	--	Close	Open	Open	Close
Non-latching	P1 - P2	V+	--	--	GND	Open	Close	Close	Open

Type	Pin definition	Power				Condition monitoring
FSW-1x1	Pin definition	1	5	6	10	2-3	3-4	7-8	8-9
Latching	-----	--	--	GND	V+	Close	Open	Open	Close
Latching	P1 - P2	V+	GND	--	--	Open	Close	Close	Open

Ordering Information:

HJY- FSW	Wavelength	Operating Voltage	Fiber Type	Tube Type	Fiber Length	Connector	Package
FSW-	0850—850 1315—1310&1550	3L—3v, latching 5L—5v, latching 3N—3v, Non-latching 5N—5v, Non-latching	1—SM 2—MM 62.5/125	1—250um 2—900um	00—special 05—0.5m±5cm 10—1m±5cm 15—1.5m±5cm 20—2 m ……	0—NO 1—FC/PC 2—FC/APC 3—SC/PC 4—SC/APC 5—LC/PC 6—LC/APC 7—Other	Bare fiber=1 900um tube=3 Special＝0
