Name: Automatic Fast Switching Mechanical Optical Switch Fiber Ethernet Switch For Optical Communication
Brand: Guangdong Huajiayu Technology Co., Ltd
SKU: HJY-FSW-5L-1-2-20-6
Price: Negotiable USD
Availability: InStock

Home > products > Optical Switch >

Automatic Fast Switching Mechanical Optical Switch Fiber Ethernet Switch For Optical Communication

Fast Switching Optical Switch

Automatic Optical Switch

fiber ethernet switch for Optical Communication

Place of Origin:

China

Brand Name:

HJY

Certification:

CE, ROHS, FCC ISO9001

Model Number:

HJY-FSW-5L-1-2-20-6

Request A Quote

Automatic Fast Switching Mechanical Optical Switch Fiber Ethernet Switch For Optical Communication

Product Details

Switching Method:

Optical

Repeatability:

≤ ±0.02dB

Oem:

Available

Fiber Type:

50/125 62.5/125 9/125

Control Type:

Non-latching Or Latching

Working Mode:

Automatic Gain Control

Highlight:

Fast Switching Optical Switch

Automatic Optical Switch

fiber ethernet switch for Optical Communication

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

Please send inquiry to sales@huajiayu.com

Packaging Details

Neutrial Packing or with OEM LOGO

Delivery Time

3~7 working days

Payment Terms

T/T, Western Union, L/C

Supply Ability

100,000 pcs

500mW Optical Switch With Fast Switching Speed Sfp Fiber Switch

Get Best Price

320Gbps 1X1 Mechanical Optical Switch For Multiplex OADM Cross Connectors

Get Best Price

1x1 High Reliability Mechanical Optical Switch For Epoxy Free Optical Path

Get Best Price

High Isolation 1X1 Mechanical Optical Switch High Reliability For Optical Path

Get Best Price

8613556217949

francesgdut@gmail.com

Contact Now

Product Description

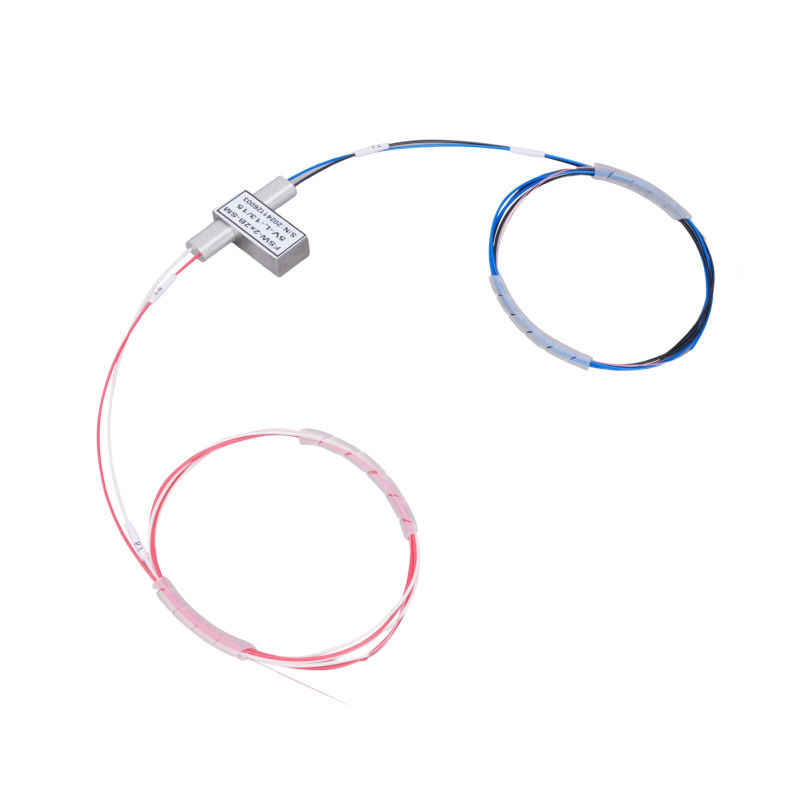

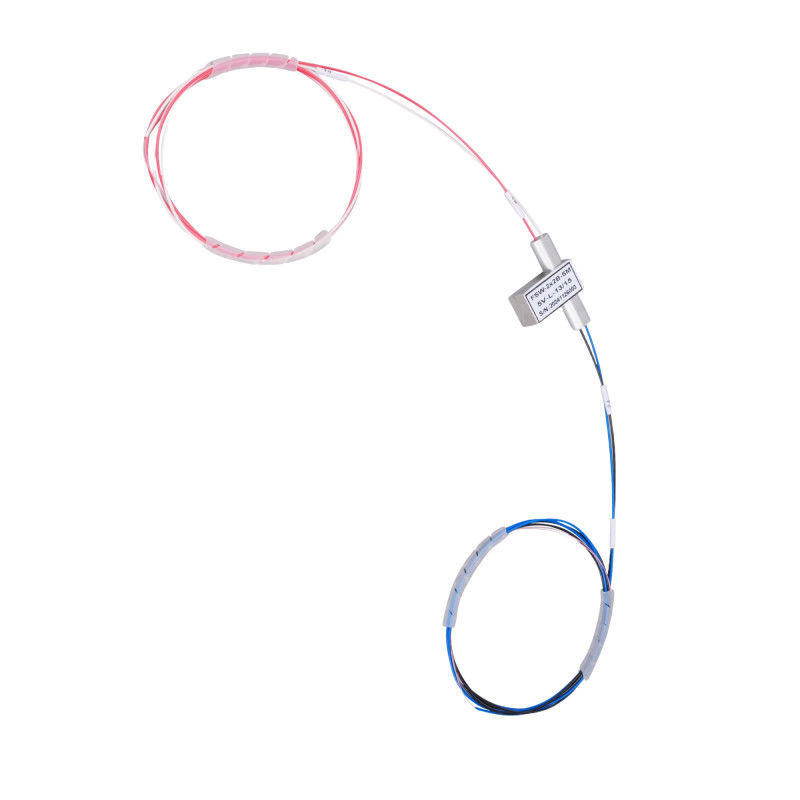

Fast Switching Speed and Low Insertion Loss Guaranteed 2x2 Bypass Mechanical Optical Switch for Optical Communication

HJY' 2x2 bypass fiber optic switch connects optical channels by directing or blocking an incoming optical signal into the output fiber. This is achieved using a patent pending opto-mechanical configuration and activated via an electrical control signal. A latching version preserves the selected optical path after the drive signal has been removed, while the non-latching versions default to either the open or closed state when power is removed. The 2x2 Bypass Mechanical Optical Switch has integrated electrical position sensors. The new material based advanced design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as unmatched low cost

Specifications

Operating Wavelength	1260~1620nm(SM) 850nm(MM)	Insertion Loss	≤1.0dB
Wavelength Dependent Loss	≤0.25dB	Polarization Dependent Loss	≤0.05dB
Temperature Dependent Loss	≤0.20dB	Return Loss	SM≥50dB MM≥30dB
Cross Talk	SM≥55dB MM≥35dB	Switch Time	≤8ms
Repeatability	≤±0.02dB	Durability	≥107 times
Operating Voltage	3 or 5V	Switch Type	Non-Latching/Latching
Operating Temperature	－20~＋70℃	Storage Temperature	－40~＋85℃
Optical Power	≤500mW	Dimension	27.0L×12.0W×8.2H mm

Pin Configurations

Type	Optical Route	Electric Drive				State Sensor
2×2B	Optical Route	Pin 1	Pin5	Pin6	Pin10	Pin 2-3	Pin3-4	Pin7-8	Pin 8-9
Latching	P1-P3	--	--	GND	V＋	Close	Open	Open	Close
Latching	P1-P4,P2-P3	V＋	GND	--	--	Open	Close	Close	Open
Non-latching	P1-P3	--	--	--	--	Close	Open	Open	Close
Non-latching	P1-P4,P2-P3	V＋	--	--	GND	Open	Close	Close	Open

Mechanical Dimensions (Unit:mm)

Optical Route

Ordering Information

HJY-FSW	-2X2B-	-Wavelength-	-Switch Type-	-Voltage-	-Fiber Type-	-Package-	-Fiberlength-	-Connector-
		1060＝1 C＋L＝2 1310＝3 1410＝4 1550＝5 650＝6 780＝7 1260-1610=A 1310/1550＝9 850=8 Special＝0	Latching＝1 Non-latching＝2 MINI Latching＝3 MINI Non-latching＝4 Special＝0	3V=3 5V=5 Special＝0	SM28=1 50/125=5 62.5/125=6 Special＝0	Bare fiber=1 900um tube=3 Special＝0	0.25m=1 0.5m=2 1.0m=3 Special＝0	None=1 FC/PC=2 FC/APC=3 SC/PC=4 SC/APC=5 ST/PC=6 LC/PC=7 Duplex LC=8 Special＝0
