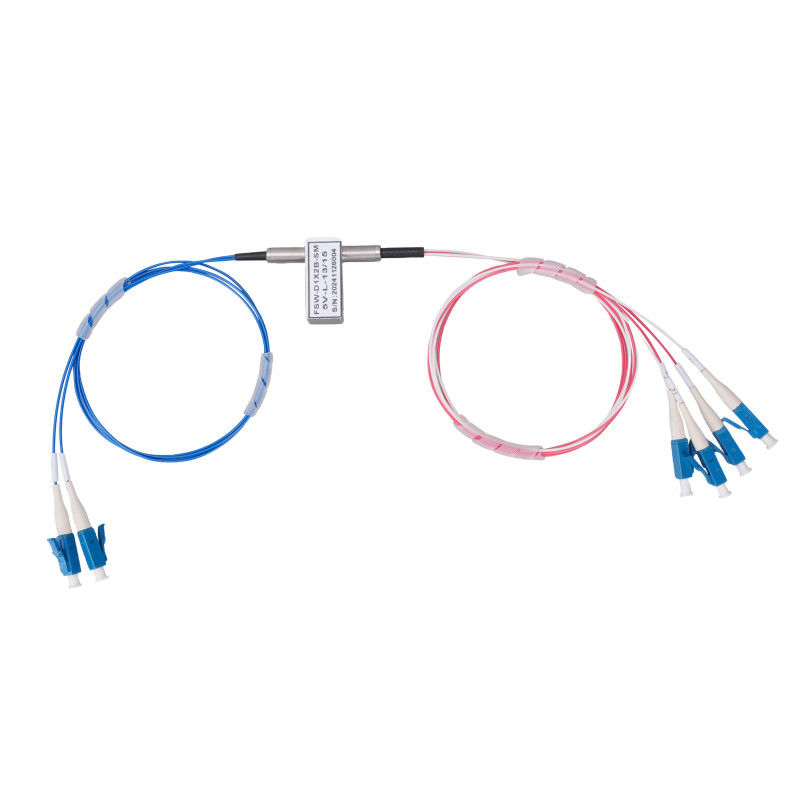

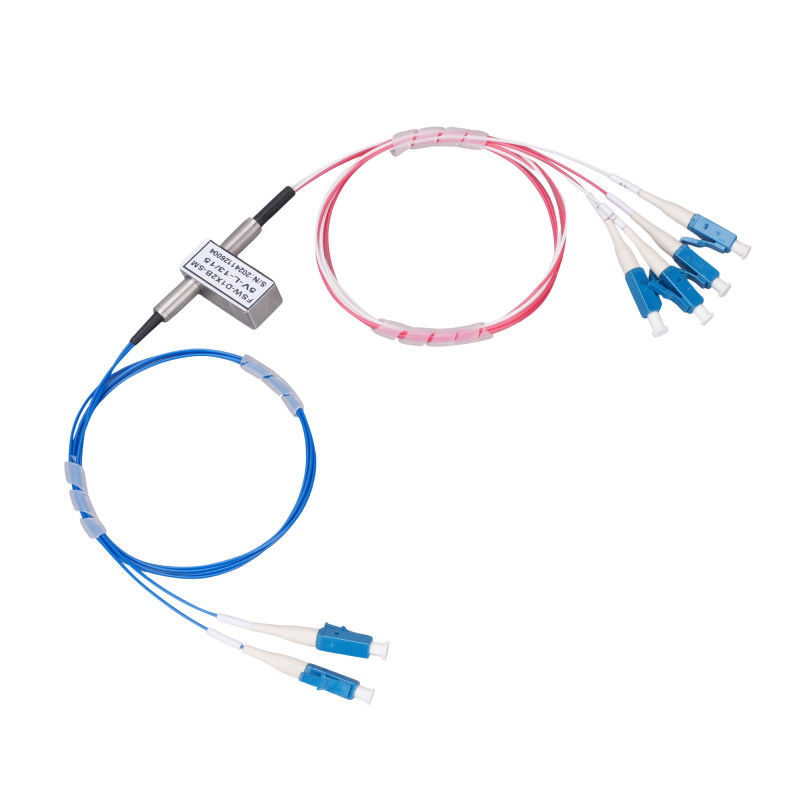

Low Insertion Loss Mechanical Optical Fiber Converter Switch Dual 1x2 Bypass

low Loss fiber converter switch

fiber converter switch

fiber core switch Bypass

Place of Origin:

China

Brand Name:

HJY

Certification:

CE, ROHS, FCC ISO9001

Model Number:

HJY-FSW-D1X2B-SM

Request A Quote

Low Insertion Loss Mechanical Optical Fiber Converter Switch Dual 1x2 Bypass

Product Details

Switching Method:

Optical

Repeatability:

≤ ±0.02dB

Oem:

Available

Fiber Type:

50/125 62.5/125 9/125

Control Type:

Non-latching Or Latching

Working Mode:

Automatic Gain Control

Highlight:

low Loss fiber converter switch

fiber converter switch

fiber core switch Bypass

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

Please send inquiry to sales@huajiayu.com

Packaging Details

Neutrial Packing or with OEM LOGO

Delivery Time

3~7 working days

Payment Terms

T/T, Western Union, L/C

Supply Ability

100,000 pcs

500mW Optical Switch With Fast Switching Speed Sfp Fiber Switch

Get Best Price

320Gbps 1X1 Mechanical Optical Switch For Multiplex OADM Cross Connectors

Get Best Price

1x1 High Reliability Mechanical Optical Switch For Epoxy Free Optical Path

Get Best Price

High Isolation 1X1 Mechanical Optical Switch High Reliability For Optical Path

Get Best Price

8613556217949

francesgdut@gmail.com

Contact Now

Product Description

High Reliability and Low Insertion Loss Dual 1x2 Bypass Mechanical Optical Switch for Optical Communication

HJY' Dual1x2 Bypass fiber optic switch connects optical channels by directing or blocking an incoming optical signal into the output fiber. This is achieved using a patent pending opto-mechanical configuration and activated via an electrical control signal. A latching version preserves the selected optical path after the drive signal has been removed, while the non-latching versions default to either the open or closed state when power is removed. The Dual 1x2 Bypass Mechanical Optical Switch has integrated electrical position sensors. The new material based advanced design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as unmatched low cost.

Features

Application

·Low Insertion Loss
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Latching and Non-latching

·Metropolitan Area Network

·R&D in Laboratory

·System Monitoring

·Configurable OADM

Performance

Parameters		HJY-FSW-D1X2B-SM
Wavelength Range	nm	850±40/1300±40	1260～1650
Testing Wavelength	nm	850/1300	1310/1550
Insertion Loss	dB	≤1.0
Return Loss	dB	MM≥30 SM≥50
Crosstalk	dB	MM≥30 SM≥55
PDL	dB	≤0.05
WDL	dB	≤0.25
TDL	dB	≤0.25
Repeatability	dB	≤±0.02
Power supply	v	3.0 or 5.0
Lifetime	time	≥3×10⁷
Switch Time	ms	≤8
Transmission Power	mw	≤500
Operation Temperature	℃	-20～+70
Storage Temperature	℃	-40～+85
Relative Humidity	%	5~95
Weight	g	16
Dimension	mm	(L)27.0×(W)12.6×(H)8 (±0.2mm) customization is available.

Pins

Control Model	Optical Path		Electric Drive				Status Sensor
D1×2B	Light Pin		1	5	6	10	2-3	3-4	7-8	8-9
Latching	P1-P2	1-2	V+	GND	--	--	Open	Close	Close	Open
Latching	P1-P3	1-3	--	--	GND	V+	Close	Open	Open	Close
Non-latching	P1-P2	1-2	V+	--	--	GND	Open	Close	Close	Open
Non-latching	P1-P3	1-3	--	--	--	--	Close	Open	Open	Close

Optical Route

State A	State B

Dimensions

Low Insertion Loss Mechanical Optical Fiber Converter Switch Dual 1x2 Bypass 2

Ordering Information

HJY-FSW	-D1X2B-	-Wavelength-	-Switch Type-	-Voltage-	-Fiber Type-	-Package-	-Fiberlength-	-Connector-
		1060＝1 C＋L＝2 1310＝3 1410＝4 1550＝5 650＝6 780＝7 1260-1610=A 1310/1550＝9 850=8 Special＝0	Latching＝1 Non-latching＝2 MINI Latching＝3 MINI Non-latching＝4 Special＝0	3V=3 5V=5 Special＝0	SM28=1 50/125=5 62.5/125=6 Special＝0	Bare fiber=1 900um tube=3 Special＝0	0.25m=1 0.5m=2 1.0m=3 Special＝0	None=1 FC/PC=2 FC/APC=3 SC/PC=4 SC/APC=5 ST/PC=6 LC/PC=7 Duplex LC=8 Special＝0
