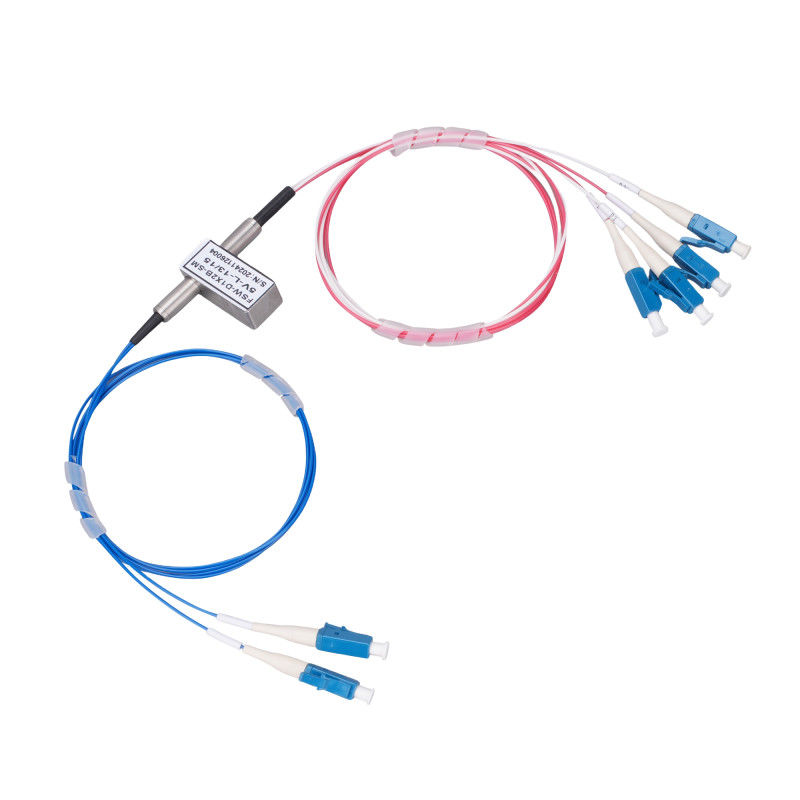

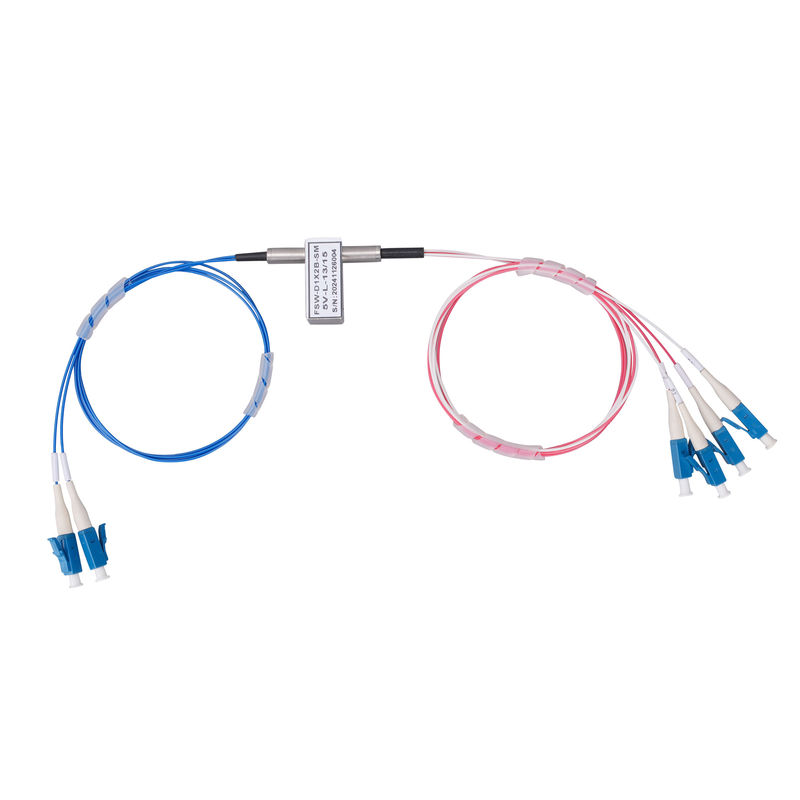

Name: Bypass 1x2 Optical Switch Fiber Optic Network Switch For Testing Wavelength 1310nm 1550nm
Brand: Guangdong Huajiayu Technology Co., Ltd
SKU: HJY-FSW-D1X2B-SM-2
Price: Negotiable USD
Availability: InStock

Home > products > Optical Switch >

Bypass 1x2 Optical Switch Fiber Optic Network Switch For Testing Wavelength 1310nm 1550nm

1x2 Optical Switch

Optical Switch For Testing Wavelength

1310nm fiber optic network switch

Place of Origin:

China

Brand Name:

HJY

Certification:

CE, ROHS, FCC ISO9001

Model Number:

HJY-FSW-D1X2B-SM-2

Request A Quote

Bypass 1x2 Optical Switch Fiber Optic Network Switch For Testing Wavelength 1310nm 1550nm

Product Details

Control Type:

Non-latching Or Latching

Switching Time:

Less Than 10ms

Maximum Optical Power:

500mw

Repeatability:

≤±0.02 DB

Durability:

≥ 10 Million

Working Wavelength:

1260nm 1650nm

Highlight:

1x2 Optical Switch

Optical Switch For Testing Wavelength

1310nm fiber optic network switch

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

Please send inquiry to sales@huajiayu.com

Packaging Details

Neutrial Packing or with OEM LOGO

Delivery Time

3~7 working days

Payment Terms

T/T, Western Union, L/C

Supply Ability

100,000 pcs

500mW Optical Switch With Fast Switching Speed Sfp Fiber Switch

Get Best Price

320Gbps 1X1 Mechanical Optical Switch For Multiplex OADM Cross Connectors

Get Best Price

1x1 High Reliability Mechanical Optical Switch For Epoxy Free Optical Path

Get Best Price

High Isolation 1X1 Mechanical Optical Switch High Reliability For Optical Path

Get Best Price

8613556217949

francesgdut@gmail.com

Contact Now

Product Description

Unmatched Stability Dual 1x2 Bypass Mechanical Optical Switch for Testing Wavelength 1310/1550nm

HJY' Dual1x2 Bypass fiber optic switch connects optical channels by directing or blocking an incoming optical signal into the output fiber. This is achieved using a patent pending opto-mechanical configuration and activated via an electrical control signal. A latching version preserves the selected optical path after the drive signal has been removed, while the non-latching versions default to either the open or closed state when power is removed. The Dual 1x2 Bypass Mechanical Optical Switch has integrated electrical position sensors. The new material based advanced design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as unmatched low cost.

Features

Application

·Low Insertion Loss
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Latching and Non-latching

·Metropolitan Area Network

·R&D in Laboratory

·System Monitoring

·Configurable OADM

Performance

Parameters		HJY-FSW-D1X2B-SM
Wavelength Range	nm	850±40/1300±40	1260～1650
Testing Wavelength	nm	850/1300	1310/1550
Insertion Loss	dB	≤1.0
Return Loss	dB	MM≥30 SM≥50
Crosstalk	dB	MM≥30 SM≥55
PDL	dB	≤0.05
WDL	dB	≤0.25
TDL	dB	≤0.25
Repeatability	dB	≤±0.02
Power supply	v	3.0 or 5.0
Lifetime	time	≥3×10⁷
Switch Time	ms	≤8
Transmission Power	mw	≤500
Operation Temperature	℃	-20～+70
Storage Temperature	℃	-40～+85
Relative Humidity	%	5~95
Weight	g	16
Dimension	mm	(L)27.0×(W)12.6×(H)8 (±0.2mm) customization is available.

Pins

Control Model	Optical Path		Electric Drive				Status Sensor
D1×2B	Light Pin		1	5	6	10	2-3	3-4	7-8	8-9
Latching	P1-P2	1-2	V+	GND	--	--	Open	Close	Close	Open
Latching	P1-P3	1-3	--	--	GND	V+	Close	Open	Open	Close
Non-latching	P1-P2	1-2	V+	--	--	GND	Open	Close	Close	Open
Non-latching	P1-P3	1-3	--	--	--	--	Close	Open	Open	Close

Optical Route

State A	State B

Dimensions

Bypass 1x2 Optical Switch Fiber Optic Network Switch For Testing Wavelength 1310nm 1550nm 2

Ordering Information

HJY-FSW	-D1X2B-	-Wavelength-	-Switch Type-	-Voltage-	-Fiber Type-	-Package-	-Fiberlength-	-Connector-
		1060＝1 C＋L＝2 1310＝3 1410＝4 1550＝5 650＝6 780＝7 1260-1610=A 1310/1550＝9 850=8 Special＝0	Latching＝1 Non-latching＝2 MINI Latching＝3 MINI Non-latching＝4 Special＝0	3V=3 5V=5 Special＝0	SM28=1 50/125=5 62.5/125=6 Special＝0	Bare fiber=1 900um tube=3 Special＝0	0.25m=1 0.5m=2 1.0m=3 Special＝0	None=1 FC/PC=2 FC/APC=3 SC/PC=4 SC/APC=5 ST/PC=6 LC/PC=7 Duplex LC=8 Special＝0
