Place of Origin:
China
Brand Name:
HJY
Certification:
CE, ROHS, FCC ISO9001
Model Number:
HJY-FSW-D2X2B-SM-1
| Features | Application |
|
Unmatched Low Cost,

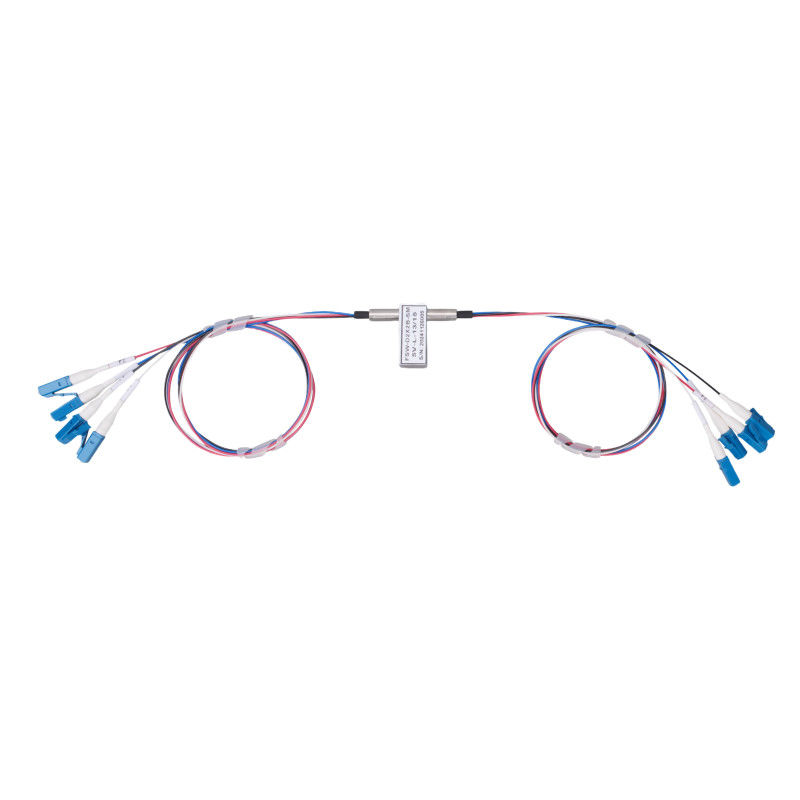

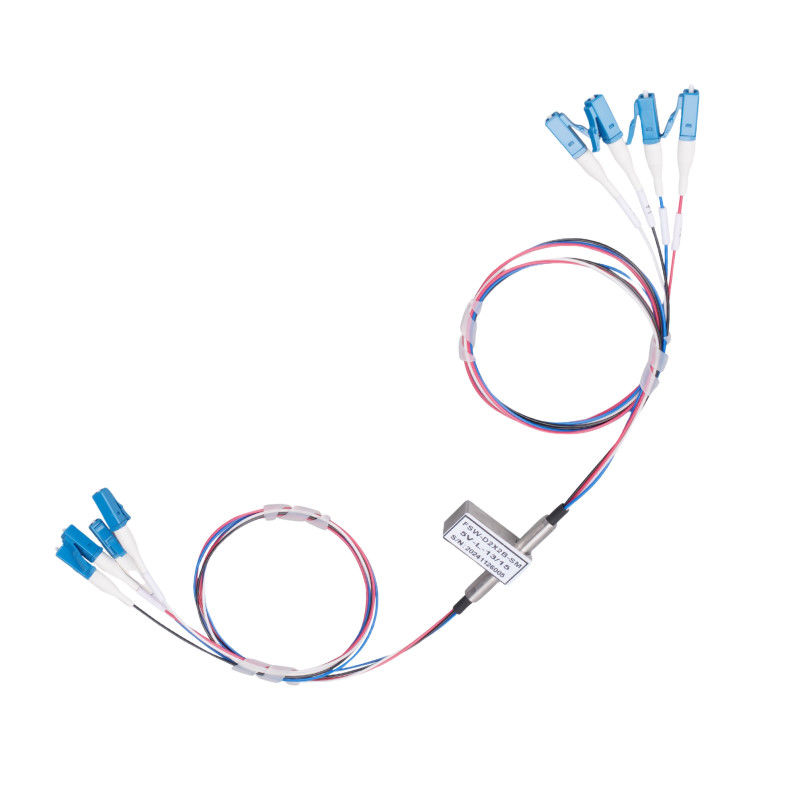

Dual 2x2 Bypass Mechanical Optical Switch
Low Optical Distortions High Isolation High Reliability Epoxy-Free Optical Path |
·Metropolitan Area Network ·R&D in Laboratory ·System Monitoring ·Configurable OADM |
|
Operating Wavelength
|
1260~1620nm(SM)
850nm(MM)
|
Insertion Loss
|
≤1.0dB
|
|
Wavelength Dependent Loss
|
≤0.25dB
|
Polarization Dependent Loss
|
≤0.05dB
|
|
Temperature Dependent Loss
|
≤0.20dB
|
Return Loss
|
SM≥50dB
MM≥30dB
|
|
Cross Talk
|
SM≥55dB
MM≥35dB
|
Switch Time
|
≤8ms
|
|
Repeatability
|
≤±0.02dB
|
Durability
|
≥107 times
|
|
Operating Voltage
|
3 or 5V
|
Switch Type
|
Non-Latching/Latching
|
|
Operating Temperature
|
－20~＋70℃
|
Storage Temperature
|
－40~＋85℃
|
|
Optical Power
|
≤500mW
|
Dimension
|
27.0L×12.0W×8.2H mm
|
|
Type
|
Optical Route
|
Electric Drive
|
State Sensor
|
||||||
|
D2×2B
|
Pin 1
|
Pin5
|
Pin6
|
Pin10
|
Pin 2-3
|
Pin3-4
|
Pin7-8
|
Pin 8-9
|
|
|
Latching
|
P1-P1’,P2-P2’
P3-P3’,P4-P4’
|
V＋
|
GND
|
--
|
--
|
Open
|
Close
|
Close
|
Open
|
|
P1-P3’,P2-P4’
|
--
|
--
|
GND
|
V＋
|
Close
|
Open
|
Open
|
Close
|
|
|
Non-latching
|
P1-P1’,P2-P2’
P3-P3’,P4-P4’
|
V＋
|
--
|
--
|
GND
|
Open
|
Close
|
Close
|
Open
|
|
P1-P3’,P2-P4’
|
--
|
--
|
--
|
--
|
Close
|
Open
|
Open
|
Close
|
|
|
HJY-FSW
|
-D1X2B-
|
-Wavelength-
|
-Switch Type-
|
-Voltage-
|
-Fiber Type-
|
-Package-
|
-Fiberlength-
|
-Connector-
|
|
|
|
1060＝1
C＋L＝2
1310＝3
1410＝4
1550＝5
650＝6
780＝7
1260-1610=A
1310/1550＝9
850=8
Special＝0
|
Latching＝1
Non-latching＝2
MINI Latching＝3
MINI Non-latching＝4
Special＝0
|
3V=3
5V=5
Special＝0
|
SM28=1
50/125=5
62.5/125=6
Special＝0
|
Bare fiber=1
900um tube=3
Special＝0
|
0.25m=1
0.5m=2
1.0m=3
Special＝0
|
None=1
FC/PC=2
FC/APC=3
SC/PC=4
SC/APC=5
ST/PC=6
LC/PC=7
Duplex LC=8
Special＝0
|
