Name: 1U 2 Slots Chassis 8CH DWDM MUX DEMUX Dual Fiber Dwdm Passive Mux With EXP Monitor Port
Brand: Guangdong Huajiayu Technology Co., Ltd
SKU: HJY-DWDM-D8CH-19INCH-LGX-3
Price: Negotiable USD
Availability: InStock

Home > products > DWDM OADM >

1U 2 Slots Chassis 8CH DWDM MUX DEMUX Dual Fiber Dwdm Passive Mux With EXP Monitor Port

2 Slots DWDM MUX DEMUX

8CH DWDM MUX DEMUX

Dual Fiber dwdm passive mux

Place of Origin:

China

Brand Name:

HJY

Certification:

CE, ROHS, FCC

Model Number:

HJY-DWDM-D8CH-19INCH-LGX-3

Request A Quote

1U 2 Slots Chassis 8CH DWDM MUX DEMUX Dual Fiber Dwdm Passive Mux With EXP Monitor Port

Product Details

Channels:

Wavelength:

C20 To C27 (1561.42nm~1555.75nm)

Grid:

ITU-T G.694.1 100GHZ

Type:

Passive

Module:

1U 2 Slots 19inch Rack Mount

Insertion Loss:

<2.4dB

Highlight:

2 Slots DWDM MUX DEMUX

8CH DWDM MUX DEMUX

Dual Fiber dwdm passive mux

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

Please find sales@huajiayu.com

Packaging Details

Neutrial Standard Packing

Delivery Time

3~7 working days

Payment Terms

L/C, T/T, Western Union

Supply Ability

10000000pcs/month

500mW Passive DWDM 18CH DEMUX Passive MUX Handling SMF 28e Fiber C22 To C39

Get Best Price

Customizable 8CH DWDM OADM C Band Fiber Optic Mux For Telecom Data Centers

Get Best Price

8CH ABS Box OADM DWDM Customizable Wavelengths DWDM MUX DEMUX Data Transmission

Get Best Price

Video

Upgrade Your Network Efficiency with Innovative Dual Fiber Design 1U 4CH DWDM Mux Demux LGX Box for Network Expansion

Get Best Price

8613556217949

francesgdut@gmail.com

Contact Now

Product Description

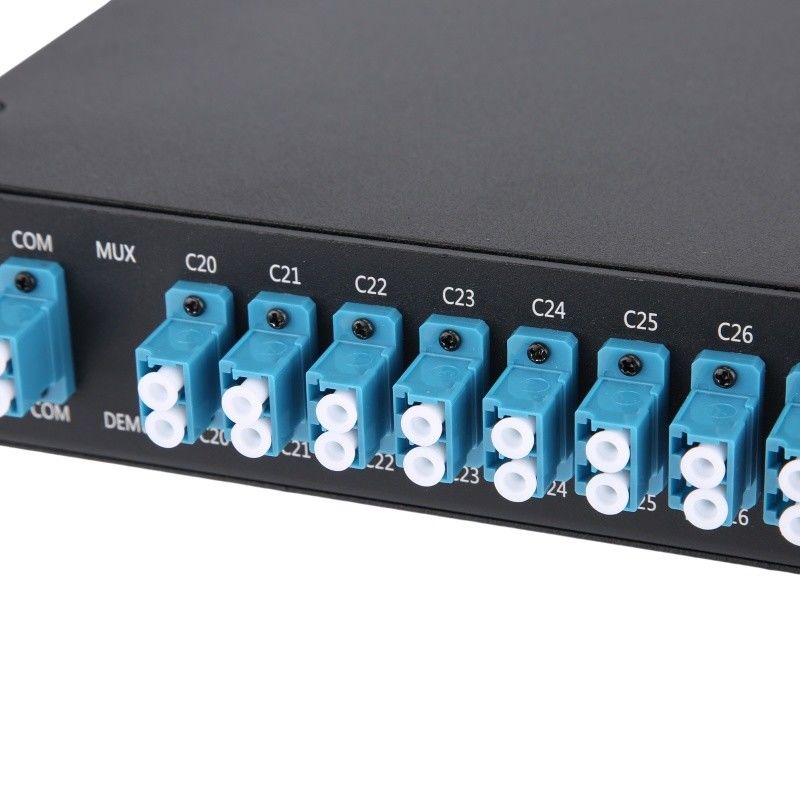

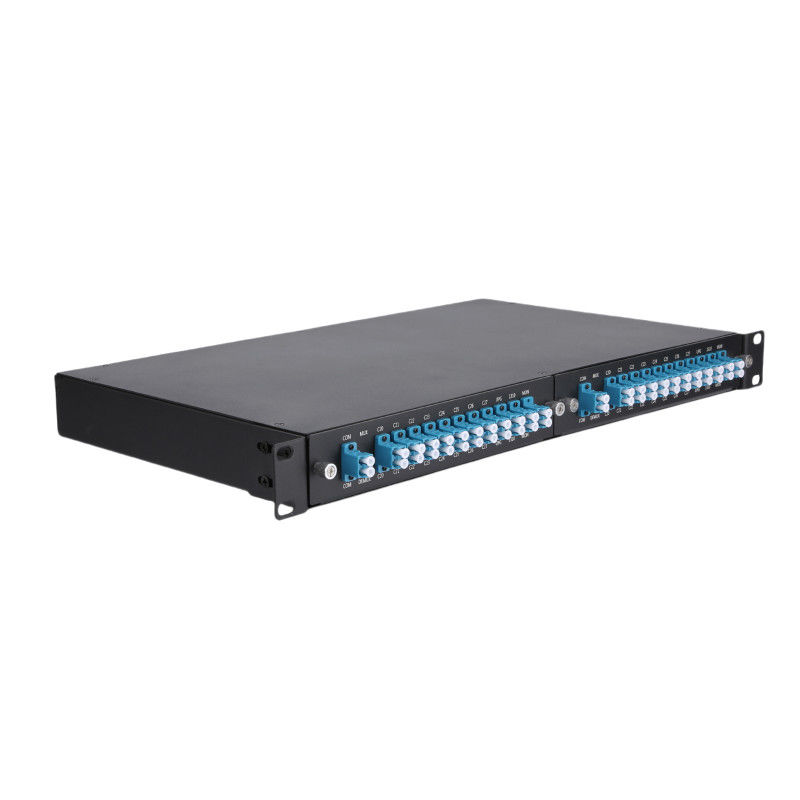

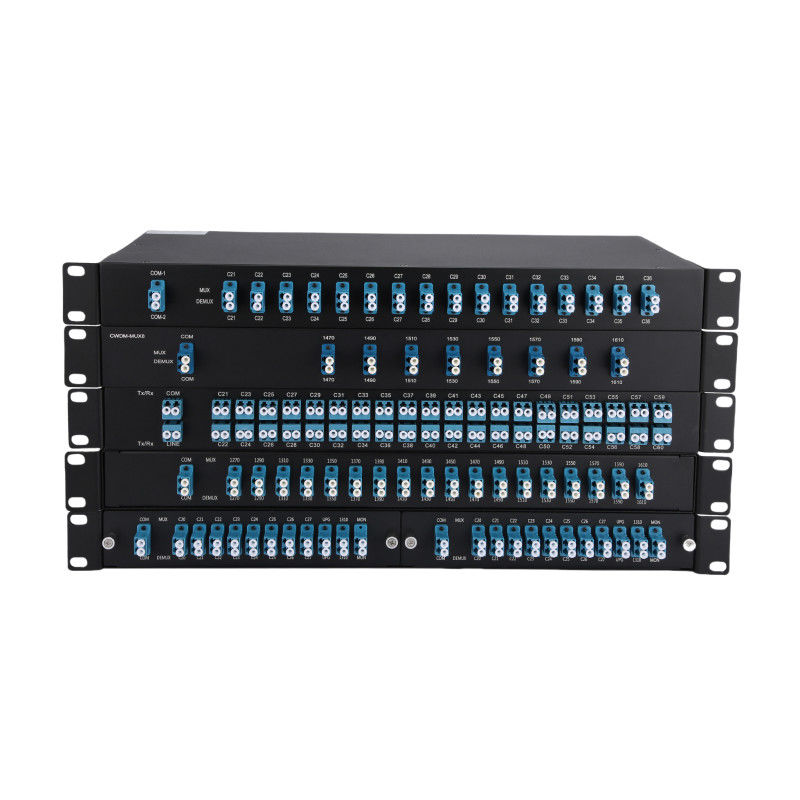

1U 2 Slots Chassis 8CH DWDM MUX DEMUX Dual Fiber LGX Box with EXP Monitor Port

This 1U 2 Slots Chassis 8CH DWDM MUX DEMUX Dual Fiber LGX Box is a must - have for modern optical networks. Its 8 - channel DWDM function maximizes fiber usage, multiplexing and demultiplexing multiple wavelengths. The dual - fiber setup ensures stable data transfer.

Equipped with an EXP Monitor Port, it allows for easy signal monitoring. Compact in a 1U form, it's simple to install in standard racks. Ideal for data centers and telecom setups, it offers high - performance and cost - efficient optical solutions.

The 8ch DWDM MUX DEMUX is designed by HJY, wavelength from C20 to C27(1561.42nm~1555.75nm), (By the way, we can support customize other waves); in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range.

The 8ch DWDM is totally passive and LGX box module device, it can plug in the 2-slot 1 U rack; the product insertion loss is＜2.4dB.And it conjunct with The DWDM amplifiers and DCM device, the 8ch DWDM transfer system can support a long distance transmission.

Features

· Low Insertion Loss
· High Isolation
· Low PDL
· Compact Design
· Good channel-to-channel uniformity
· Wide Operating Wavelength
· Wide Operating Temperature: -20 to 70°C
· Telcordia GR-1221 Compliance and RoHS Environmental Protection Standard

Applications

· DWDM systems, fiber optical amplifier
· CATV links, wavelgnth routing
· PON networks

Product specification

Channels	4	8	16
Insertion Loss	<1.5dB	<2.4dB	<4.0dB

Wavelength Range	C- band ITU channels	Technology	TFF (Thin Film Filter)
Channel Spacing	100GHZ(0.8nm)	Passband Ripple	≤0.5dB
Channel Passband	±0.11nm	Channel Isolation	Adjacent ≥30dB Non-adjacent ≥45dB
Polarization Dependent Loss	≤0.2dB	Polarization Mode Dispersion	≤0.2ps
Directivity	≥50dB	Return Loss	≥45dB
Optical Power Handling	≤500mW	Temperature	Operating -40 to 85°C Storage -40 to 85°C
Fiber Type	SMF-28e+	Connector	LC/SC/FC or other
Net Weight	LGX: 0.5kg	Package dimensions	20820039mm(LGX) 20319720.2mm(LGX) 482440230mm(1U)

Notes:

1) HJY Support Customized Design, please contact us by email sales@huajiayu.com

2) If you want to order, please email us and tell us how many waves and which waves do you want, we will send you more detail datasheet which you want.

Package Information

Dense Wavelength Division Multiplexing (DWDM)
ITU Grid: C-Band, 100 GHz Spacing
Channel	Frequency	Wavelength	Channel	Frequency	Wavelength
(#)	(GHz)	(nm)	(#)	(GHz)	(nm)
1	190100	1577.03	37	193700	1547.72
2	190200	1576.20	38	193800	1546.92
3	190300	1575.37	39	193900	1546.12
4	190400	1574.54	40	194000	1545.32
5	190500	1573.71	41	194100	1544.53
6	190600	1572.89	42	194200	1543.73
7	190700	1572.06	43	194300	1542.94
8	190800	1571.24	44	194400	1542.14
9	190900	1570.42	45	194500	1541.35
10	191000	1569.59	46	194600	1540.56
11	191100	1568.77	47	194700	1539.77
12	191200	1567.95	48	194800	1538.98
13	191300	1567.13	49	194900	1538.19
14	191400	1566.31	50	195000	1537.40
15	191500	1565.50	51	195100	1536.61
16	191600	1564.68	52	195200	1535.82
17	191700	1563.86	53	195300	1535.04
18	191800	1563.05	54	195400	1534.25
19	191900	1562.23	55	195500	1533.47
20	192000	1561.41	56	195600	1532.68
21	192100	1560.61	57	195700	1531.90
22	192200	1559.79	58	195800	1531.12
23	192300	1558.98	59	195900	1530.33
24	192400	1558.17	60	196000	1529.55
25	192500	1557.36	61	196100	1528.77
26	192600	1556.55	62	196200	1527.99
27	192700	1555.75	63	196300	1527.22
28	192800	1554.94	64	196400	1526.44
29	192900	1554.13	65	196500	1525.66
30	193000	1553.33	66	196600	1524.89
31	193100	1552.52	67	196700	1524.11
32	193200	1551.72	68	196800	1523.34
33	193300	1550.92	69	196900	1522.56
34	193400	1550.12	70	197000	1521.79
35	193500	1549.32	71	197100	1521.02
36	193600	1549.51	72	197200	1520.25
Note:	For 200GHz spacing use either odd or even numbered channels.

Ordering Information:

DWDM	No. of CHs	1st CH	Fiber Type	Fiber Length	In/Out Connector
100=100G 200=200G	04=4 Channel 08=8 Channel 16=16 Channel 18=18 Channel N=N Channel ……	11=1568.77nm 20=1561.41nm 49=1538.19nm …… 60=1529.55nm SS=special	1-G652D 2-G657A 3-Other	1=1m 2=1.5m S=Specify	0=None 1=FC/APC 2=FC/UPC 3=SC/APC 4=SC/UPC 5=LC/UPC ……
