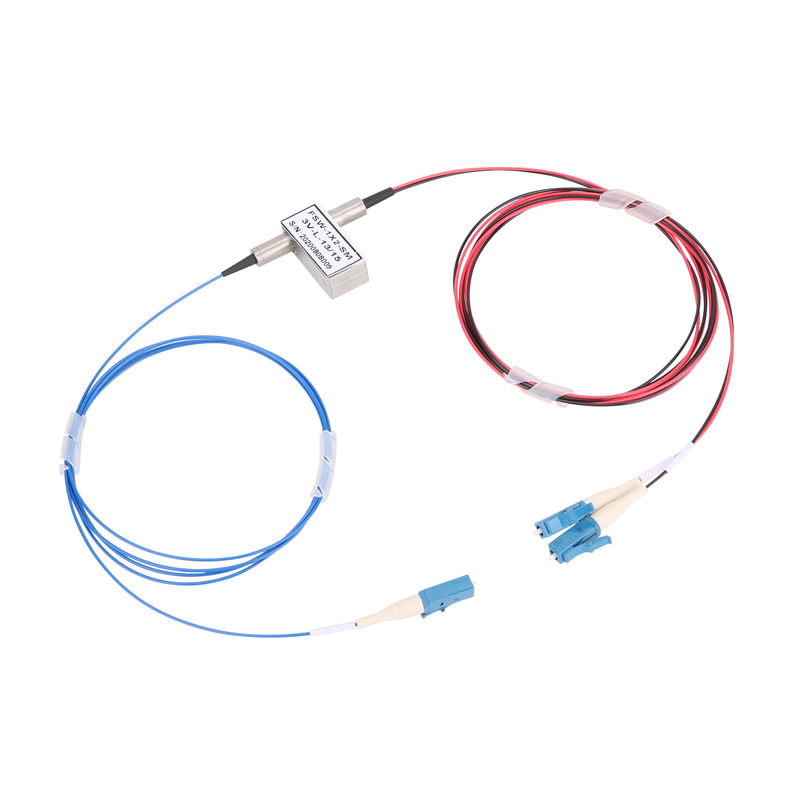

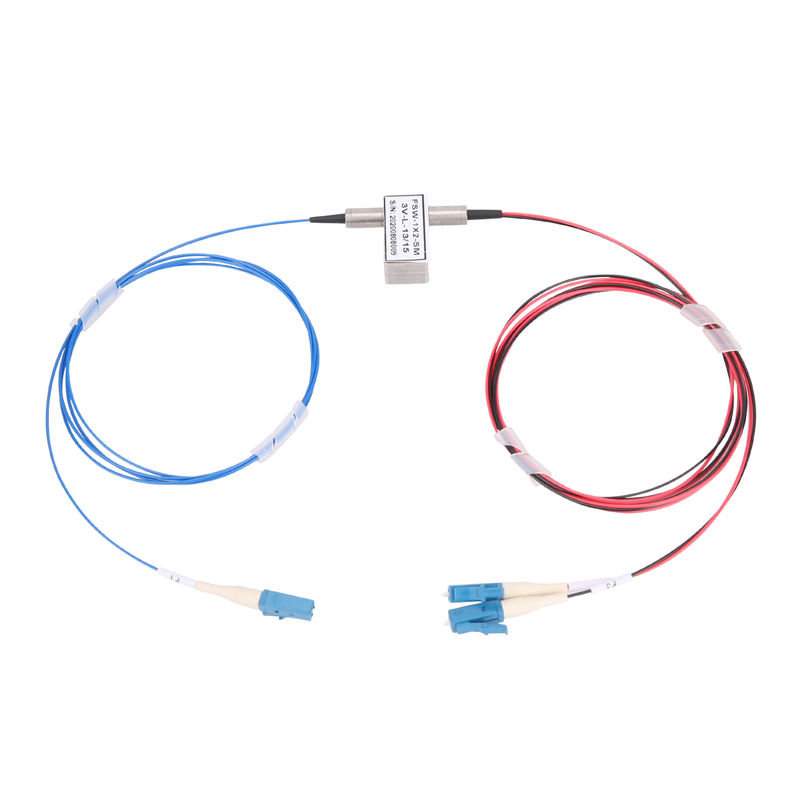

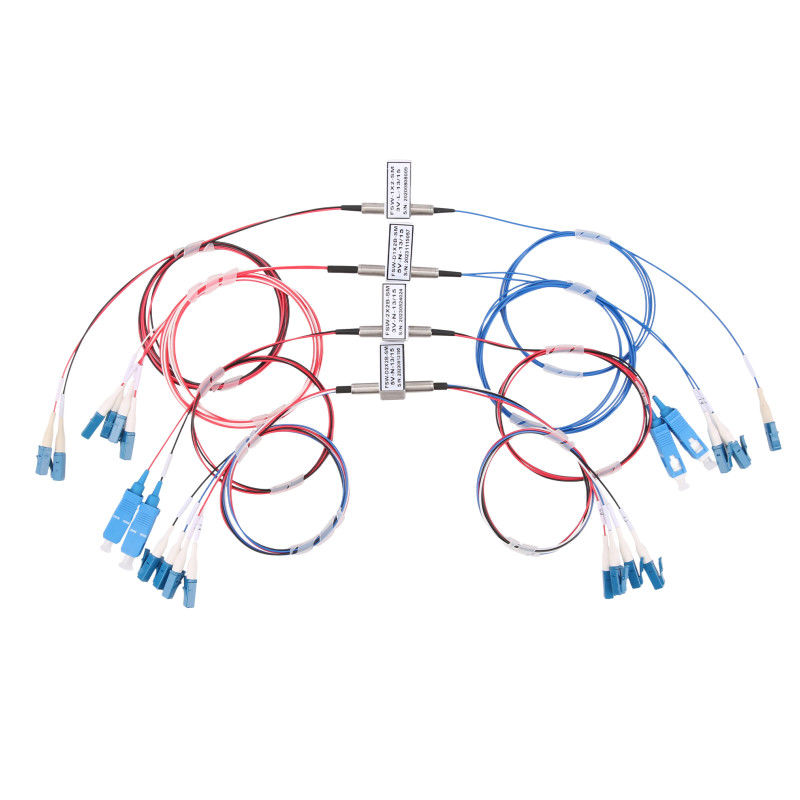

Name: Fast Responding 1x2 Mechanical Optical Switch Incorporating Fiber Optic Switch
Brand: Guangdong Huajiayu Technology Co., Ltd
SKU: HJY-FSW-5L-1-2-20-6
Price: Negotiable USD
Availability: InStock

Home > products > Optical Switch >

Fast Responding 1x2 Mechanical Optical Switch Incorporating Fiber Optic Switch

Fast Responding Optical Switch

1x2 Mechanical Optical Switch

Incorporating fiber optic switch

Place of Origin:

China

Brand Name:

HJY

Certification:

CE, ROHS, FCC ISO9001

Model Number:

HJY-FSW-5L-1-2-20-6

Request A Quote

Fast Responding 1x2 Mechanical Optical Switch Incorporating Fiber Optic Switch

Product Details

Switching Method:

Non-blocking

Repeatability:

≤ ±0.02dB

Fiber Type:

50/125 62.5/125 9/125

Control Type:

Non-latching Or Latching

Connector Type:

Customized

Highlight:

Fast Responding Optical Switch

1x2 Mechanical Optical Switch

Incorporating fiber optic switch

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

Please send inquiry to sales@huajiayu.com

Packaging Details

Neutrial Packing or with OEM LOGO

Delivery Time

3~7 working days

Payment Terms

T/T, Western Union, L/C

Supply Ability

100,000 pcs

500mW Optical Switch With Fast Switching Speed Sfp Fiber Switch

Get Best Price

320Gbps 1X1 Mechanical Optical Switch For Multiplex OADM Cross Connectors

Get Best Price

1x1 High Reliability Mechanical Optical Switch For Epoxy Free Optical Path

Get Best Price

High Isolation 1X1 Mechanical Optical Switch High Reliability For Optical Path

Get Best Price

8613556217949

francesgdut@gmail.com

Contact Now

Product Description

Ultra Reliable and Fast Responding 1x2 Mechanical Optical Switch Incorporating Patented Switching Mechanisms for Fiber Optic Systems

Discover our Ultra Reliable and Fast Responding 1x2 Mechanical Optical Switch, a game - changer for fiber optic systems. Engineered with patented switching mechanisms, it ensures lightning - fast response times, enabling seamless data transfer in high - speed fiber optic networks.

This switch is built to last, offering unrivaled reliability even in the most demanding conditions. Its robust construction resists vibrations and environmental factors, guaranteeing stable performance over an extended lifespan.

With a 1x2 configuration, it provides flexible signal routing options, making it suitable for various applications, from telecommunications to data center interconnects. Upgrade your fiber optic infrastructure with this innovative switch and experience enhanced efficiency and performance.

HJY' 1x2 Mechanical Optical Switch is not affected by the polarization and wavelength. It supports all wavelength at 850nm and 1260nm~1650nm, and it provides high reliability, low insertion loss, fast switching speed and bi-directional performance. They are widely used for multiplex OADM, cross connectors OXC, system testing and protection.

Product Parameters

Operating Wavelength	1260~1620nm(SM) / 850nm(MM)	Insertion Loss	≤1.0dB
Wavelength Dependent Loss	≤0.25dB	Polarization Dependent Loss	≤0.05dB
Temperature Dependent Loss	≤0.20dB	Return Loss	SM≥50dB / MM≥30dB
Cross Talk	SM≥55dB / MM≥35dB	Switch Time	≤8ms
Repeatability	≤±0.02dB	Durability	≥10 times
Operating Voltage	3 or 5V	Switch Type	Non-Latching/Latching
Operating Temperature	－20~＋70℃	Storage Temperature	－40~＋85℃
Optical Power	≤500mW	Dimension	27.0L×12.0W×8.2H mm

Pin Definition

Type	Pin	Electric Drive				Status sensor
1×2	channel	1	5	6	10	2-3	3-4	7-8	8-9
Latching	P1-P2	V+	GND	--	--	Open	Close	Close	Open
Latching	P1-P3	--	--	GND	V+	Close	Open	Open	Close
Non-latching	P1-P2	V+	--	--	GND	Open	Close	Close	Open
Non-latching	P1-P3	--	--	--	--	Close	Open	Open	Close

Optical Route

Status One	Status Two

Dimension

Electric

Specifications	Voltage	Current	Resistance
5V latching	4.5~5.5	36~44mA	125Ω
5V non-latching	4.5~5.5	26~32mA	175Ω
3V latching	2.7~3.3	54~66mA	50Ω

Ordering Information:

HJY- FSW	Wavelength	Operating Voltage	Fiber Type	Tube Type	Fiber Length	Connector	Package
FSW-	0850—850 1315—1310&1550	3L—3v, latching 5L—5v, latching 3N—3v, Non-latching 5N—5v, Non-latching	1—SM 2—MM 62.5/125	1—250um 2—900um	00—special 05—0.5m±5cm 10—1m±5cm 15—1.5m±5cm 20—2 m ……	0—NO 1—FC/PC 2—FC/APC 3—SC/PC 4—SC/APC 5—LC/PC 6—LC/APC 7—Other	Bare fiber=1 900um tube=3 Special＝0
