Name: Versatile 1x2 Mechanical Fiber Optic Ethernet Switch For Optical Networking Setups
Brand: Guangdong Huajiayu Technology Co., Ltd
SKU: HJY-FSW-5L-1-2-20-7
Price: Negotiable USD
Availability: InStock

Home > products > Optical Switch >

Versatile 1x2 Mechanical Fiber Optic Ethernet Switch For Optical Networking Setups

Versatile fiber optic ethernet switch

fiber optic ethernet switchfiber optic ethernet switch

optical network switch Customized

Place of Origin:

China

Brand Name:

HJY

Certification:

CE, ROHS, FCC ISO9001

Model Number:

HJY-FSW-5L-1-2-20-7

Request A Quote

Versatile 1x2 Mechanical Fiber Optic Ethernet Switch For Optical Networking Setups

Product Details

Switching Method:

Non-blocking

Repeatability:

≤ ±0.02dB

Fiber Type:

50/125 62.5/125 9/125

Control Type:

Non-latching Or Latching

Connector Type:

Customized

Highlight:

Versatile fiber optic ethernet switch

fiber optic ethernet switchfiber optic ethernet switch

optical network switch Customized

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

Please send inquiry to sales@huajiayu.com

Packaging Details

Neutrial Packing or with OEM LOGO

Delivery Time

3~7 working days

Payment Terms

T/T, Western Union, L/C

Supply Ability

100,000 pcs

500mW Optical Switch With Fast Switching Speed Sfp Fiber Switch

Get Best Price

320Gbps 1X1 Mechanical Optical Switch For Multiplex OADM Cross Connectors

Get Best Price

1x1 High Reliability Mechanical Optical Switch For Epoxy Free Optical Path

Get Best Price

High Isolation 1X1 Mechanical Optical Switch High Reliability For Optical Path

Get Best Price

8613556217949

francesgdut@gmail.com

Contact Now

Product Description

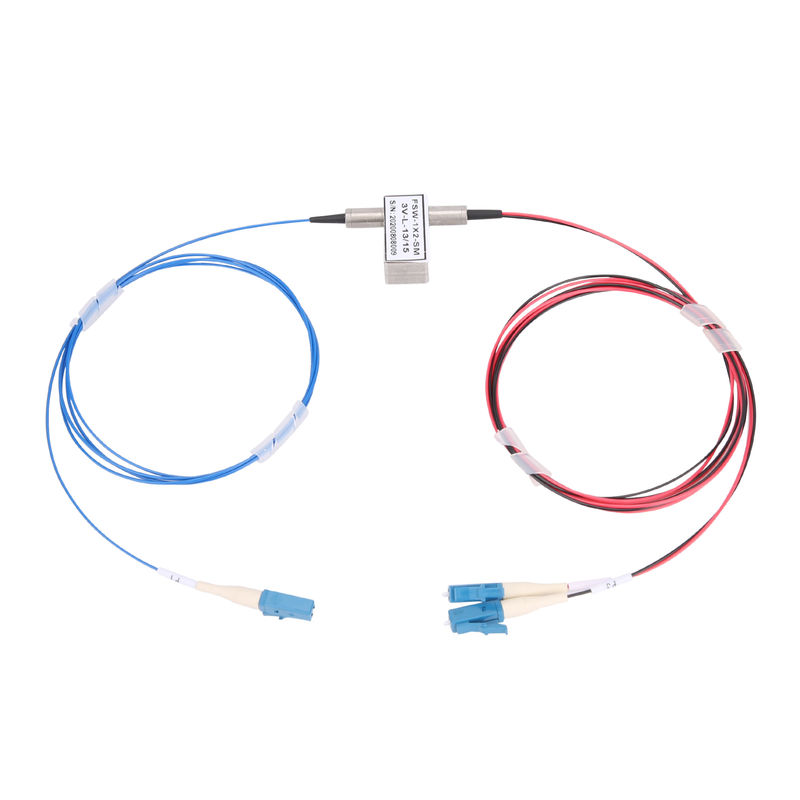

Versatile and Easy toIntegrate 1x2 Mechanical Optical Switch Designed with Plug and Play Compatibility for Optical Networking Setups

HJY's Versatile and Easy - to - Integrate 1x2 Mechanical Optical Switch, tailor - made for optical networking setups. Its plug - and - play compatibility is a game - changer, eliminating complex installation procedures. Whether you're a professional in a large - scale data center or an enthusiast in a small - scale network project, you can quickly get it up and running.

This switch's versatility shines through as it can adapt to different optical networking requirements. It offers seamless signal switching between two optical paths, ensuring smooth data transmission. Its compact design also makes it space - efficient, fitting neatly into various setups without taking up much room. Upgrade your optical network with this user - friendly and adaptable switch today.

HJY' 1x2 Mechanical Optical Switch is not affected by the polarization and wavelength. It supports all wavelength at 850nm and 1260nm~1650nm, and it provides high reliability, low insertion loss, fast switching speed and bi-directional performance. They are widely used for multiplex OADM, cross connectors OXC, system testing and protection.

Product Parameters

Operating Wavelength	1260~1620nm(SM) / 850nm(MM)	Insertion Loss	≤1.0dB
Wavelength Dependent Loss	≤0.25dB	Polarization Dependent Loss	≤0.05dB
Temperature Dependent Loss	≤0.20dB	Return Loss	SM≥50dB / MM≥30dB
Cross Talk	SM≥55dB / MM≥35dB	Switch Time	≤8ms
Repeatability	≤±0.02dB	Durability	≥10 times
Operating Voltage	3 or 5V	Switch Type	Non-Latching/Latching
Operating Temperature	－20~＋70℃	Storage Temperature	－40~＋85℃
Optical Power	≤500mW	Dimension	27.0L×12.0W×8.2H mm

Pin Definition

Type	Pin	Electric Drive				Status sensor
1×2	channel	1	5	6	10	2-3	3-4	7-8	8-9
Latching	P1-P2	V+	GND	--	--	Open	Close	Close	Open
Latching	P1-P3	--	--	GND	V+	Close	Open	Open	Close
Non-latching	P1-P2	V+	--	--	GND	Open	Close	Close	Open
Non-latching	P1-P3	--	--	--	--	Close	Open	Open	Close

Optical Route

Status One	Status Two

Dimension

Electric

Specifications	Voltage	Current	Resistance
5V latching	4.5~5.5	36~44mA	125Ω
5V non-latching	4.5~5.5	26~32mA	175Ω
3V latching	2.7~3.3	54~66mA	50Ω

Ordering Information:

HJY- FSW	Wavelength	Operating Voltage	Fiber Type	Tube Type	Fiber Length	Connector	Package
FSW-	0850—850 1315—1310&1550	3L—3v, latching 5L—5v, latching 3N—3v, Non-latching 5N—5v, Non-latching	1—SM 2—MM 62.5/125	1—250um 2—900um	00—special 05—0.5m±5cm 10—1m±5cm 15—1.5m±5cm 20—2 m ……	0—NO 1—FC/PC 2—FC/APC 3—SC/PC 4—SC/APC 5—LC/PC 6—LC/APC 7—Other	Bare fiber=1 900um tube=3 Special＝0
