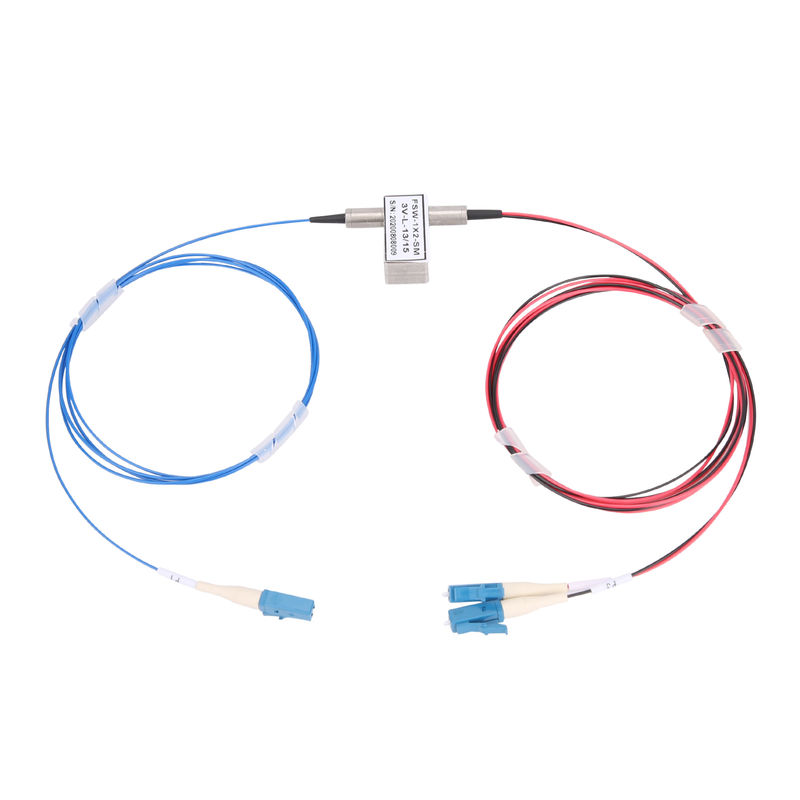

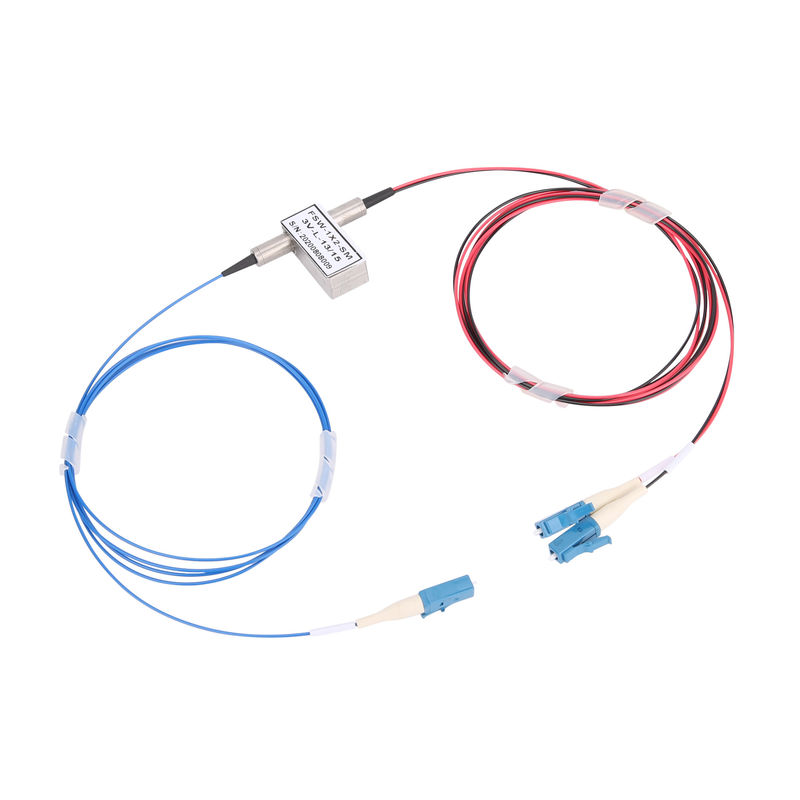

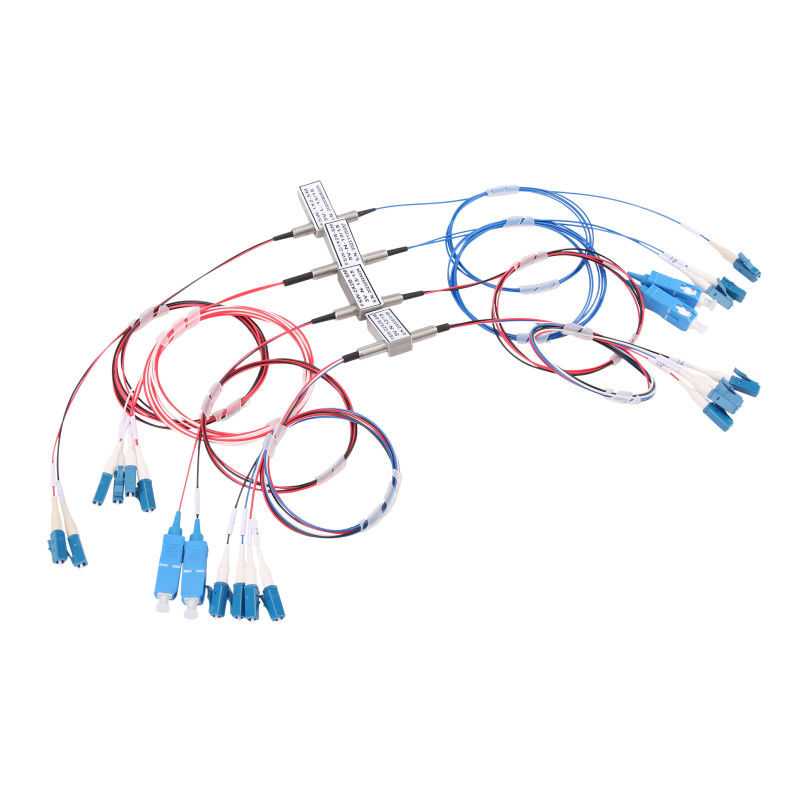

Name: Ultra Low Loss 1x2 Mechanical Optical Switch 8ms Fast Switching 10M Cycle Fiber Switch
Brand: Guangdong Huajiayu Technology Co., Ltd
SKU: HJY-FSW-5L-1-2-20-7
Price: Negotiable USD
Availability: InStock

Home > products > Optical Switch >

Ultra Low Loss 1x2 Mechanical Optical Switch 8ms Fast Switching 10M Cycle Fiber Switch

Low Loss Optical Switch

Optical Switch 8ms

10M Cycle fiber switch

Place of Origin:

China

Brand Name:

HJY

Certification:

CE, ROHS, FCC ISO9001

Model Number:

HJY-FSW-5L-1-2-20-7

Request A Quote

Ultra Low Loss 1x2 Mechanical Optical Switch 8ms Fast Switching 10M Cycle Fiber Switch

Product Details

Wavelength Range:

850±40 / 1300±40; 1260 ~ 1650

Operating Voltage:

Latching / Non-Latching

Dimension:

( L )39x(W)9x(H)9.5±0.2mm

Switching Time:

8ms

Fiber Configurations:

1x2

Insertion Loss:

<0.5dB

Highlight:

Low Loss Optical Switch

Optical Switch 8ms

10M Cycle fiber switch

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

Please send inquiry to sales@huajiayu.com

Packaging Details

HUAJIAYU LOGO, Neutrial Packing or with OEM LOGO

Delivery Time

3~7 working days

Payment Terms

T/T, Western Union, L/C

Supply Ability

100,000 pcs

500mW Optical Switch With Fast Switching Speed Sfp Fiber Switch

Get Best Price

320Gbps 1X1 Mechanical Optical Switch For Multiplex OADM Cross Connectors

Get Best Price

1x1 High Reliability Mechanical Optical Switch For Epoxy Free Optical Path

Get Best Price

High Isolation 1X1 Mechanical Optical Switch High Reliability For Optical Path

Get Best Price

8613556217949

francesgdut@gmail.com

Contact Now

Product Description

Ultra Low Loss 1x2 Mechanical Optical Switch 8ms Fast Switching 10M Cycle Durability Telcordia-Certified for OADM Network Protection

Enhance your OADM network protection and optical signal routing with the **Ultra Low Loss 1x2 Mechanical Optical Switch**, engineered for high-performance reliability in demanding telecom environments. This Telcordia-certified switch ensures seamless network operation with ultra-low insertion loss (<0.5dB) and fast 8ms switching speeds, minimizing downtime and preserving signal integrity during critical rerouting scenarios. Built for longevity, it boasts a 10-million-cycle mechanical durability, reducing maintenance costs and ensuring stable performance over extended periods.

Ideal for optical add-drop multiplexing (OADM), fiber sensing, and network redundancy systems, this 1x2 mechanical optical switch operates flawlessly across a wide temperature range and complies with stringent Telcordia GR-1209/1221 standards. Its rugged design guarantees resilience in harsh conditions, while the compact form factor simplifies integration into existing infrastructure.

Optimized for Google search visibility, this product combines keywords like "low-loss optical switch," "OADM network protection," and "Telcordia-certified" to align with industry needs. Elevate your network efficiency and reliability with a switch trusted by global telecom providers for mission-critical applications.

HJY' 1x2 Mechanical Optical Switch is not affected by the polarization and wavelength. It supports all wavelength at 850nm and 1260nm~1650nm, and it provides high reliability, low insertion loss, fast switching speed and bi-directional performance. They are widely used for multiplex OADM, cross connectors OXC, system testing and protection.

Product Parameters

Operating Wavelength	1260~1620nm(SM) / 850nm(MM)	Insertion Loss	≤1.0dB
Wavelength Dependent Loss	≤0.25dB	Polarization Dependent Loss	≤0.05dB
Temperature Dependent Loss	≤0.20dB	Return Loss	SM≥50dB / MM≥30dB
Cross Talk	SM≥55dB / MM≥35dB	Switch Time	≤8ms
Repeatability	≤±0.02dB	Durability	≥10 times
Operating Voltage	3 or 5V	Switch Type	Non-Latching/Latching
Operating Temperature	－20~＋70℃	Storage Temperature	－40~＋85℃
Optical Power	≤500mW	Dimension	27.0L×12.0W×8.2H mm

Pin Definition

Type	Pin	Electric Drive				Status sensor
1×2	channel	1	5	6	10	2-3	3-4	7-8	8-9
Latching	P1-P2	V+	GND	--	--	Open	Close	Close	Open
Latching	P1-P3	--	--	GND	V+	Close	Open	Open	Close
Non-latching	P1-P2	V+	--	--	GND	Open	Close	Close	Open
Non-latching	P1-P3	--	--	--	--	Close	Open	Open	Close

Optical Route

Status One	Status Two

Dimension

Electric

Specifications	Voltage	Current	Resistance
5V latching	4.5~5.5	36~44mA	125Ω
5V non-latching	4.5~5.5	26~32mA	175Ω
3V latching	2.7~3.3	54~66mA	50Ω

Ordering Information:

HJY- FSW	Wavelength	Operating Voltage	Fiber Type	Tube Type	Fiber Length	Connector	Package
FSW-	0850—850 1315—1310&1550	3L—3v, latching 5L—5v, latching 3N—3v, Non-latching 5N—5v, Non-latching	1—SM 2—MM 62.5/125	1—250um 2—900um	00—special 05—0.5m±5cm 10—1m±5cm 15—1.5m±5cm 20—2 m ……	0—NO 1—FC/PC 2—FC/APC 3—SC/PC 4—SC/APC 5—LC/PC 6—LC/APC 7—Other	Bare fiber=1 900um tube=3 Special＝0
