50Ohm 100GHZ AWG Module DWDM AAWG MODULE For Optical Networking

50Ohm AWG Module

100GHZ AWG Module

Optical Networking DWDM AAWG MODULE

Place of Origin:

China

Brand Name:

HJY

Certification:

CE, ROHS, FCC ISO9001

Model Number:

AWG-40/48

Request A Quote

50Ohm 100GHZ AWG Module DWDM AAWG MODULE For Optical Networking

Product Details

Output Amplitude Range:

-6 DBm To +10 DBm

Frequency Range:

1 MHz To 20 GHz

Output Flatness:

±0.5 DB

Output Accuracy:

±0.2 DB

Sampling Rate:

65 GSa/s

Output Impedance:

50 Ohm

Resolution:

14 Bits

Highlight:

50Ohm AWG Module

100GHZ AWG Module

Optical Networking DWDM AAWG MODULE

Payment & Shipping Terms

Minimum Order Quantity

10 pcs

Price

1~999

Packaging Details

Roll, Neutrial Packing or with OEM LOGO

Delivery Time

5~8 working days

Payment Terms

T/T, Western Union, L/C

Supply Ability

100,000 pcs

Dual Fiber 40CH AWG Module AAWG C21 To C60 DWDM MUX DEMUX 1310nm With Monitor

Get Best Price

100GHz AWG Module Athermal Module DWDM AAWG ITU Compliant for DWDM Networks

Get Best Price

High Density AWG Module Compact DWDM AAWG Module 1U Rack Mount SMF 28e Fiber

Get Best Price

Flat Top Gaussian AWG Module 100GHz AAWG DWDM 40CH 48CH Module 300mW For ROADM Systems

Get Best Price

8613556217949

francesgdut@gmail.com

Contact Now

Product Description

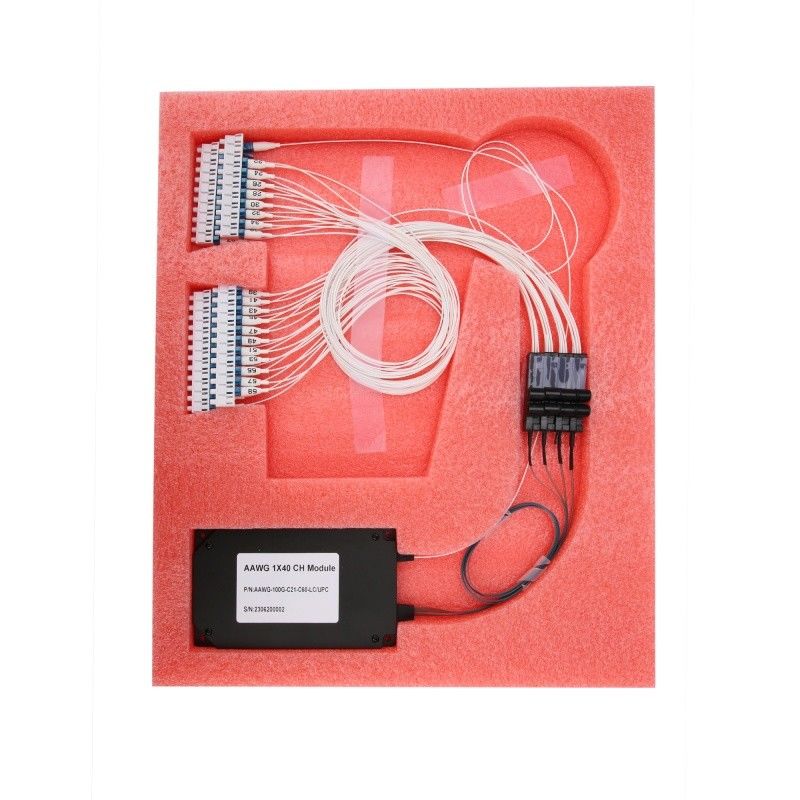

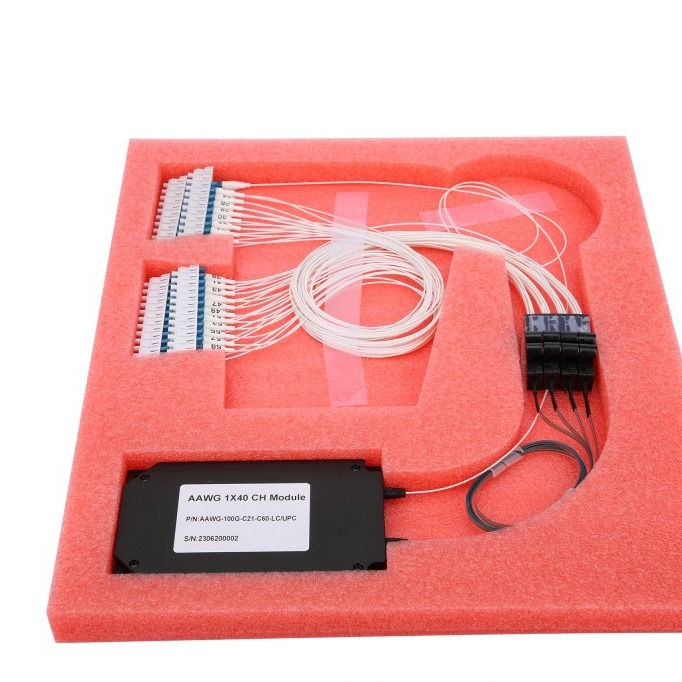

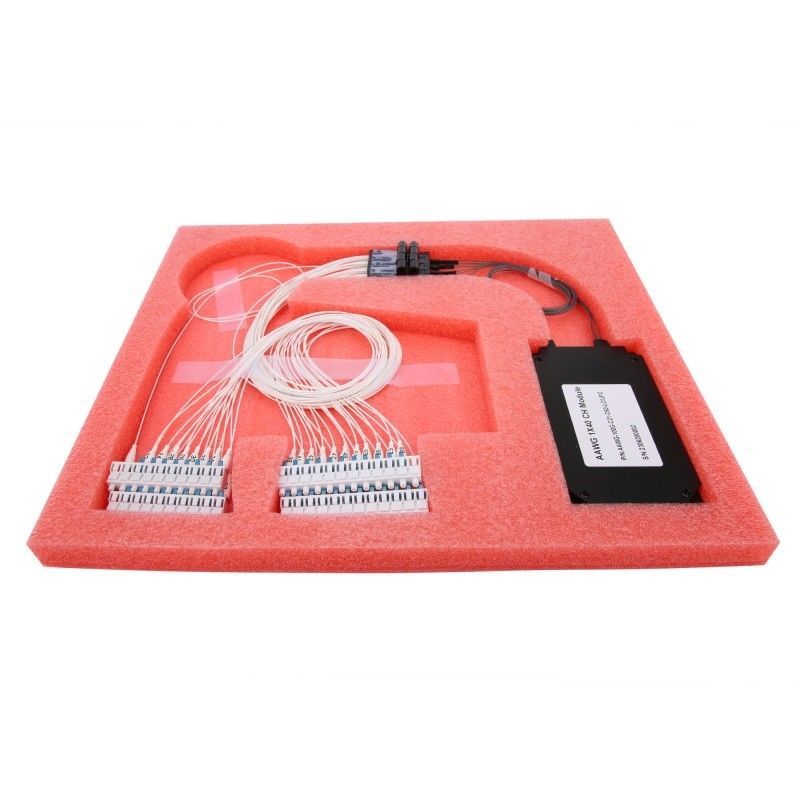

Advanced 100GHZ DWDM AAWG 40/48CH MODULE for Optical Networking

HJY’ s Wavelength Division Multiplexer (WDM) is based on AWG technology. This proven technology offers wide channel bandwidth, flexible channel configuration, low insertion loss, and high isolation. This DWDM series modules are passive optical multiplexer/demultiplexer designed for metro access applications that represent the state of the art in fiber optics design. This Mux/Demux module multiplexes and demultiplexes multiple DWDM wavelengths of 100GHz channel spacing into a ring or point-to-point network, ideal for telecommunications and networking.

HJY’s Dense Wavelength Division Mux/Demultiplexer Athermal Arrayed Waveguide Grating(AAWG) Modules are part of a series of high performance products based on silica-on-silicon planar technology and a unique athermal packaging design requiring no electrical power, software or temperature control for a completely passive DWDM solution. This product range offers a combination of very low loss and high channel isolation along with long term reliability .Each module can perform Mux and Demux functions. Both C- and L-band devices are available with flat top spectral response. Custom frequency grids, fiber types and connector options are also available

Features	Applications
• Low insertion loss • High isolation • Low PDL • Compact design • Good channel-to-channel uniformity • Wide operating wavelength • Wide operating temperature: -20 to70℃	• DWDM system • PON networks • CATV links • Fiber optical amplifier • Wavelength routing

Product Parameters

Parameter			Unit	Specifications
ITU Band			GHz	ITU, C-band
Channel Spacing			GHz	100
Number of channels				40CH	48CH
Wavelength accuracy		Max	nm	0.05
Insertion Loss	Waves	Max	dB	3.5	4.0
-1dB passband		Min	nm	0.3
-3dB passband		Min	nm	0.5
Isolation	Adjacent Channel	Min	dB	25
	Non-adjacent Channel	Min	dB	30
Total Crosstalk		Min	dB	23
Ripple in Passband		Max	dB	0.75
Polarization Dependent Loss		Max	dB	0.5
Uniformity		Max	dB	1.5
Directivity		Min	dB	50
Return Loss		Min	dB	45
Polarization Mode Dispersion		Max	ps	0.5
Power Handling		Max	mW	300
Fiber Type				Corning SMF-28 / SMF-28e or customize
Operating Temperature			°C	5~70
Storage Temperature			°C	-40~85
Package		Weight		0.5kg
		Dimensions	mm	(L)120×(W)70×(H)12.7

Note: 2>Specified with connectors.

Mechanical Drawings:

The packaged size is 120mm X 70mm X 10mm for Mux/Demux.
