Place of Origin:
China
Brand Name:
HJY
Certification:
CE ROHS FCC
Model Number:

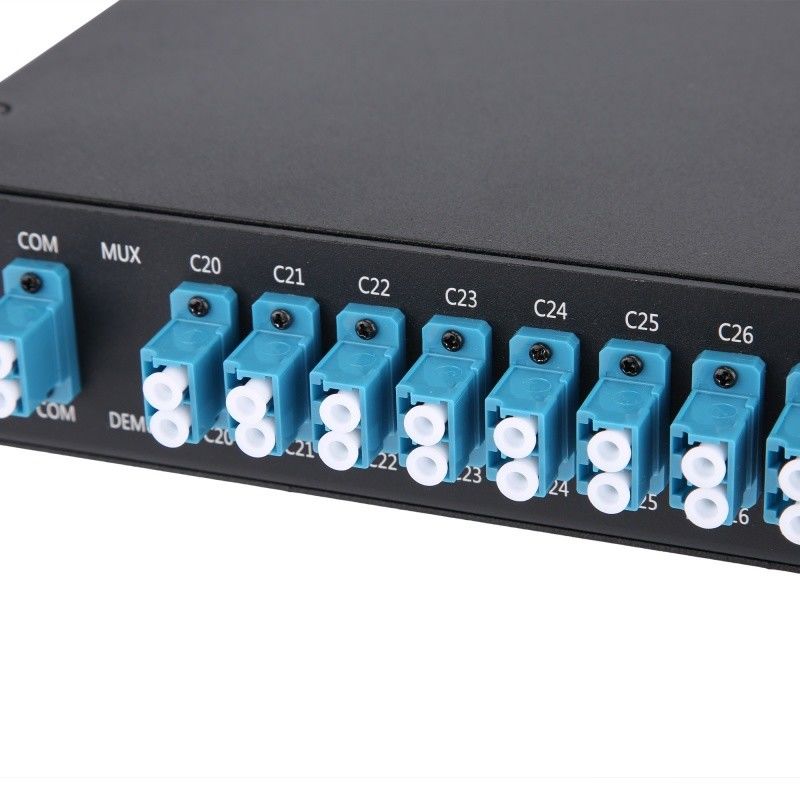

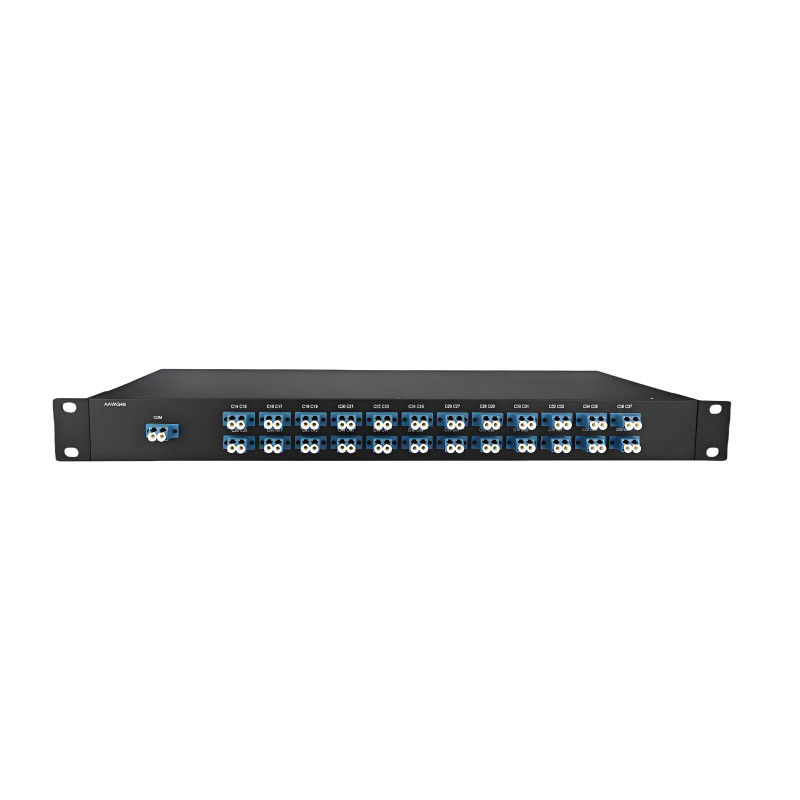

HJY-AAWG-40/48-19INCH
|
Parameters
|
Min
|
Typical
|
Max
|
Unit
|
|
|
Operation Wavelength
|
DWDM channels
|
|
|||
|
Insertion Loss – passband *
|
Gaussian
|
|
≤ 4.0
|
|
dB
|
|
Flat top
|
|
≤ 5.0
|
|
||
|
Channel Bandwidth
|
|
± 0.11
|
|
nm
|
|
|
Uniformity
|
|
≤ 1.0
|
|
dB
|
|
|
Isolation @Add/Drop Channel Durability
|
Adjacent
|
|
≥ 30
|
|
dB
|
|
Non-adjacent
|
|
≥ 40
|
|
||
|
PDL
|
|
≤ 0.5
|
|
dB
|
|
|
PMD
|
|
≤ 0.5
|
|
ps
|
|
|
Directivity
|
|
≥ 50
|
|
dB
|
|
|
Return Loss
|
|
≥ 45
|
|
dB
|
|
|
Power Handling
|
|
300
|
|
mW
|
|
|
Operating Temperature
|
0
|
|
+70
|
°C
|
|
|
Storage Temperature
|
-40
|
|
+85
|
°C
|
|
|
Operating Wavelength
|
1525nm-1570nm (C-band)
|
Number of Channels
|
40 Channels
|
|
Channel Spacing
|
100GHz(0.8nm)
|
Channel Wavelength
|
C21 – C60 or Specify
|
|
Center Wavelength Bandwidth
|
±12.5GHz
|
Center Wavelength Accuracy
|
±0.05nm
|
|
-1dB Bandwidth
|
Guassian: ≥0.22dB, Flat-top: ≥0.4dB
|
-3dB Bandwidth
|
Guassian: ≥0.42dB, Flat-top: ≥0.55dB
|
|
-20dB Bandwidth
|
Guassian: ≤1.2dB, Flat-top: ≤1.2dB
|
Pass band Insertion Loss
|
Guassian: ≤4.0dB, Flat-top: ≤5.0dB
|
|
Total Cross Talk
|
≥22dB
|
Insertion Loss Uniformity
|
≤1.5dB
|
|
Adjacent Isolation
|
≥25dB
|
Non-Adjacent Isolation
|
≥30dB
|
|
Passband Ripple
|
≤0.7dB
|
1310nm Port Pass Band Width
|
1260nm~1360nm
|
|
Insertion Loss @ 1% Mon
|
≤26dB
|
Insertion Loss @1310 port
|
≤1.5dB
|
|
Polarization Dependent Loss
|
≤0.5dB
|
Polarization Mode Dispersion
|
≤0.1ps
|
|
Return Loss
|
≥45dB
|
Directivity
|
≥50dB
|
|
Chromatic Dispersion(ps/nm)
|
-20 – +20
|
Max Optical Power
|
300mW
|
|
Operating Temperature(℃)
|
-5 to 65°C
|
Storage Temperature(℃)
|
-40 to 85°C
|
|
Prefi
|
Ch. Spacin
|
Number of Channel
|
Type
|
1st ITU Channel Number *
(for example)
|
Configuration
|
Monitor
|
Connector
|
|
AAWG-
|
100G = 1
|
40 Channel = 40
|
Flat top = 1
Gaussian = 2 |
1560.61nm = 21
1588.98nm = 23 |
MUX or DEMUX=1
MUX+DEMUX=2 |
NO monitor port = 1
With monitor port = 2 Special = 0 |
LC/UPC = 8
Special = 0 |
