High Density AWG Module Compact DWDM AAWG Module 1U Rack Mount SMF 28e Fiber

High Density AWG Module

Compact AWG Module

DWDM AAWG Module 1U

Place of Origin:

China

Brand Name:

HJY

Certification:

CE, ROHS, FCC ISO9001

Model Number:

HJY-AWG-40/48-2

Request A Quote

High Density AWG Module Compact DWDM AAWG Module 1U Rack Mount SMF 28e Fiber

Product Details

Output Amplitude Range:

-6 DBm To +10 DBm

Frequency Range:

1 MHz To 20 GHz

Output Flatness:

±0.5 DB

Output Accuracy:

±0.2 DB

Sampling Rate:

65 GSa/s

Output Impedance:

50 Ohm

Resolution:

14 Bits

Highlight:

High Density AWG Module

Compact AWG Module

DWDM AAWG Module 1U

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

1~999

Packaging Details

HJY Brand, Neutrial Packing or with OEM LOGO

Delivery Time

3~7 working days

Payment Terms

T/T, Western Union, L/C

Supply Ability

100,000 pcs

Dual Fiber 40CH AWG Module AAWG C21 To C60 DWDM MUX DEMUX 1310nm With Monitor

Get Best Price

100GHz AWG Module Athermal Module DWDM AAWG ITU Compliant for DWDM Networks

Get Best Price

High Density AWG Module Compact DWDM AAWG Module 1U Rack Mount SMF 28e Fiber

Get Best Price

Flat Top Gaussian AWG Module 100GHz AAWG DWDM 40CH 48CH Module 300mW For ROADM Systems

Get Best Price

8613556217949

francesgdut@gmail.com

Contact Now

Product Description

High Density 40 or 48CH 100GHz DWDM AAWG Module Compact 1U Rack Mount SMF 28e Fiber for Long Haul Transmission

Our High Density 40 or 48CH 100GHz DWDM AAWG Module is a game - changer for long - haul transmission. Housed in a compact 1U rack - mount design, it maximizes space utilization in your network infrastructure. Compatible with SMF 28e fiber, it ensures high - quality, low - loss signal transmission over extended distances. Each of the 40 or 48 channels operates at 100GHz, enabling efficient multiplexing and demultiplexing of optical signals. Ideal for high - traffic networks, it delivers reliable performance and seamless integration into existing setups, powering long - haul communication with ease.

HJY’ s Wavelength Division Multiplexer (WDM) is based on AWG technology. This proven technology offers wide channel bandwidth, flexible channel configuration, low insertion loss, and high isolation. This DWDM series modules are passive optical multiplexer/demultiplexer designed for metro access applications that represent the state of the art in fiber optics design. This Mux/Demux module multiplexes and demultiplexes multiple DWDM wavelengths of 100GHz channel spacing into a ring or point-to-point network, ideal for telecommunications and networking.

HJY’s Dense Wavelength Division Mux/Demultiplexer Athermal Arrayed Waveguide Grating(AAWG) Modules are part of a series of high performance products based on silica-on-silicon planar technology and a unique athermal packaging design requiring no electrical power, software or temperature control for a completely passive DWDM solution. This product range offers a combination of very low loss and high channel isolation along with long term reliability .Each module can perform Mux and Demux functions. Both C- and L-band devices are available with flat top spectral response. Custom frequency grids, fiber types and connector options are also available

Features	Applications
• Low insertion loss • High isolation • Low PDL • Compact design • Good channel-to-channel uniformity • Wide operating wavelength • Wide operating temperature: -20 to70℃	• DWDM system • PON networks • CATV links • Fiber optical amplifier • Wavelength routing

Product Parameters

Parameter			Unit	Specifications
ITU Band			GHz	ITU, C-band
Channel Spacing			GHz	100
Number of channels				40CH	48CH
Wavelength accuracy		Max	nm	0.05
Insertion Loss	Waves	Max	dB	3.5	4.0
-1dB passband		Min	nm	0.3
-3dB passband		Min	nm	0.5
Isolation	Adjacent Channel	Min	dB	25
	Non-adjacent Channel	Min	dB	30
Total Crosstalk		Min	dB	23
Ripple in Passband		Max	dB	0.75
Polarization Dependent Loss		Max	dB	0.5
Uniformity		Max	dB	1.5
Directivity		Min	dB	50
Return Loss		Min	dB	45
Polarization Mode Dispersion		Max	ps	0.5
Power Handling		Max	mW	300
Fiber Type				Corning SMF-28 / SMF-28e or customize
Operating Temperature			°C	5~70
Storage Temperature			°C	-40~85
Package		Weight		0.5kg
		Dimensions	mm	(L)120×(W)70×(H)12.7

Note: 2>Specified with connectors.

Mechanical Drawings:

The packaged size is 120mm X 70mm X 10mm for Mux/Demux.

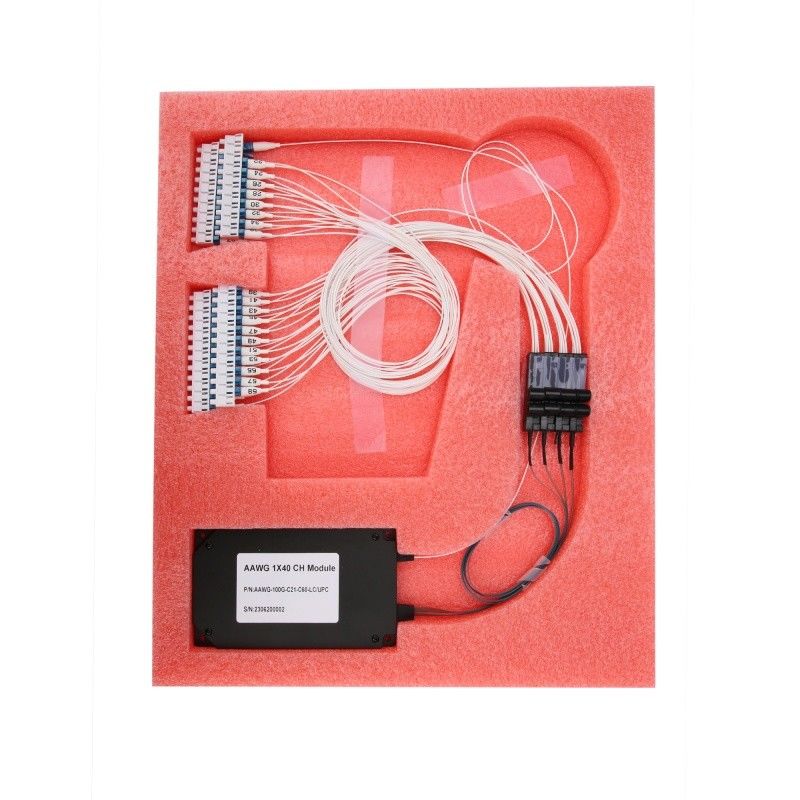

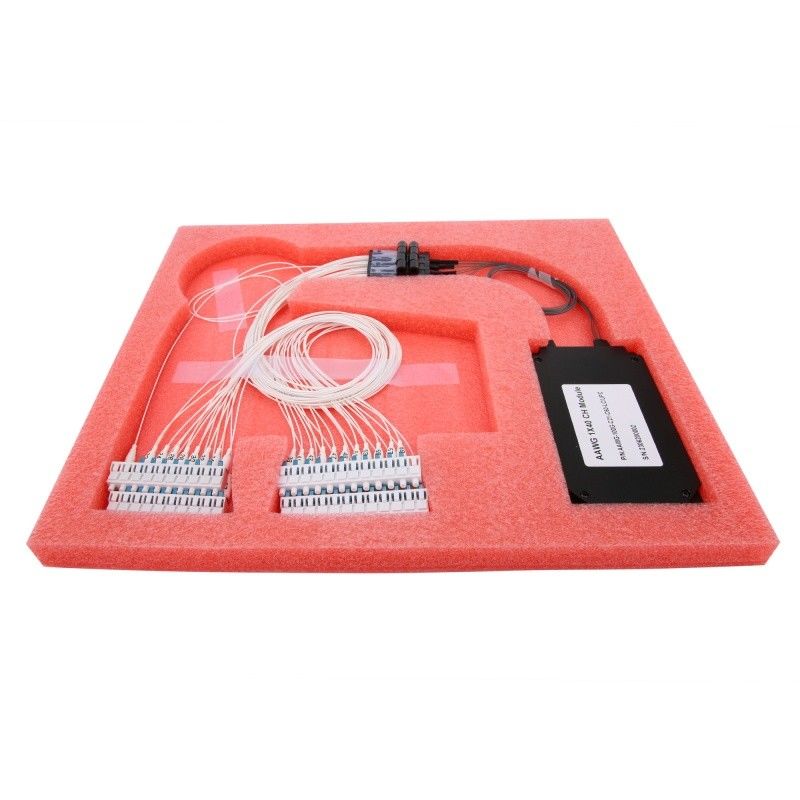

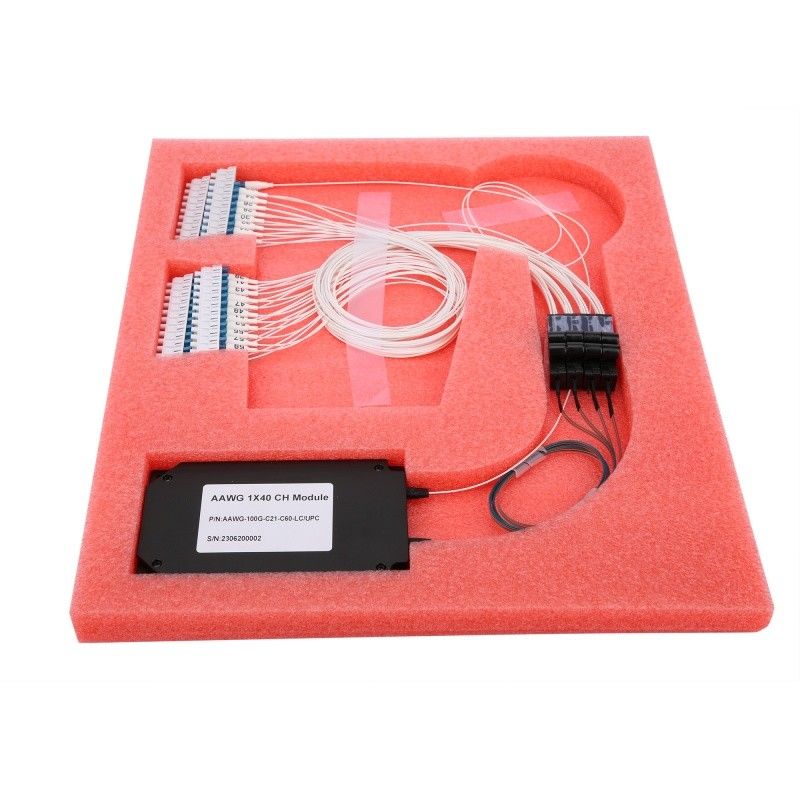

High Density AWG Module Compact DWDM AAWG Module 1U Rack Mount SMF 28e Fiber 0

High Density AWG Module Compact DWDM AAWG Module 1U Rack Mount SMF 28e Fiber 3

High Density AWG Module Compact DWDM AAWG Module 1U Rack Mount SMF 28e Fiber 4

High Density AWG Module Compact DWDM AAWG Module 1U Rack Mount SMF 28e Fiber 5

High Density AWG Module Compact DWDM AAWG Module 1U Rack Mount SMF 28e Fiber 6
